118
Type 8692, 8693
english
Start-up, operation
process controller Type 8693
OUT ANALOG - Configuration of the analogue output
Only for the versions:
one analogue output•
one analogue output and two binary outputs•
The feedback of the current position (POS), the position set-point value (CMD), the process actual value (PV) or the process
set-point value (SP) can be transmitted to the control centre via the analogue output.
SELEC
Out POS
EXIT
OUT type
Output of the current position
OUT ANALOG
ENTER
Out CMD
Out PV
Out SP
ENTER
Output of the position set-point value
Output of the process actual value
Output of the process set-point value
SELEC
4 - 20 mA
Selection of
the unit signal
EXIT
0 - 20 mA
0 - 10 V
0 - 5 V

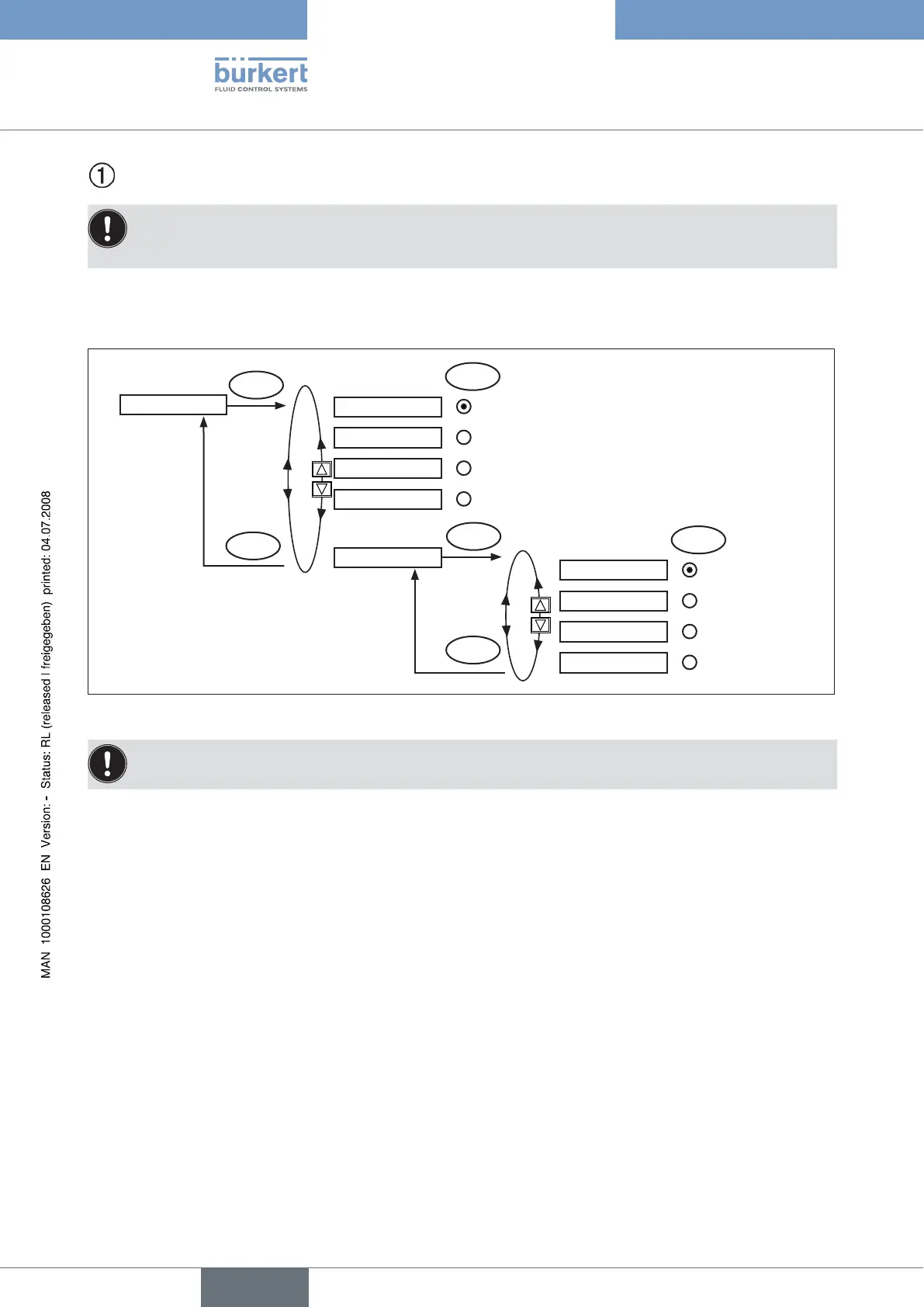

Fig. 27: Operating structure OUTPUT-ANALOGUE-8693
Changed values are not transferred into the memory (EEPROM) until the main menu (MAIN) is left.
