Start-up, operation
process controller Type 8693
OUT BIN1 - Configuration of the binary output 1
OUT BIN2 - Configuration of the binary output 2
Only for the versions:
one analogue output and two binary outputs•
two binary outputs•
The following description applies to both binary outputs OUT BIN 1 and OUT BIN 2.
The binary outputs 1 and 2 can be used for one of the following outputs:
Alarm output for excessively large control deviations of the position controller•
for the output of the current position with respect to a specified limit position (> or <)•
for the output: actuator in safety position•
for the output: sensor break process set-point value ***•
for the output: sensor break process actual value ***•
for the output: operating state MANUAL / AUTOMATIC.•
SELEC
OUT DEV.X
EXIT
Lim. DEV.X 1.0%
Selection: Alarm output for excessively large control deviation
of the position controller
OUT BIN 1
ENTER
OUT POS
Output: current position with respect to a specified limit position
OUT Safepos
Output: drive in safety position
OUT ERR PV
Output: sensor break process actual value
INPUT
+
-
Lim. DEV.X: 1.0
OK
*
Input the limit value for the
permitted control deviation
Adjustment range: 1 ... 50 %**
Lim. POS 0%
INPUT
+
-
Lim. POS: 0
OK
*
Input the limit position
Adjustment range: 0 ... 100 %
OUT BIN 1 type
ENTER
SELEC
normally opened
Selection of
switching signal
EXIT
normally closed
OUT BIN 2
OUT BIN 2 type
OUT remote
Output: operating state MANUAL / AUTOMATIC
OUT ERRSP/CMD
Output: sensor break process set-point value

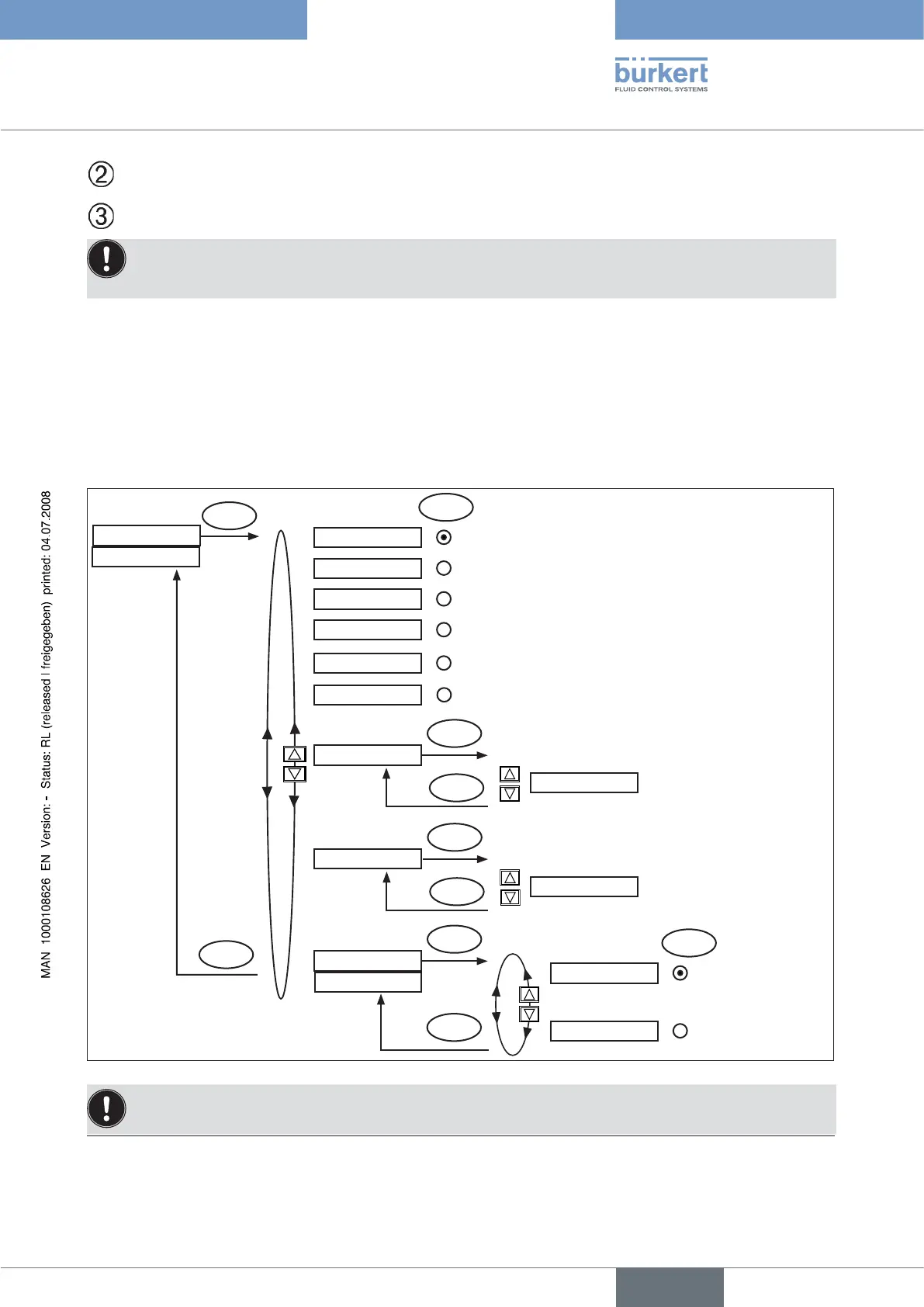

Fig. 28: Operating structure OUTPUT-BIN1-8693
Normally closed output, in switched state low (≅ 0 V)
Normally opened output, in switched state high (≅ 24 V)
* If the sub-menu is left by pressing the selection key on the left (ESC), the value remains unchanged.
** The permitted control deviation Lim DEV.X XX must not be less than the dead band.
*** only possible if signal level fault detection activated (see chapter entitled "SIG-ERROR")
