72
Type 8692, 8693
english
Start-up, operation
position controller Type 8692
4.3.3 DIR.CMD
Effective sense of direction of the position controller set-point value
Use this auxiliary function to set the effective sense of direction between the input signal (INPUT) and the nominal position
(CMD) of the actuator.
Factory setting: Rise
DIR.CMD
ENTER
SELEC
Rise
EXIT
Fall
Direct effective direction
(e.g. 4 mA or 0 V → 0 %,
20 mA or 5/10 V → 100%)
Inverse effective direction
(e.g. 4 mA or 0 V → 100%,
20 mA or 5/10 V → 0%)

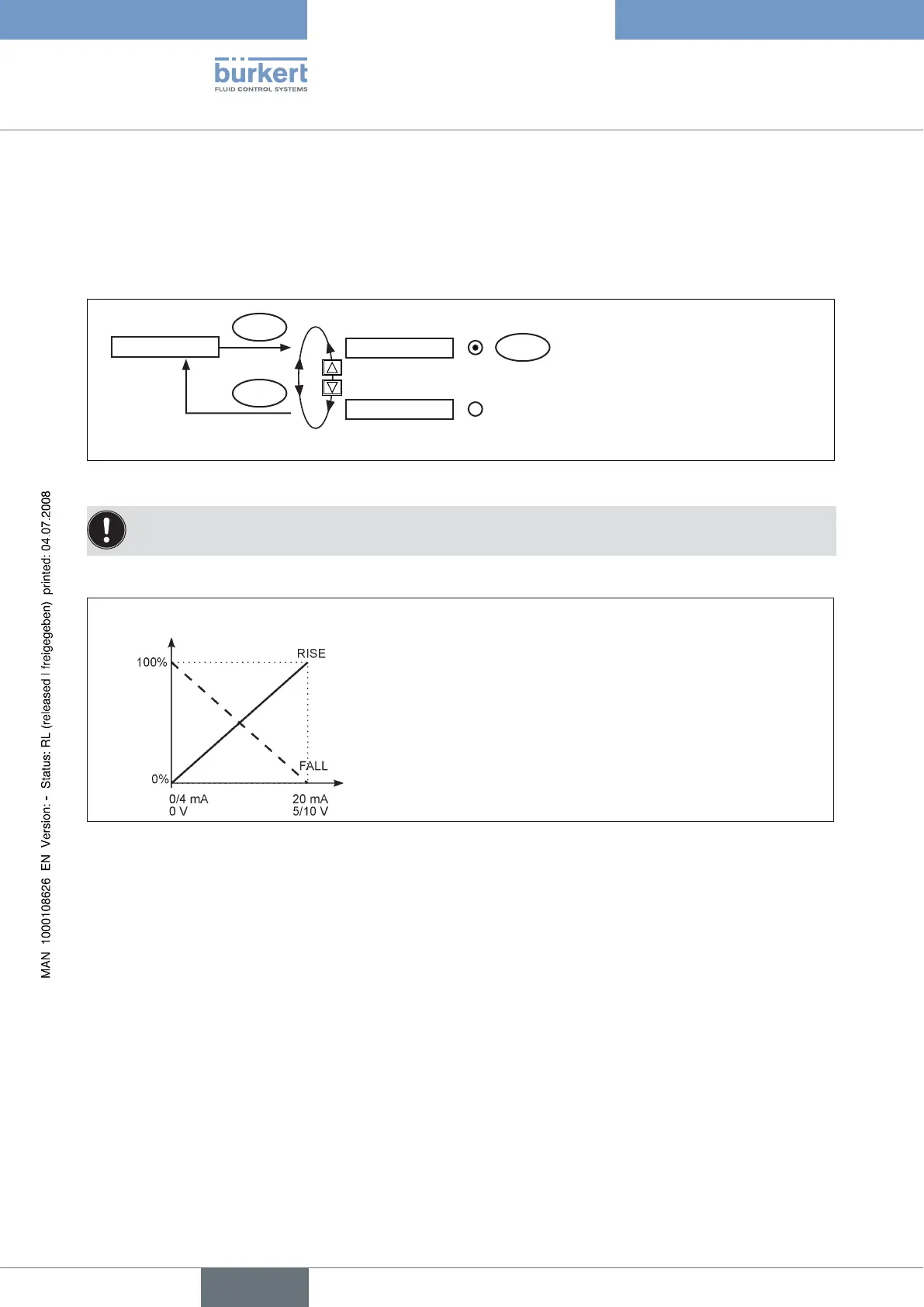

Fig. 17: Operating structure DIR.CMD
Changed values are not transferred into the memory (EEPROM) until the main menu (MAIN) is left.
Nominal position
(CMD)
Input signal
(INPUT)
Fig. 18: Graph DIR.CMD
