Type 8692, 8693
english
Start-up, operation
position controller Type 8692
4.3.4 DIR.ACT
Effective sense of direction of the actuator
Use this auxiliary function to set the effective sense of direction between the aeration state of the actuator and the actual posi-
tion (POS).
Factory setting: Rise
DIR.ACT
ENTER
SELEC
Rise
EXIT
Fall
Direct effective direction
(deaerated → 0 %; aerated 100 %)
Inverse effective direction
(deaerated → 100 %; aerated 0 %)

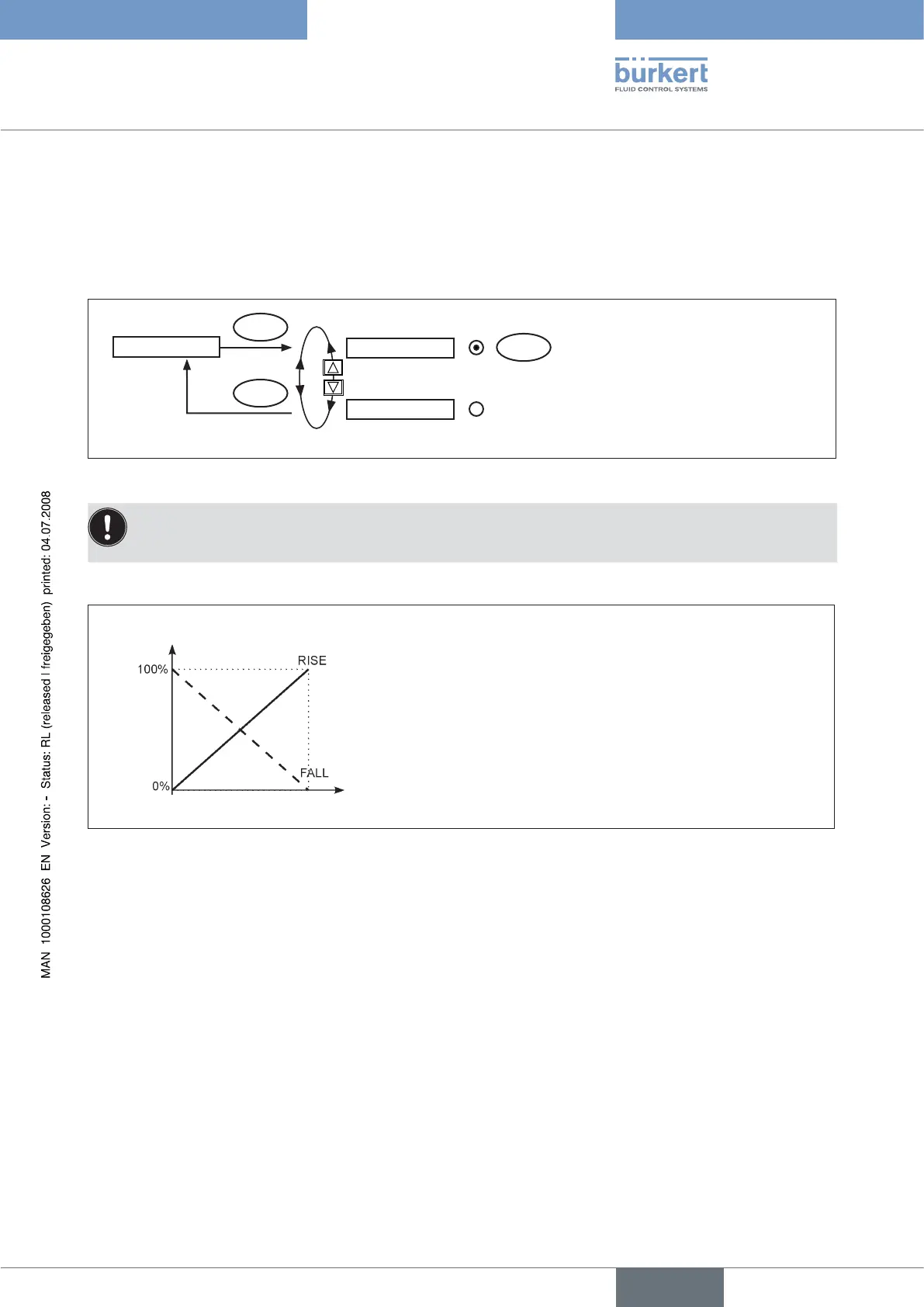

Fig. 19: Operating structure DIR.ACT
If the Fall function is selected, the description of the arrow keys (on the display) changes in the MANUAL operating state
(OPN → CLS and CLS → OPN).
Changed values are not transferred into the memory (EEPROM) until the main menu (MAIN) is left.
Actual position
(POS)
Aeration state
deaerated
aerated
Fig. 20: Graph DIR.ACT
