position controller Type 8692
4.3.6 X.LIMIT
Lmits the mechanical stroke range
This auxiliary function limits the (physicali) stroke to specified % values (minimum and maximum). In doing so, the stroke range of
the limited stroke is set equal to 100 %. If the limited stroke range is left during operation, negative POS values or POS values
are indicated greater than 100 %.
Factory setting: Min = 0%, Max = 100%
X.LIMIT
Min 0 %
Max 100 %
EXIT
ENTER
INPUT
+
-
Min 0 %
OK
INPUT
+
-
Max 100 %
OK
*
*
Input the initial value of the
stroke range as %
Adjustment range:
0 – 50 % of the total stroke
Input the final value of the
stroke range as %,
Adjustment range:
50 – 100 % of the total
stroke
The minimum gap between Min
and Max
is 50 %

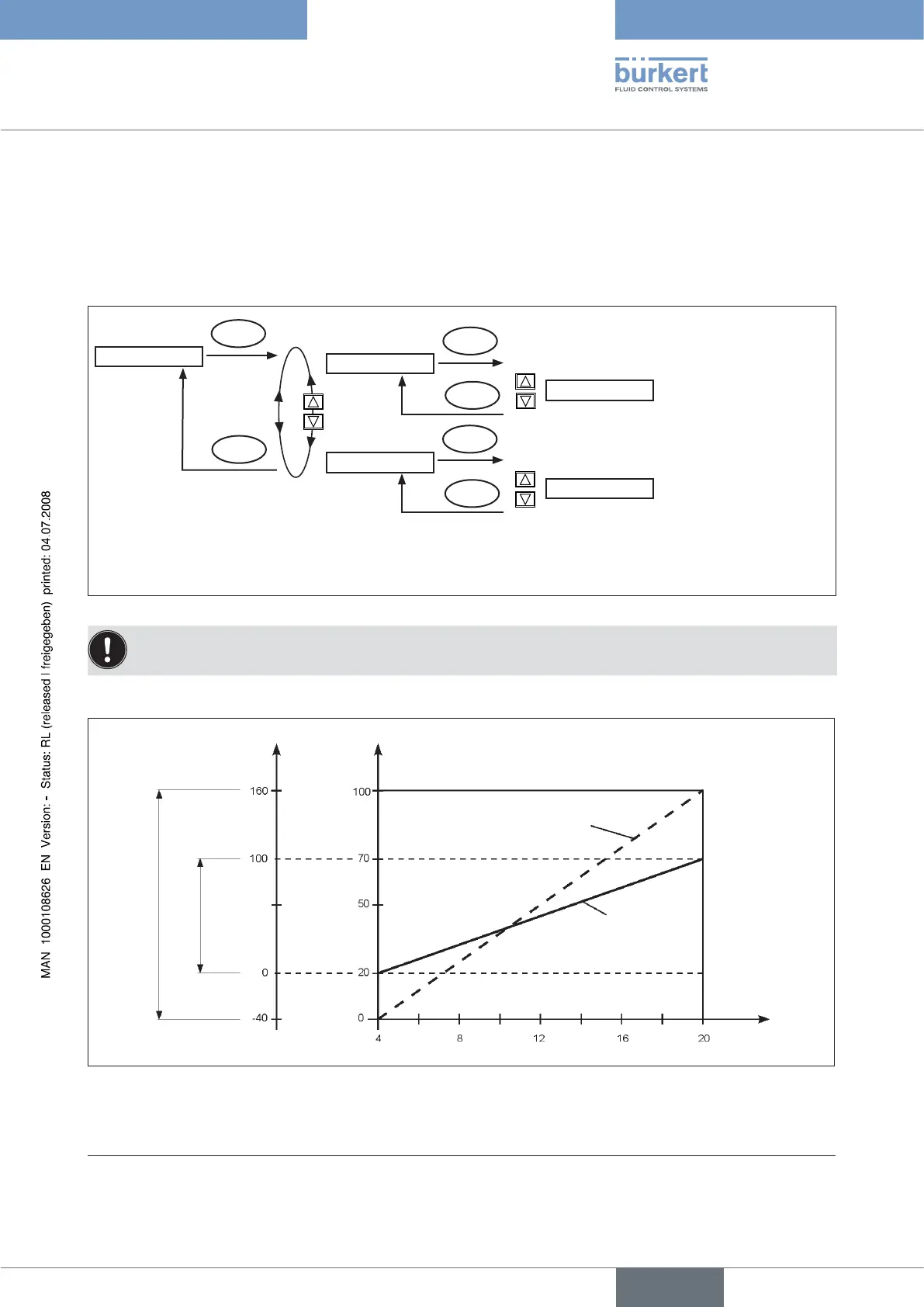

Fig. 23: Operating structure X.LIMIT
Changed values are not transferred into the memory (EEPROM) until the main menu (MAIN) is left.
Limited
stroke
Unlimited
stroke
Physical
stroke (%)
(POS)
Limited
stroke (%)
(POS)
Set-point value
[mA] (INPUT)
Adjustment range in MANUAL mode
Control range in
AUTOMATIC mode
Fig. 24: Graph X.LIMIT
* If the sub-menu is left by pressing the selection key on the left (ESC), the value remains unchanged.
