83
Type 8692, 8693
english
Start-up, operation
position controller Type 8692
OUT ANALOG - Configuration of the analogue output
Only for the versions:
one analogue output•
one analogue and two binary outputs•
The feedback signal of the current position (POS) or of the set-point value (CMD) can be transmitted to the control centre via
the analogue output.
SELEC
OUT POS
EXIT
OUT type
Output of the current position
OUT ANALOG
ENTER
OUT CMD
ENTER
Output of the set-point value
SELEC
4 - 20 mA
Selection of
the unit signal
EXIT
0 - 20 mA
0 - 10 V
0 - 5 V

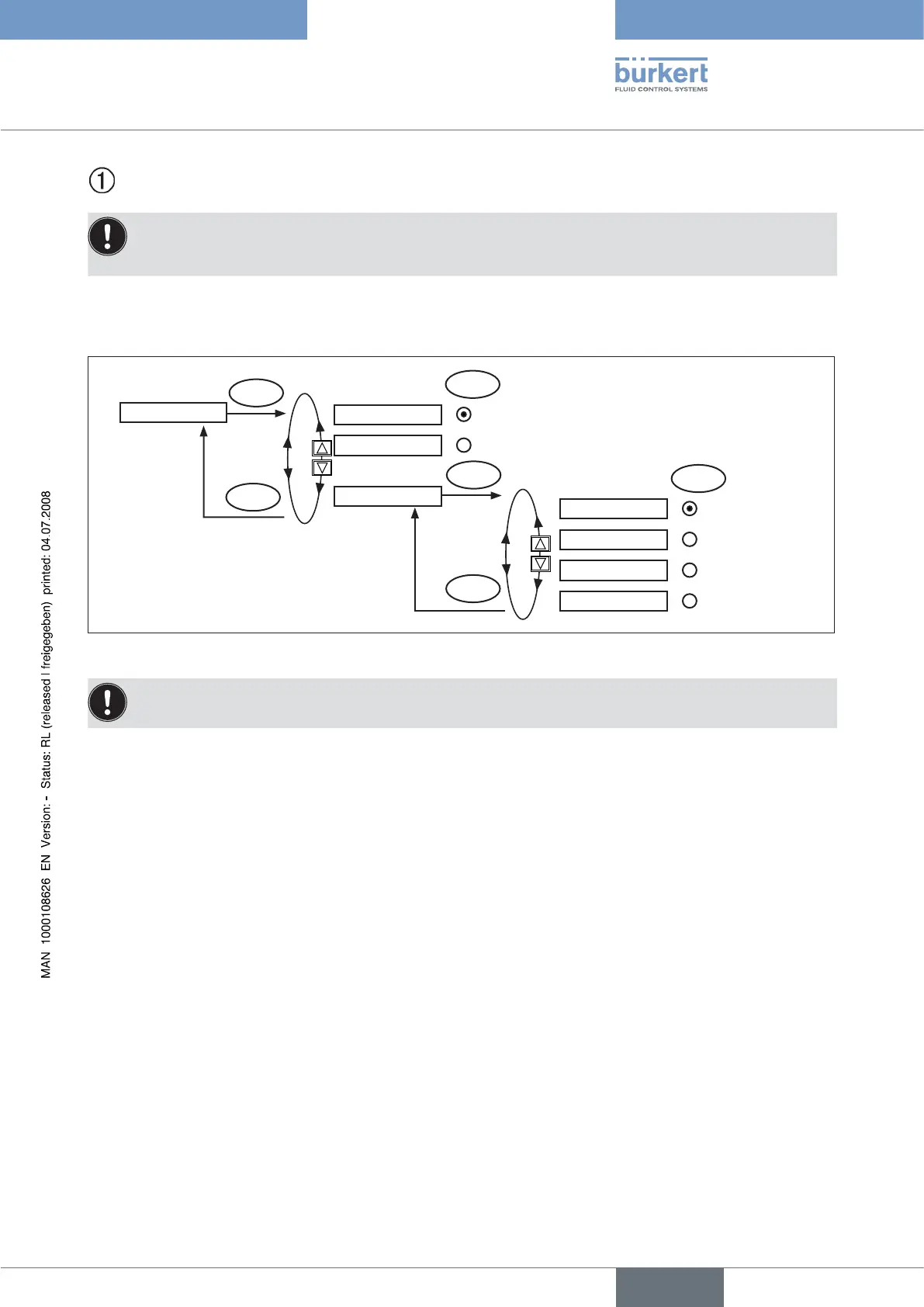

Fig. 34: Operating structure OUTPUT-ANALOGUE
Changed values are not transferred into the memory (EEPROM) until the main menu (MAIN) is left.
