Appendix A Assembly Drawings Page A-25
Table A-22: Rewind Disc Assembly (9101130A)
Item Part Number Quantity Description Reference
1 404020 4 Screw, FHCS, 10-32 UNF x 3/8"
2 405830 2 Screw, SHSS, 1/4-20 UNC x 1/2"
3 9101129 1 Rewind Hub
4 9101130 1 Rewind Tab Retaining Plate

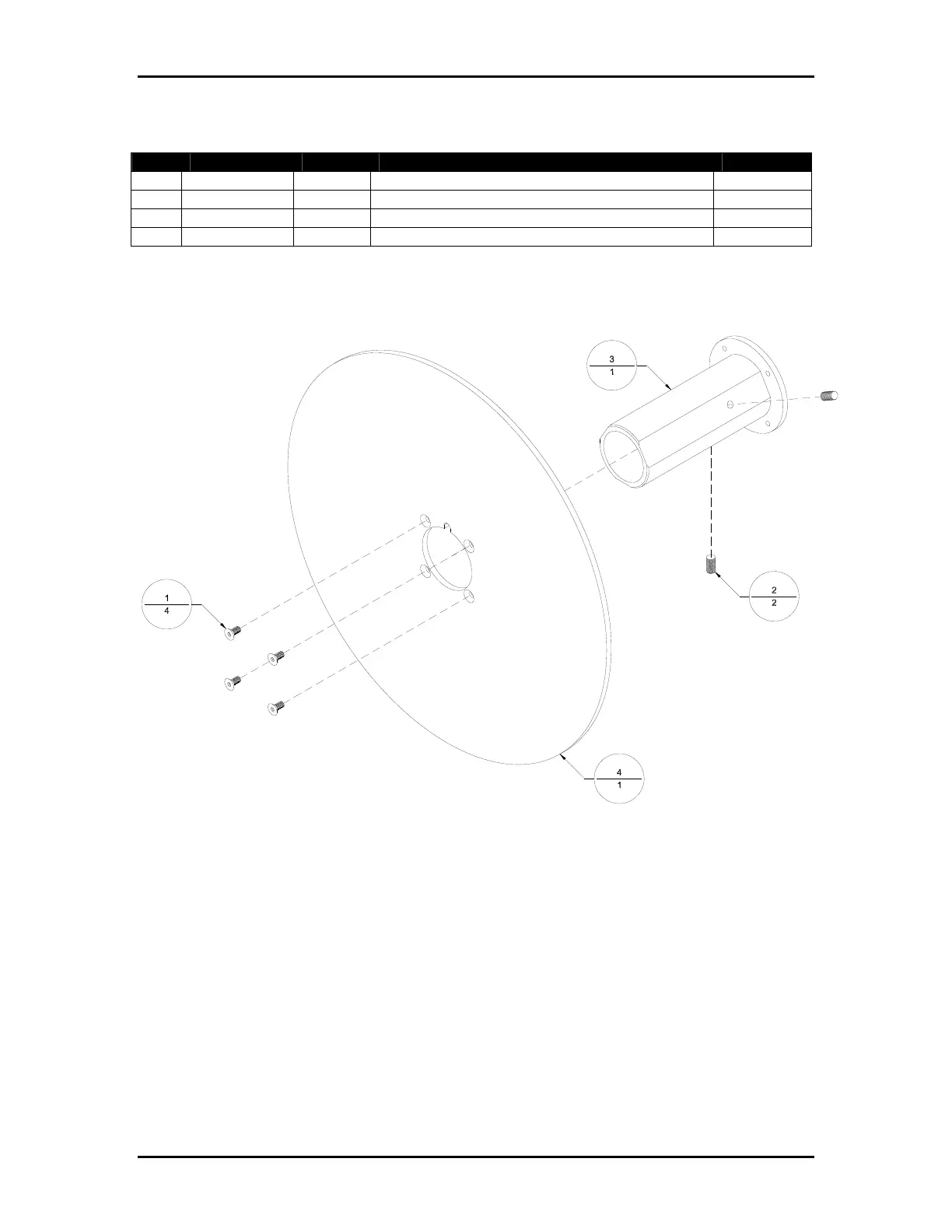

Figure A-23: Rewind Disc Assembly (9101130A)
Buskro Ltd. BK730-2 Tabber
