BUSKRO BK730-2 - Figure A-37: Tabletop Assembly (325530 A

Appendix A Assembly Drawings Page A-44

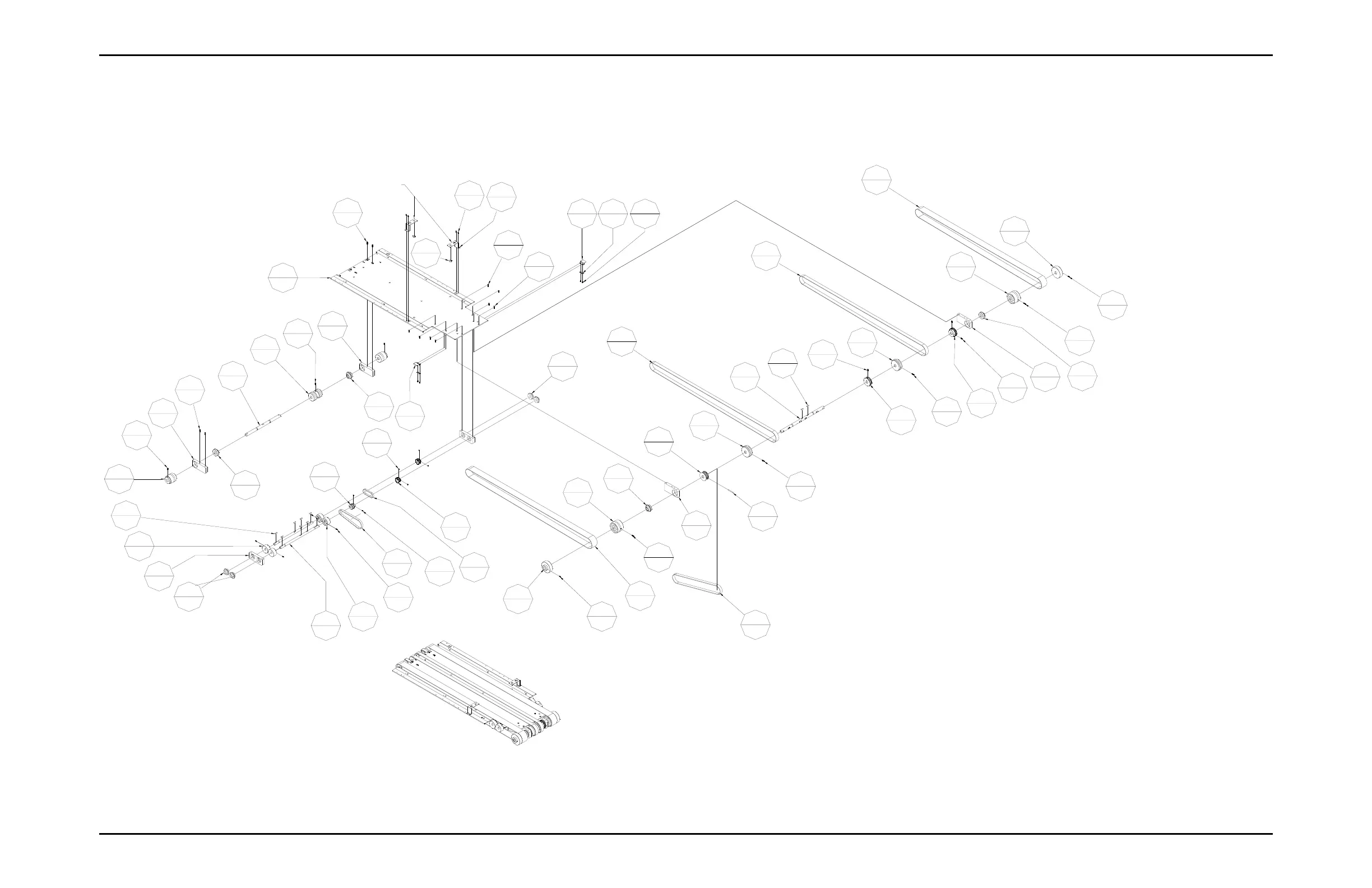

Figure A-37: Tabletop Assembly (325530A)
2
34
4
39
4
22
2
11
1
36
1
8
2
34
4
18
2
2
1
35
10
14
1
31
1
34
4
8
2
18
2
10
1
33
5
22
2
39
4
34
4
9
2
19
2
7
2
32
2
33
5
4
2
21
2
28
4
39
4
1
1
5
1
33
5
39
4
21
2
25
4
42
1
37
4
24
4
27
4
40
2
20
1
43
2
41
1
REMOVE RETAINING RINGS
FROM BEARING P/N 500045
PLACE WHITE PRODUCT DETECT SENSOR
FROM 330730A BOM HERE (2X)
NOTE:
TRANSPORT BELTS (120530 AND 120531) ARE ORDERED
AS A SET (NOT INDIVIDUALLY) UNDER P/N 9103545A.
17
1
26
4
28
4
38
4
23
2
35
10
6
4
16
1
13
1
3
2
6
4
30
4
29
6
15
1
12
2
29
6
38
4
32
2
7
2
19
2
9
