BUSKRO BK730-2 - Figure A-42: Tabber Motor Assembly (530707 A; Table A-40: Tabber Motor Assembly (530707 A

Appendix A Assembly Drawings Page A-50
Buskro Ltd. BK730-2 Tabber

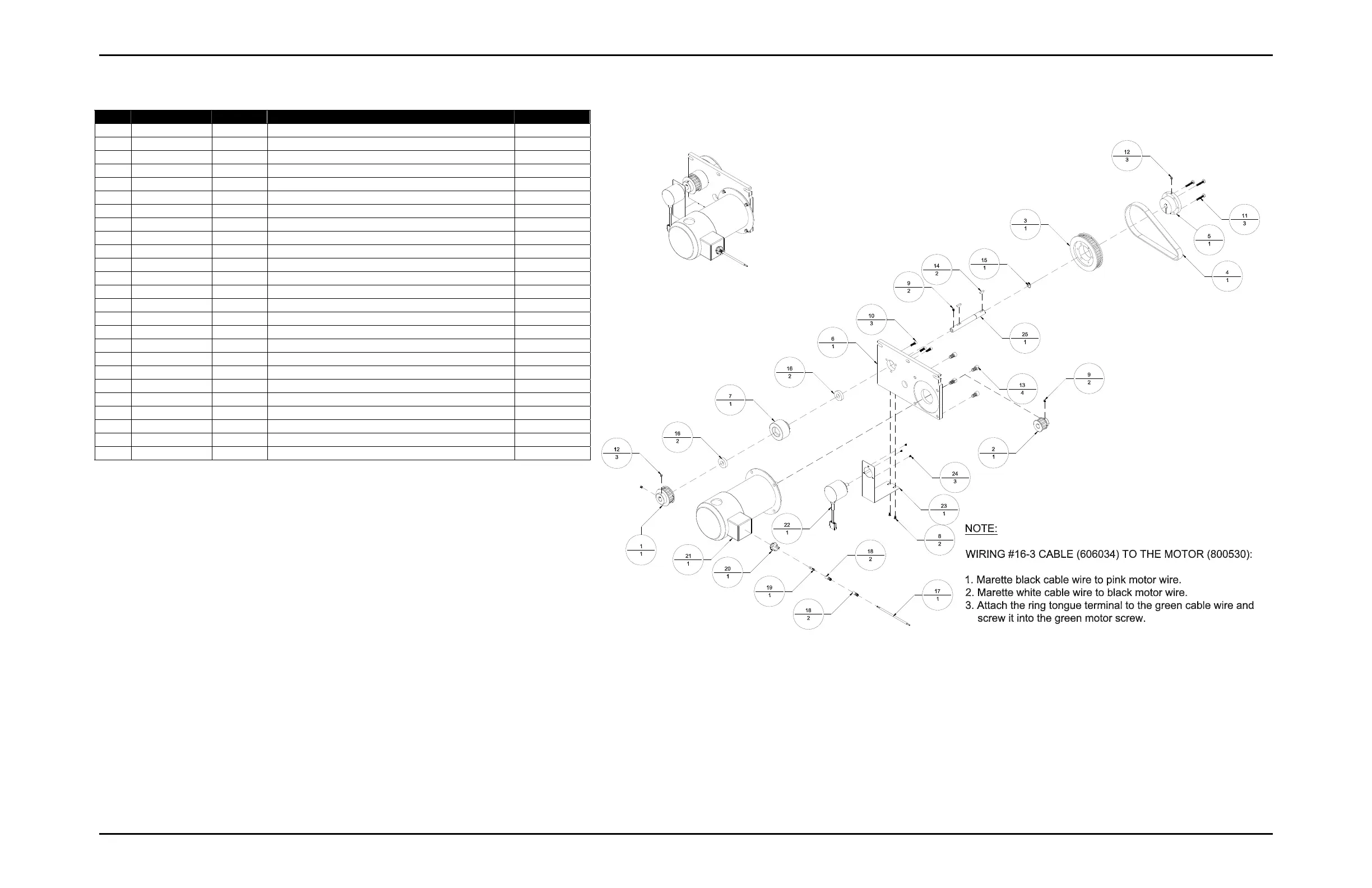

Table A-40: Tabber Motor Assembly (530707A) Figure A-42: Tabber Motor Assembly (530707A)
Item Part Number Quantity Description Reference
1 116302 1 Pulley, 15LF075 X 3/4"
2 116537 1 Pulley, 14LF075 X 5/8"
3 116538 1 Pulley, 14LF075 X STD"
4 120326 1 Timing Belt, 240L075
5 127314 1 Pulley Hub
6 325533 1 Motor Mount Plate
7 330534 1 Mainshaft Housing
8 404520 2 Screw, BHCS, 10-32 UNF x 3/8"
9 404810 2 Screw, SHSS, 10-32 UNF x 1/4"
10 405250 3 Screw, SHCS, 1/4-20 UNC x 3/4"
11 405675 3 Screw, HHMS, 1/4-20 UNC x 1 1/4"
12 405810 3 Screw, SHSS, 1/4-20 UNC x 1/4"
13 407240 4 Screw, SHCS, 3/8-16 UNC x 5/8"
14 430250 2 Woodruff Key, #606, 3/16" x 3/4"
15 437063 1 Retaining Ring, 5/8" I.D., External
16 500040 2 Bearing, R10, 5/8" I.D.
17 606034 54” Cable, #16-3, SJOW-A
18 609101 2 Marette, Orange, 14-22
19 609111 1 Ring Tongue Terminal
20 615131 1 Box Connector, 3/8", Cable
21 800530 1 Motor, 1/3 HP, 90 VDC
22 9100188A 1 Shaft Encoder Assembly, 6000 ppr Page A-51
23 9101563 1 Encoder Mount
24 9101672 3 Screw, BHCS, M3 x 6
25 9101812 1 Main Drive Shaft
