BUSKRO BK730-2 - Figure A-30: Terminal Block Assembly, BK731-2 (9101575 A; Table A-29: Terminal Block Assembly, BK731-2 (9101575 A

Appendix A Assembly Drawings Page A-34
Table A-29: Terminal Block Assembly, BK731-2 (9101575A)
Item Part Number Quantity Description Reference
1 9101570 1 Terminal Block Rail (5" Long)
2 9101573 2 End Stop, Terminal Block, EW 15
3 9101574 3 End Plate, Terminal Block, AKZ 2.5
4 9101575 6 Terminal Block AKZ 2.5
5 9101576 1 Jumper, AKZ 1.5/AKZ 2.5, Q2
6 9101580 2 Jumper, AKZ 1.5/AKZ 2.5, Q3
7 9101662 1 Terminal Block Label, DEK5
8 9101688 4 Terminal Block, AKZ 2.5, Blue
9 9101689 1 Ground Block, AKE 2.5
10 9103724 3 Ferrules, Twin #18 Gauge Wire, White

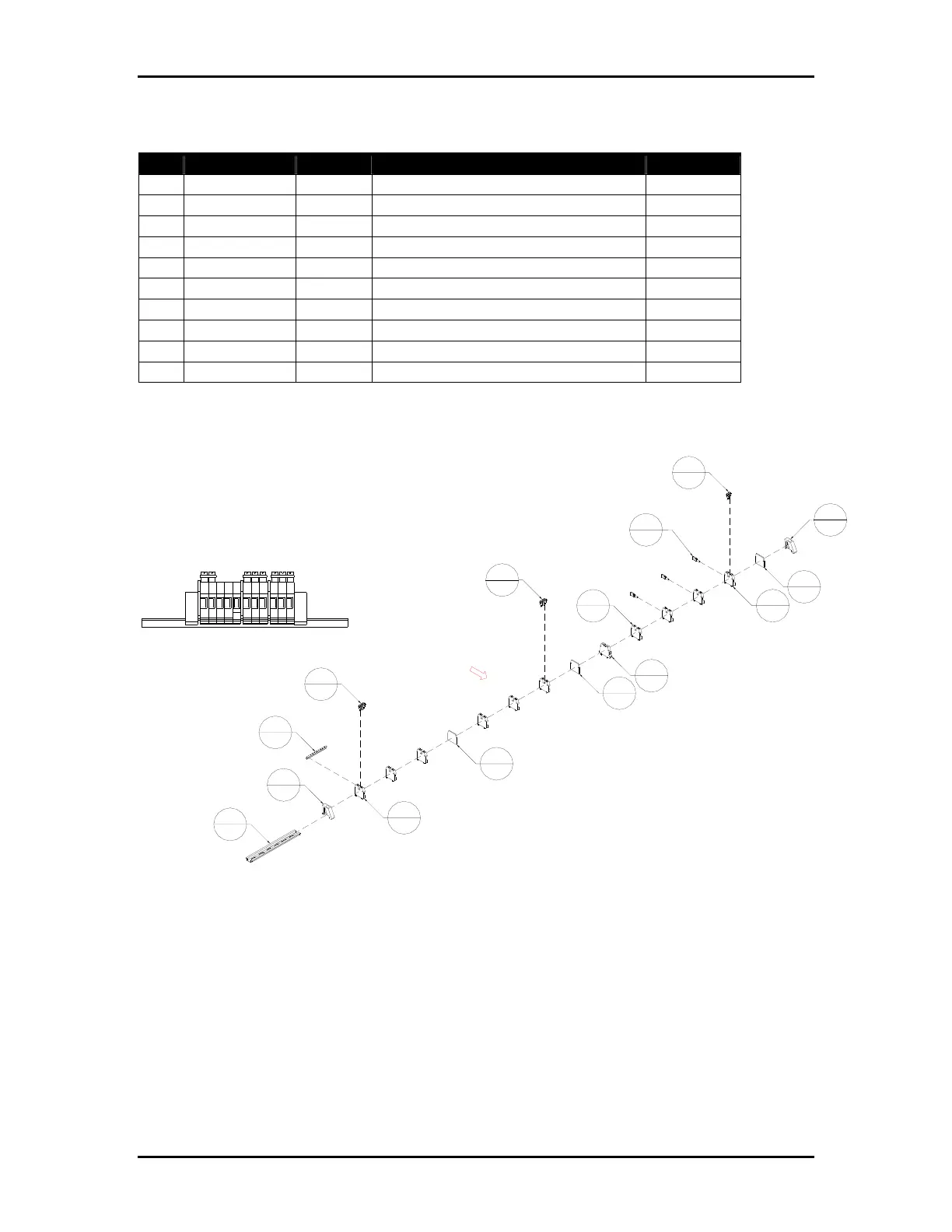

Figure A-30: Terminal Block Assembly, BK731-2 (9101575A)
2
2
3
3
10
3
VIEW A
VIEW A
8
10
9 6 7
PLACE LABELS AS SHOWN.
LABELS MUST BE VISIBLE
AND RIGHT-SIDE UP WHEN
MOUNTED IN UPPER ASSEMBLY
1
3
4
2 5
1
1
2
2
4
6
7
1
6
2
3
3
8
4
8
4
9
1
6
2
5
1
3
3
Buskro Ltd. BK730-2 Tabber
