BUSKRO BK730-2 - Figure A-17: Lower Pivot Arm Assembly (9101069 A; Table A-16: Lower Pivot Arm Assembly (9101069 A

Appendix A Assembly Drawings Page A-19
Table A-16: Lower Pivot Arm Assembly (9101069A)
Item Part Number Quantity Description Reference
1 416140 1 Shoulder Bolt, 3/8" X 5/8", 5/16-18 UNC
2 416185 1 Shoulder Bolt, 3/8" X 2", 5/16-18 UNC
3 436030 1 Spring Pin, 1/8" Dia X 1/2"
4 440533 1 Washer, 3/8" I.D. X 0.06"
5 500020 2 Bearing, R6, 3/8" I.D.
6 505384 1 Flange Bushing, 3/8 I.D. x 1/2 O.D. x 1/2 LG.
7 9101069 1 Pressure Roller
8 9101070 1 Pivot Arm
9 9101082 1 Quick Release Plunger
10 9101240 1 Spring, Pivot Arm
11 9101638 1 Bushing, Nylon, 3/8 "I.D. X 5/8" O.D. X 5/8"

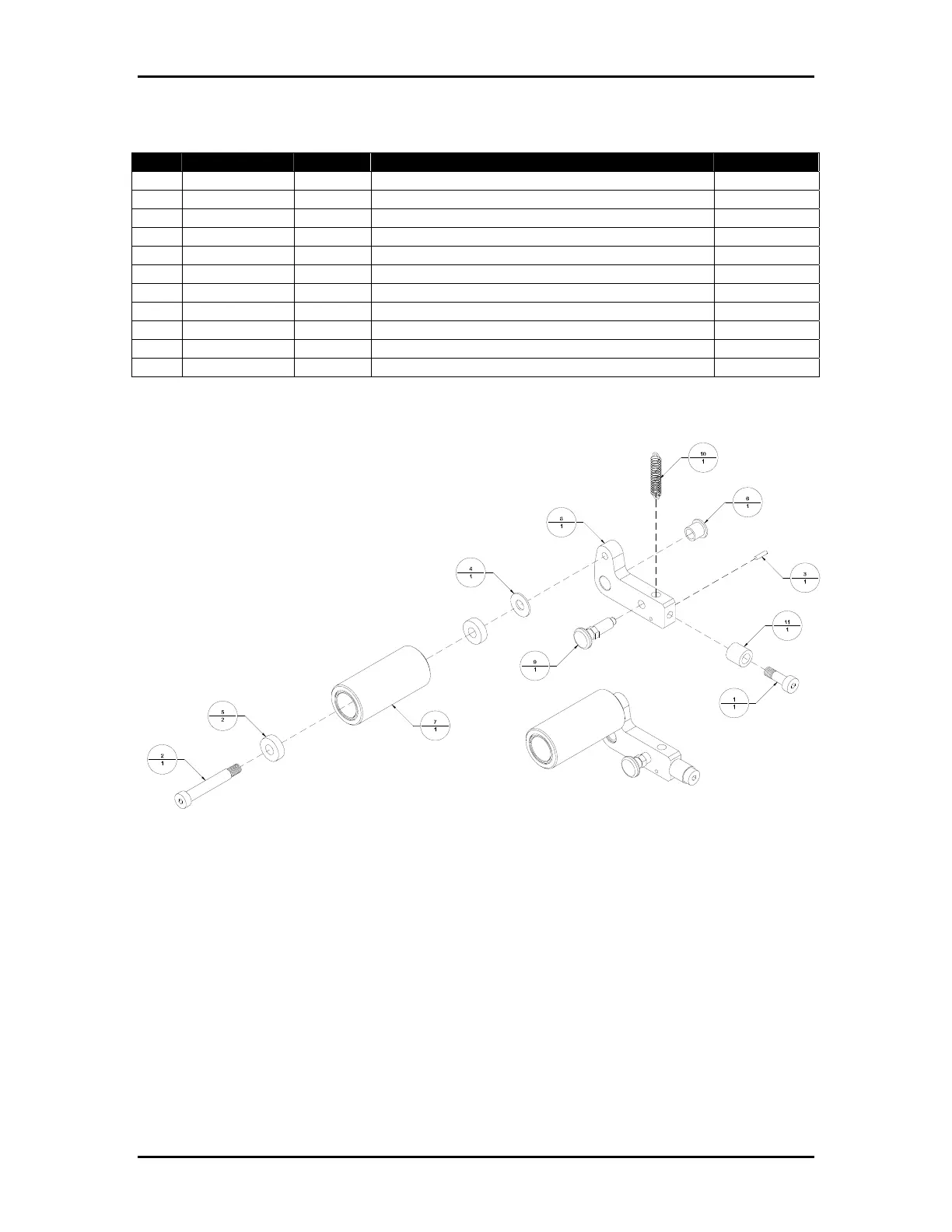

Figure A-17: Lower Pivot Arm Assembly (9101069A)
Buskro Ltd. BK730-2 Tabber
