Appendix A Assembly Drawings Page A-15
Buskro Ltd. BK730-2 Tabber
Table A-12: Unwind Assembly (9101051A)
Item Part Number Quantity Description Reference
1 404510 8 Screw, BHCS, 10-32 UNF x 1/4"
2 405830 2 Screw, SHSS, 1/4-20 UNC x 1/2"
3 407285 1 Screw, SHCS, 3/8-16 UNC x 2"
4 438503 1 Rosette Knob, Black Plastic, 3/8" Screw
5 440008 4 Washer, #10 I.D.
6 440020 2 Washer, 3/8" I.D.
7 500045 2 Bearing UBR202-10S, 5/8" I.D.
8 9101051 1 Unwind Mounting Extrusion
9 9101088 2 Mounting Bracket, Brake Belt
10 9101103 1 Extrusion Cap
11 9101143 1 Shaft, Unwind Motor
12 9101145A 1 Unwind Disc Assembly Page A-27
13 9101146 1 Unwind Braking Pad
14 9101147 1 Unwind Brake Belt
15 9101258 1 Oscillating Idler Roller Spring

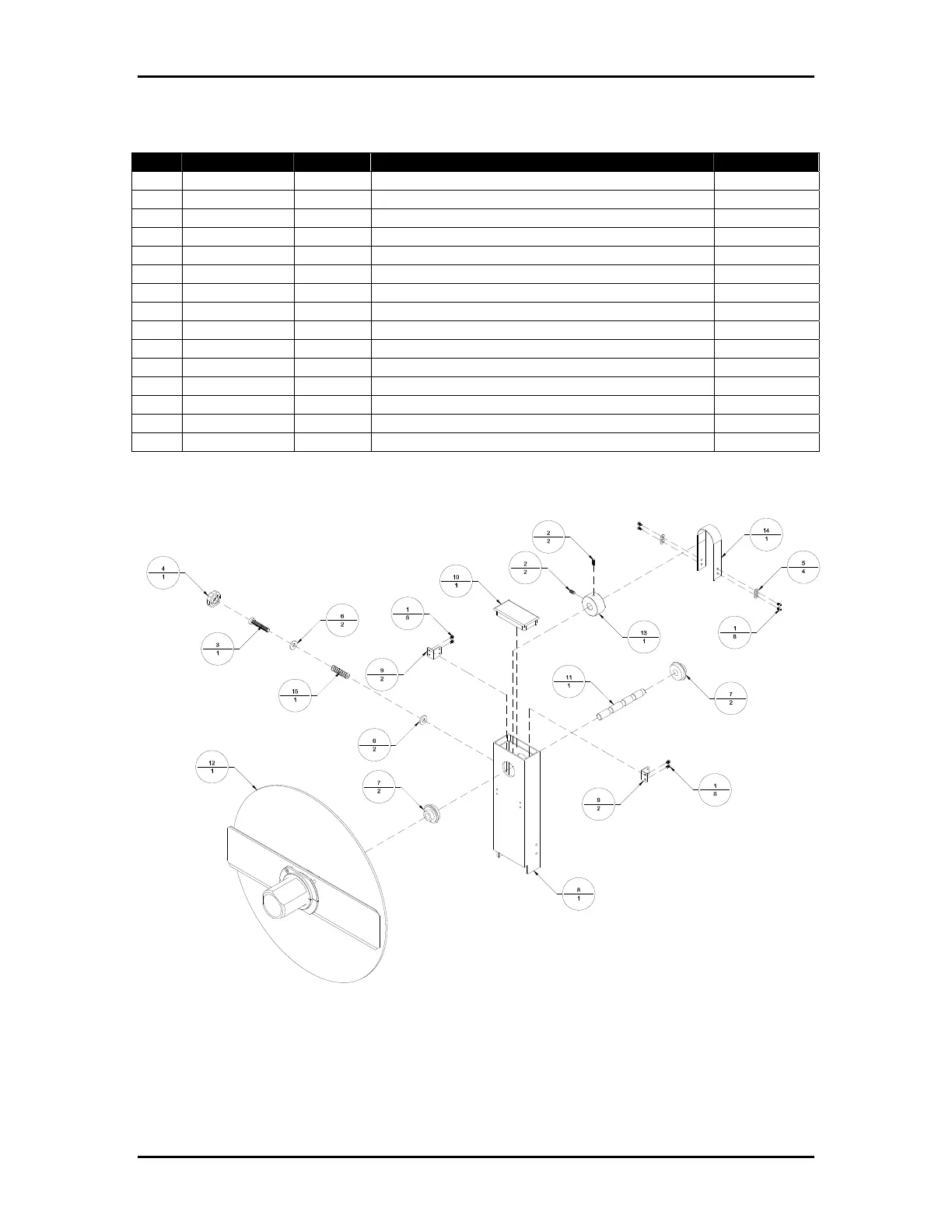

Figure A-13: Unwind Assembly (9101051A)
