BUSKRO BK730-2 - Figure A-18: Peel Point Base Assembly (9101081 A; Table A-17: Peel Point Base Assembly (9101081 A

Appendix A Assembly Drawings Page A-20
Buskro Ltd. BK730-2 Tabber
Table A-17: Peel Point Base Assembly (9101081A)
Item Part Number Quantity Description Reference
1 206010 1 Side Guide Locking Lever
2 404520 1 Screw, BHCS, 10-32 UNF x 3/8"
3 405230 1 Screw, SHCS, 1/4-20 UNF X 1/2"
4 405805 2 Screw, SHSS, 1/4-20 UNC X 1/8"
5 405830 2 Screw, SHSS, 1/4-20 UNC x 1/2"
6 438505 1 Tee Knob, Black Plastic, 1/4-20 Screw
7 440010 1 Washer, 1/4" I.D.
8 9101081 1 Peel Point Base Plate
9 9101087 1 Mounting Block, Peel Point Shaft
10 9101115 2 Dowel Pin, 3/8" DIA x 3"
11 9101128 2 Dowel Pin, 1/2" DIA x 4"
12 9101264A 1 Peel Point Assembly Page A-31
13 9101687 1 Peel Point Lock Plate
14 9101743 1 Cable Clamp, 3/16 Dia.

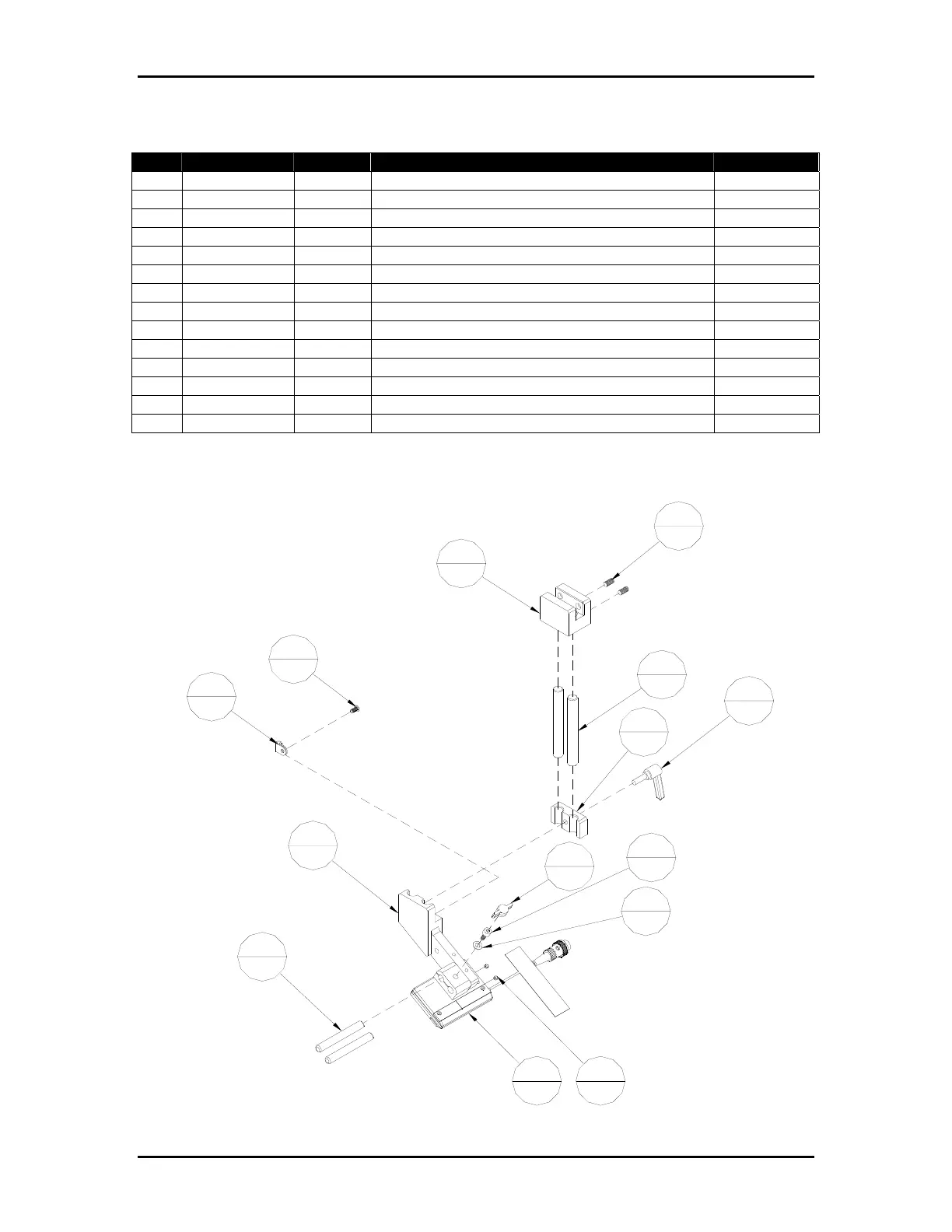

Figure A-18: Peel Point Base Assembly (9101081A)
10
2
8
1
12
1
14
1
2
1
9
1
5
2
11
2
6
1
4
2
1
1
13
1
3
1
7
1
