Chapter 3 Mechanical Adjustments Page 3-11
Mounting Screws
4X, 9101059
Support Block, Tabber Rail
Oblong Cutouts
Mounting Screws

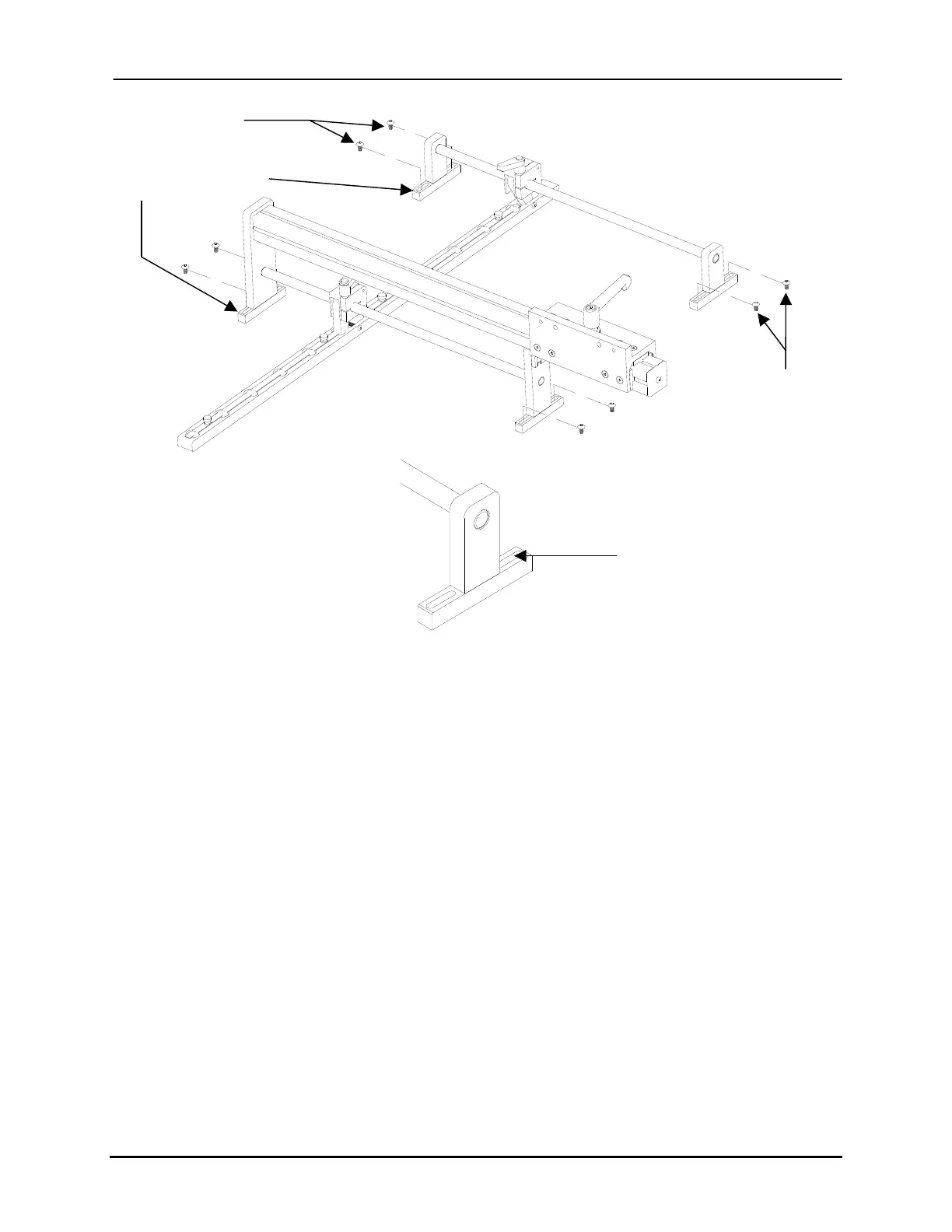

Figure 3-9: Tabber Skidbar Assembly setup.
3.3.3 Wide Label Pressure Roller
The Wide Label Pressure Roller (p/n 9102020), which is part of the Lower Pivot Arm
Assembly, WL (p/n 9102020A), is used to provide equal pressure across the entire width
of the label backing material as labels are applied onto mail and magazines. This enables
the stepping action of the Abrasive Grit Wheel (p/n 9101056) to accurately place labels
and tabs when required. The Wide Label Pressure Roller was designed to be 5” wide in
order to accommodate labels and post-it notes attached to 5” wide backer materials. Over
time, the rubber pressure roller will wear. As part of a monthly preventative maintenance
routine, it is important that the operator regularly inspect the pressure roller for excessive
wear so that a replacement can be ordered through Buskro’s Service department.
