Appendix A Assembly Drawings Page A-5
Buskro Ltd. BK730-2 Tabber
Table A-4: Cable, Conveyor Interconnect(614530A)
Item Part Number Quantity Description Reference
1 606052 1 Cable, #14-7, Unshielded (72" Long)
2 614105 1 Receptacle Plug, 23-7
3 614109 7 Pin, Power Contact
4 614110 7 Socket, Power Contact
5 614113 2 Cable Clamp
6 614128 1 Receptacle, 23-7 Reverse Amp

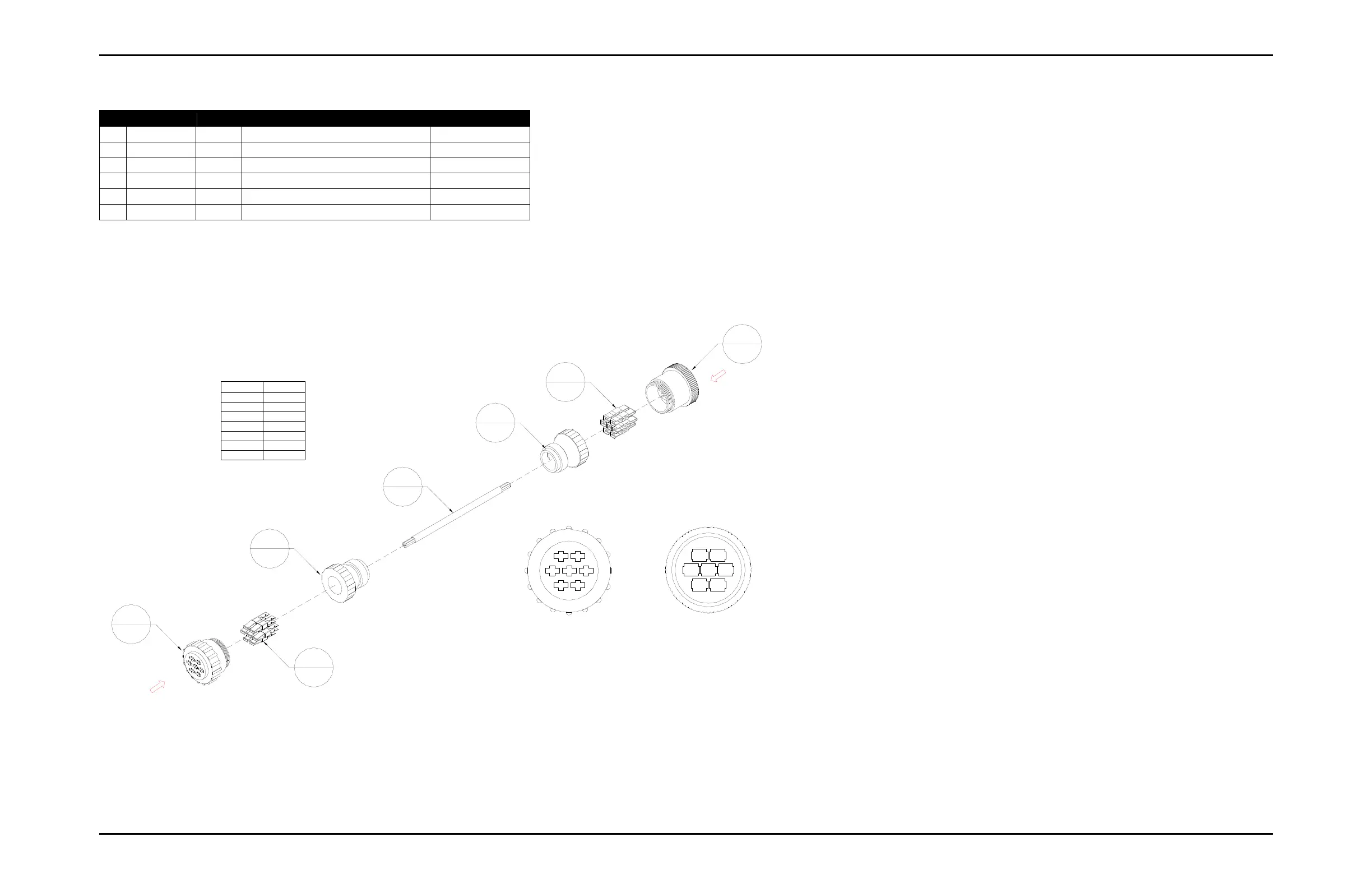

Figure A-4: Cable, Conveyor Interconnect(614530A)
VIEW A
VIEW B
VIEW A
1
3
6
4
2
5
7
7
2
5
4
3
6
1
VIEW B
Color
Black
Green
White/Black
Blue
Red
Orange
White
7
2
4
6
5
3
Pin
1
6
1
4
7
5
2
1
1
5
2
3
7
2
1
