Appendix A Assembly Drawings Page A-21
Table A-18: Front Cover Assembly (9101111A)
Item Part Number Quantity Description Reference
1 401510 2 Screw, BHCS, 4-40 UNC x 1/4"
2 402020 4 Screw, FHCS, 6-32 UNC x 3/8"
3 402210 2 Screw, SHCS, 6-32 UNC x 1/4"
4 402510 2 Screw, BHCS, 6-32 UNC x 1/4"
5 402530 2 Screw, BHCS, 6-32 UNC x 1/2"
6 404510 4 Screw, BHCS, 10-32 UNF x 1/4"
7 438314 1 Inkwell Door Handle
8 615533 1 Actuator, Magnetic
9 630006 1” Reflective Tape
10 9101110 2 Hinge, Mini Lift-off, In-line
11 9101111 1 Front Safety Cover
12 9101663 1 Tabber Right Side Cover
13 9101664 1 Panel Stiffener
14 9101686 1 Front Cover Magnetic Catch

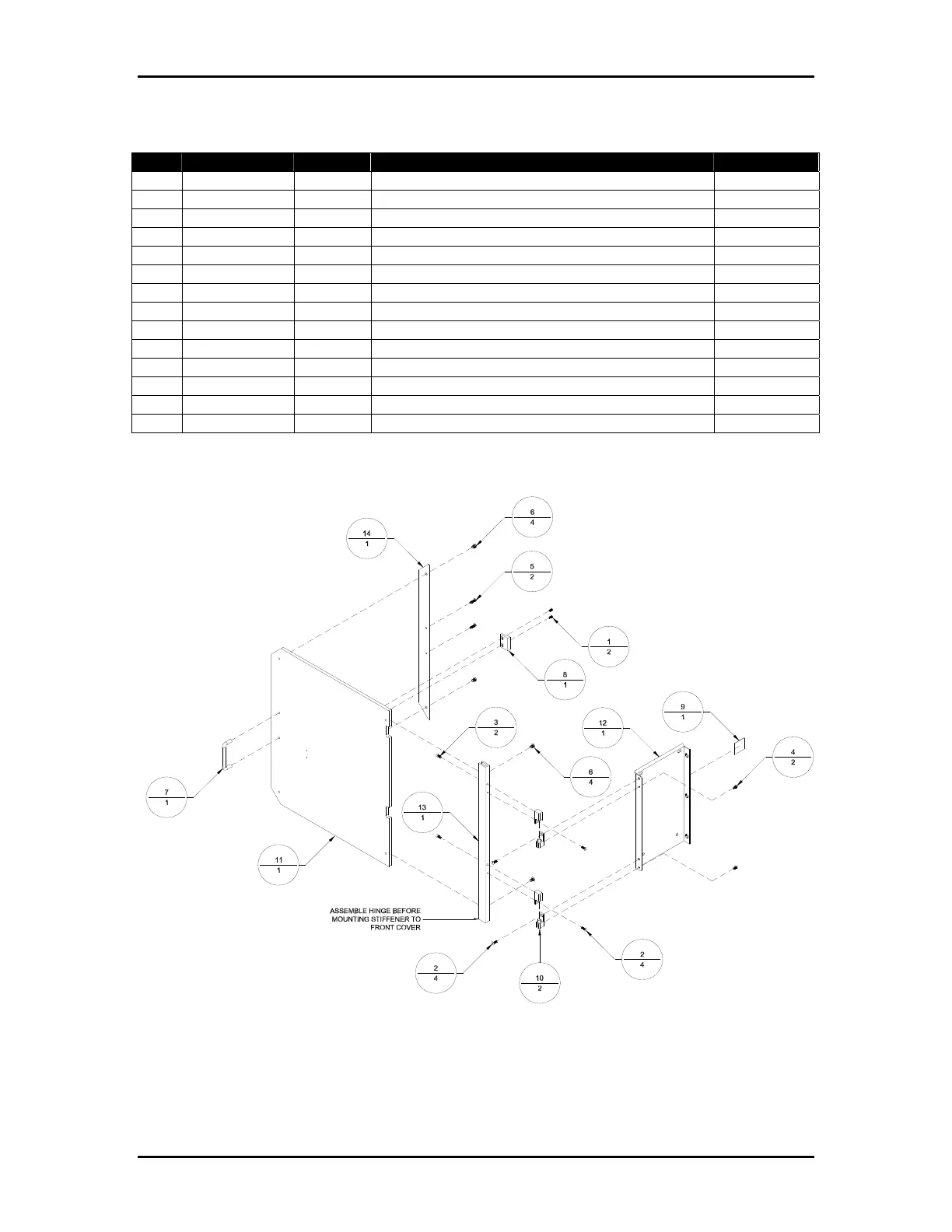

Figure A-19: Front Cover Assembly (9101111A)
Buskro Ltd. BK730-2 Tabber
