BUSKRO BK730-2 - Figure A-26: Oscillating Idler Assembly (9101233 A; Table A-25: Oscillating Idler Assembly (9101233 A

Appendix A Assembly Drawings Page A-29
Table A-25: Oscillating Idler Assembly (9101233A)
Item Part Number Quantity Description Reference
1 404810 2 Screw, SHSS, 10-32 UNF X 1/4"
2 437075 2 Retaining Ring, 3/4" I.D. External
3 440020 1 Washer, 3/8" I.D.
4 9100749 2 Rubber Washer, 3/8" I.D. X 1" X 1/8"
5 9101109 1 Linear Bearing
6 9101232 1 Oscillating Idler Shaft
7 9101233 1 Oscillating Idler Slide Block
8 9101234 2 Oscillating Idler Mount Block
9 9101258 1 Oscillating Idler Roller Spring

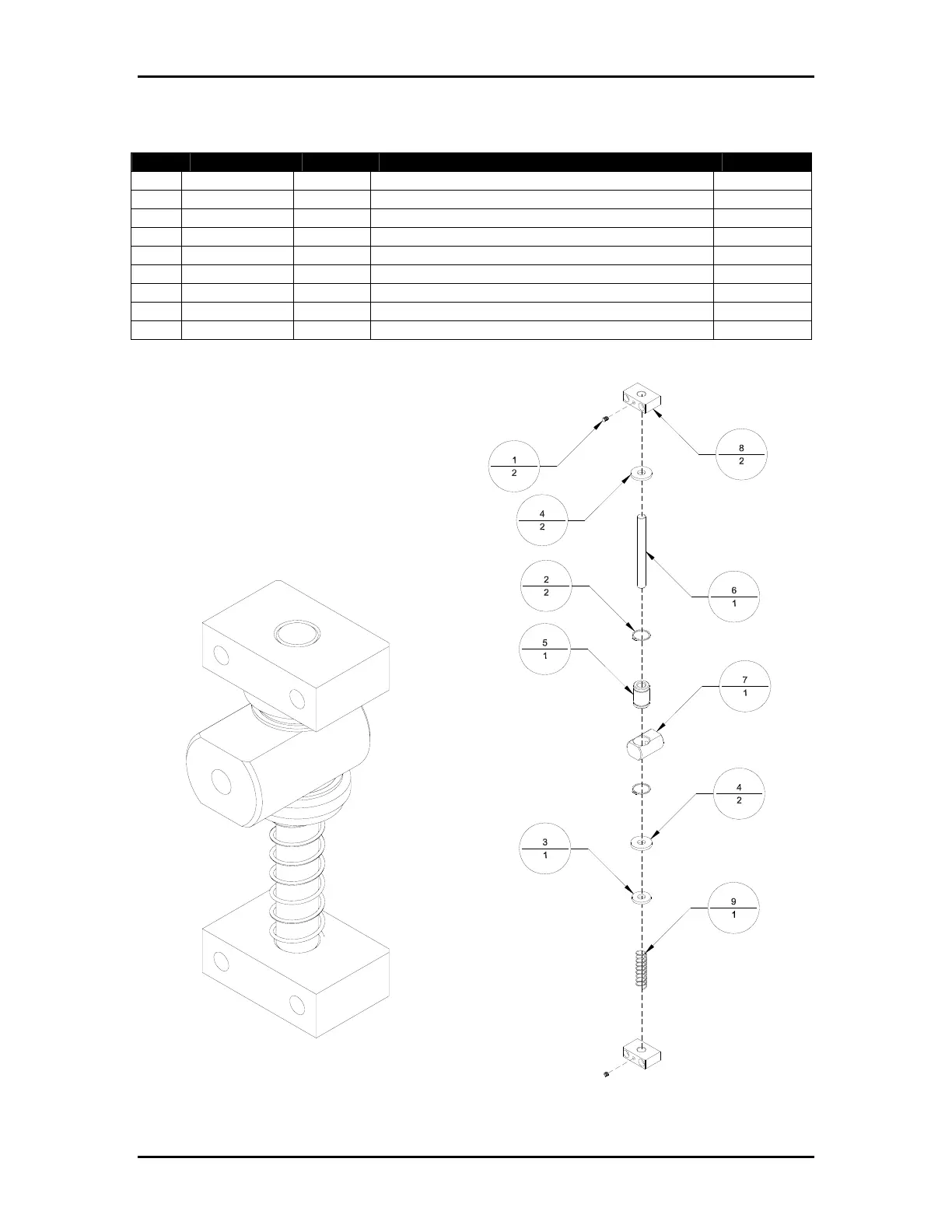

Figure A-26: Oscillating Idler Assembly (9101233A)
Buskro Ltd. BK730-2 Tabber
