Appendix A Assembly Drawings Page A-28
Table A-24: Unwind Disc Assembly (9101145A)
Item Part Number Quantity Description Reference
1 404020 4 Screw, FHCS, 10-32 UNF x 3/8"
2 404030 2 Screw, FHCS, 10-32 UNF x ½”
3 405850 2 Screw, SHSS, ¼-20 UNC x ¾”
4 9101144 1 Unwind Hub
5 9101145 1 Unwind Tab Retaining Plate
6 9101149 1 Tab Retaining Plate
7 9101150 1 Unwind Hub Guide

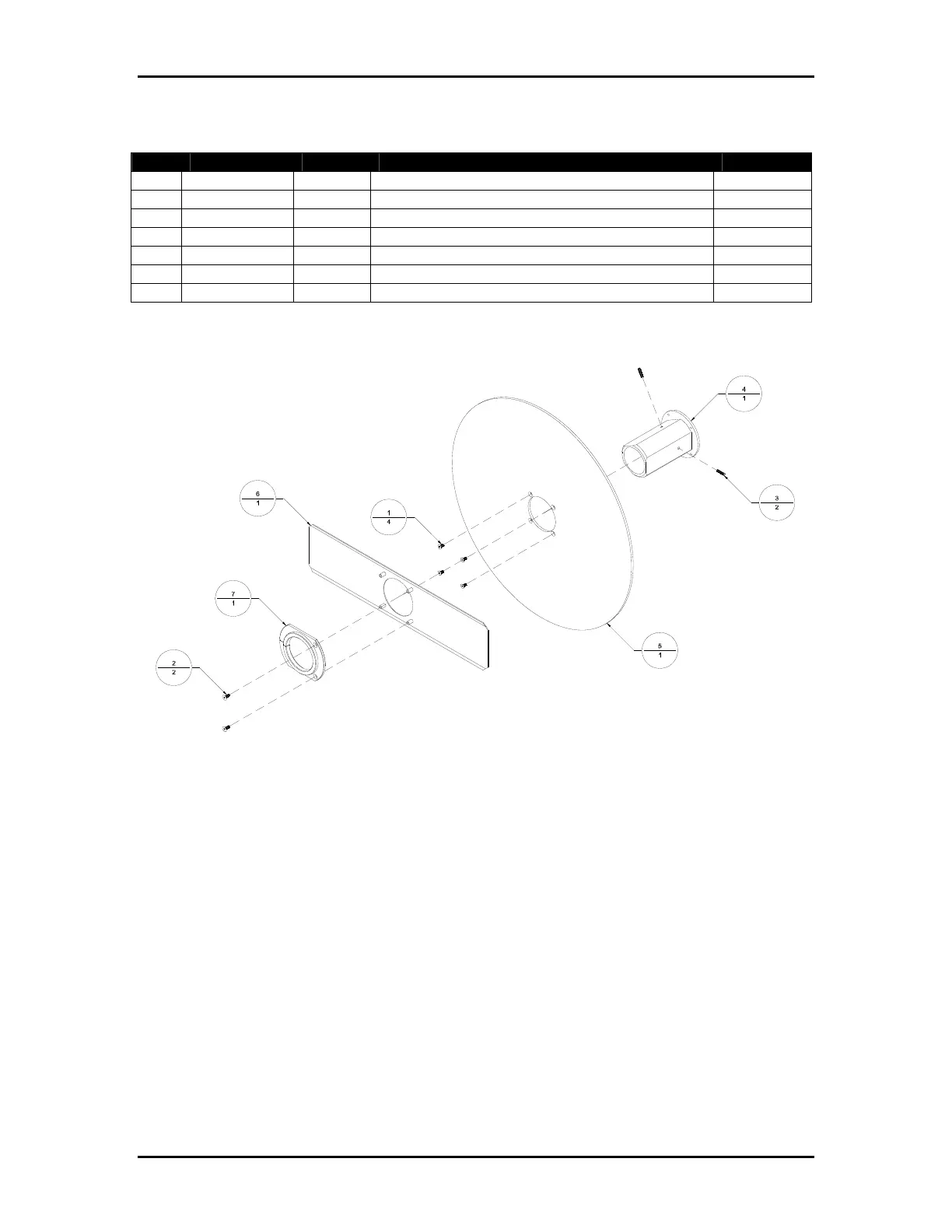

Figure A-25: Unwind Disc Assembly (9101145A)
Buskro Ltd. BK730-2 Tabber
