BUSKRO BK730-2 - Figure A-21: Keypad Mounting Rail Assembly (9101121 A; Table A-20: Keypad Mounting Rail Assembly (9101121 A

Appendix A Assembly Drawings Page A-23
Table A-20: Keypad Mounting Rail Assembly (9101121A)
Item Part Number Quantity Description Reference
1 402020 6 Screw, FHCS, 6-32 UNC x 3/8"
2 405520 3 Screw, BHCS, 1/4-20 UNC x 3/8"
3 405530 2 Screw, BHCS, 1/4-20 UNC x 1/2"
4 606324 1 Serial Extension Cable, 3 Ft, 25 Cond.
5 9100222 3 Shim Stock
6 9100360 1 Endcap (10 series)
7 9101057A 1 Tabber Keyboard Assembly Page A-24
8 9101121 1 Tabber Keyboard Rail Mounting Bracket
9 9101122 1 Tabber Sliding Rail
10 9101124 1 Bearing Profile, Keypad Mount
11 9101125 3 Bearing Pad, Keypad Mount
12 9101126 1 Double T-Nut

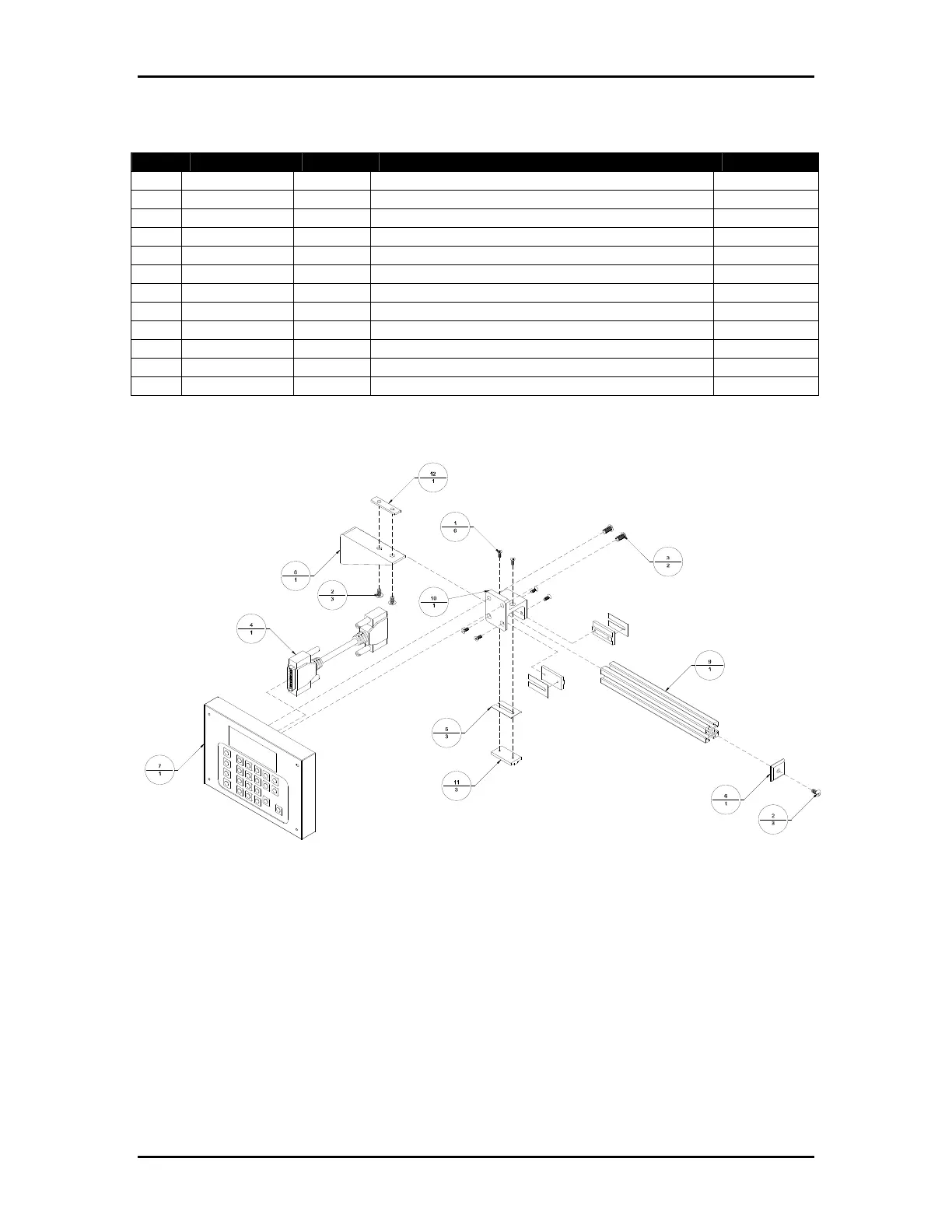

Figure A-21: Keypad Mounting Rail Assembly (9101121A)
Buskro Ltd. BK730-2 Tabber
