Chapter 3 Mechanical Adjustments Page 3-7

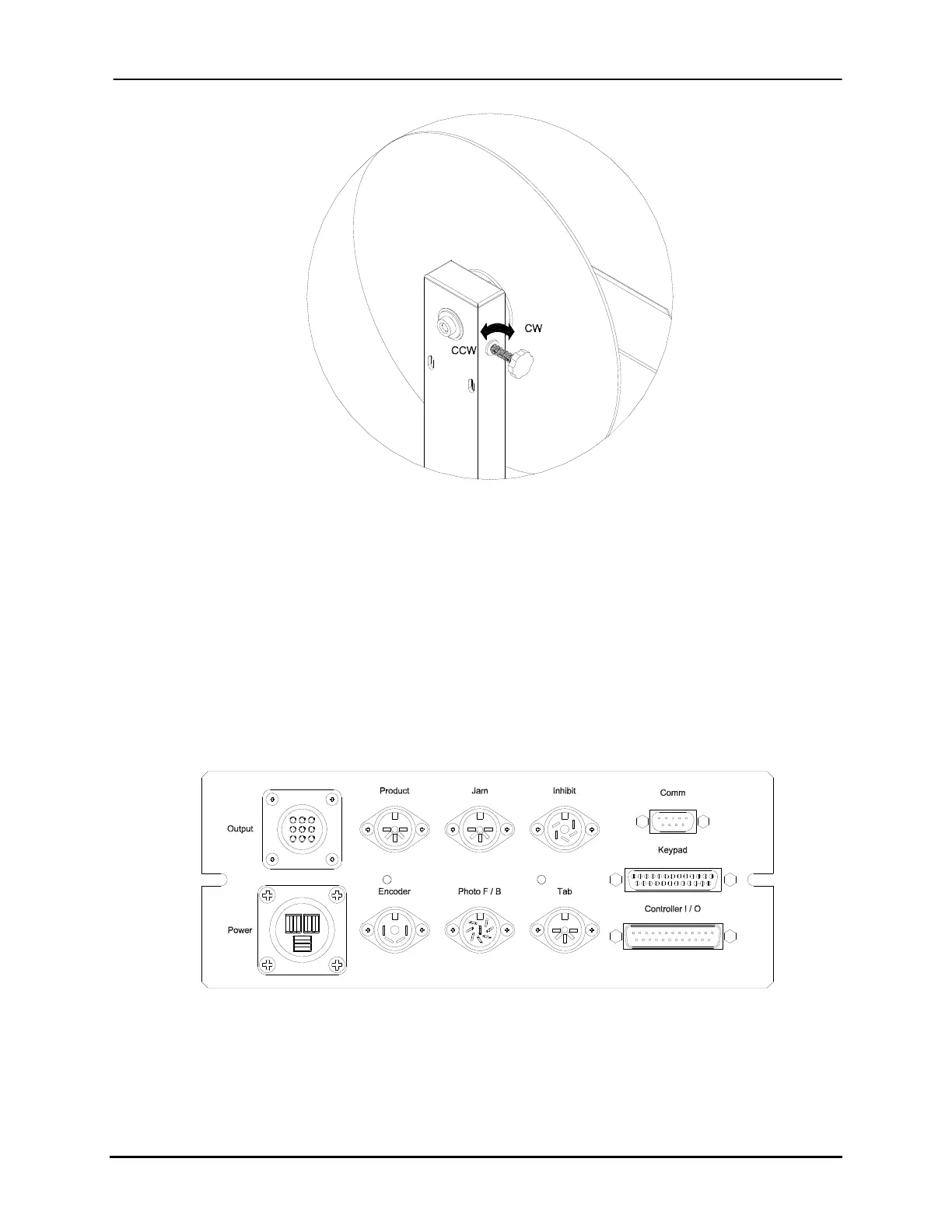

Figure 3-5:
Illustration of Despool Brake Adjustment Knob
3.2 Labeler Connector Panel
The Labeler Connector Panel on the BK731-2 is the electrical interface for power,
operator keypad interface, output signals, and sensor inputs that enable the head to
operate.
Figure 3-6: Illustration of the labeler connector plate
The various functions are listed in Table 3-1.
Buskro Ltd. BK730-2 Tabber
