2.2.3 The Base Control Board (p/n 9102380A)
The Base Control Board was designed as a universal control board for all Buskro
machines enabling control signals to be communicated with multiple modules in a
production system. It can also be easily integrated with third party equipment. The board

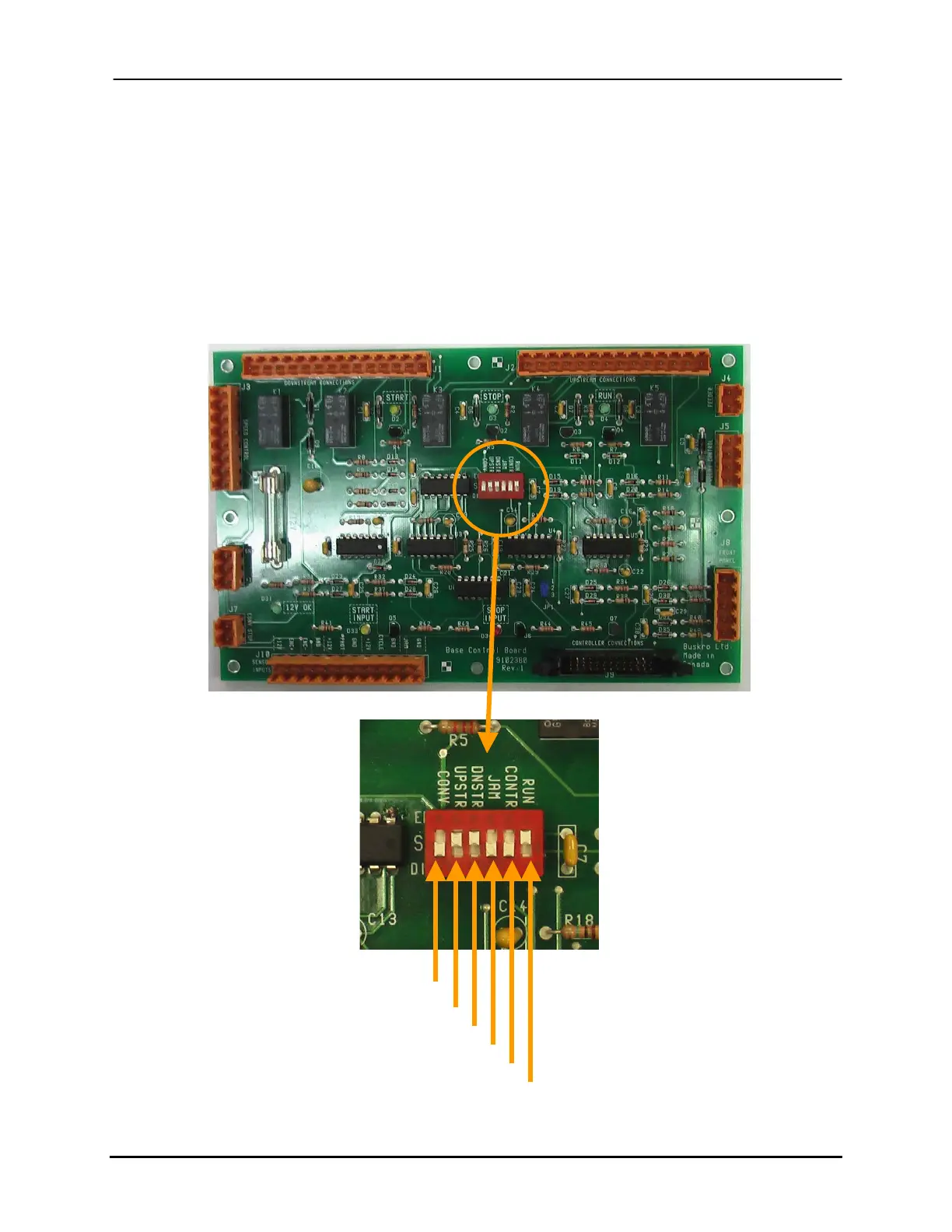

is illustrated in Figure 2-4 highlighting the DIP switches. A more detailed view is
available in appendix B.
S1-1
S1-2
S1-3
S1-4
S1-5
S1-6
