BUSKRO BK730-2 - Peel Point Lateral Adjustment

Chapter 3 Mechanical Adjustments Page 3-3

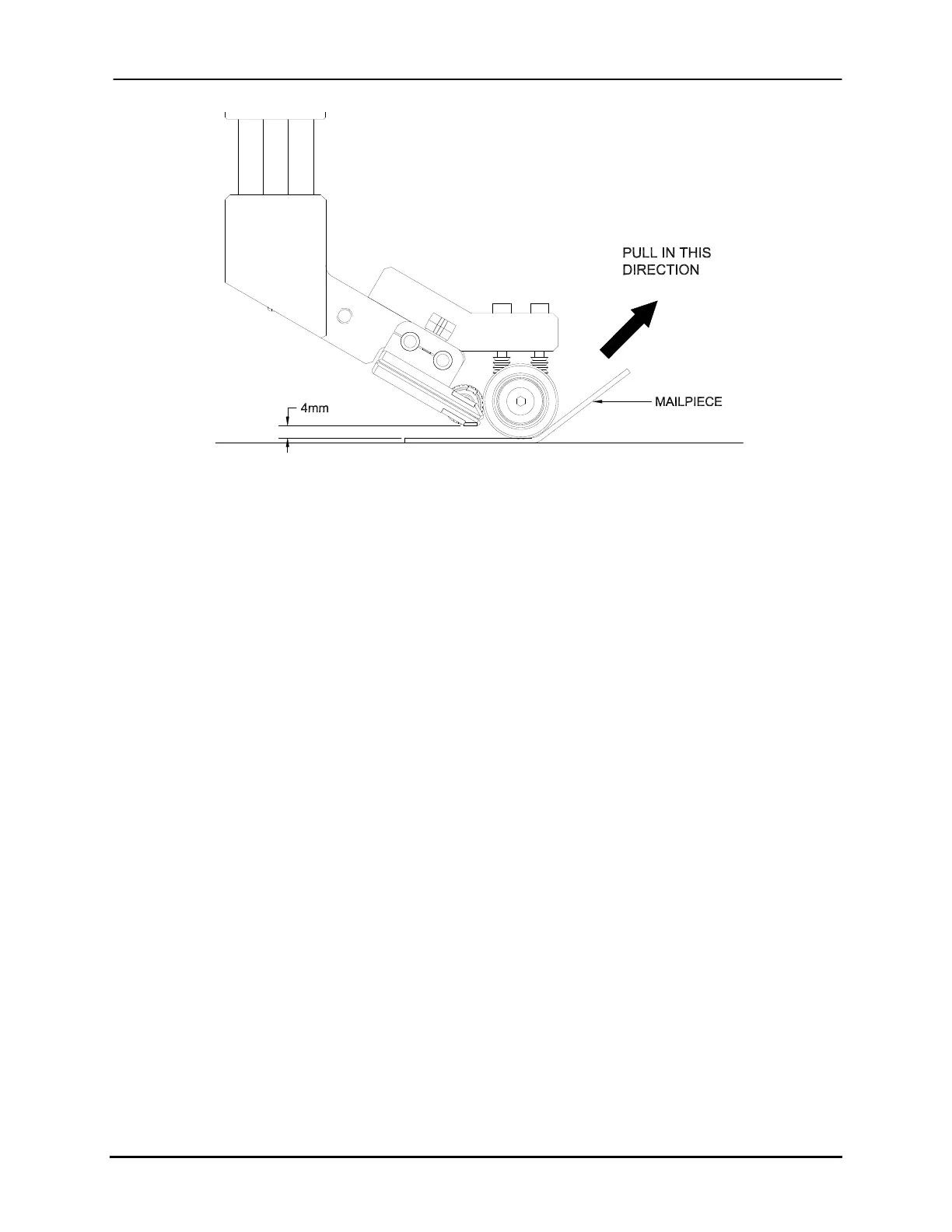

Figure 3-2: Illustration of peel point adjustment for different product thickness
3.1.3 Peel Point Lateral Adjustment
In order to accommodate a different range of label widths, the peel point lateral position
will need to be setup appropriately. It is important to account for the label/tab width
during setup for each job such that the center of the label/tab is always in line with the
notch on the Peel Point Sensor. The notch indicates the location of the sensor electronics
used to detect tabs/labels in the Peel Point Assembly. Lateral positions can be adjusted by
loosening the lock knob as shown in
Figure 3-3.
