Chapter 3 Mechanical Adjustments Page 3-14

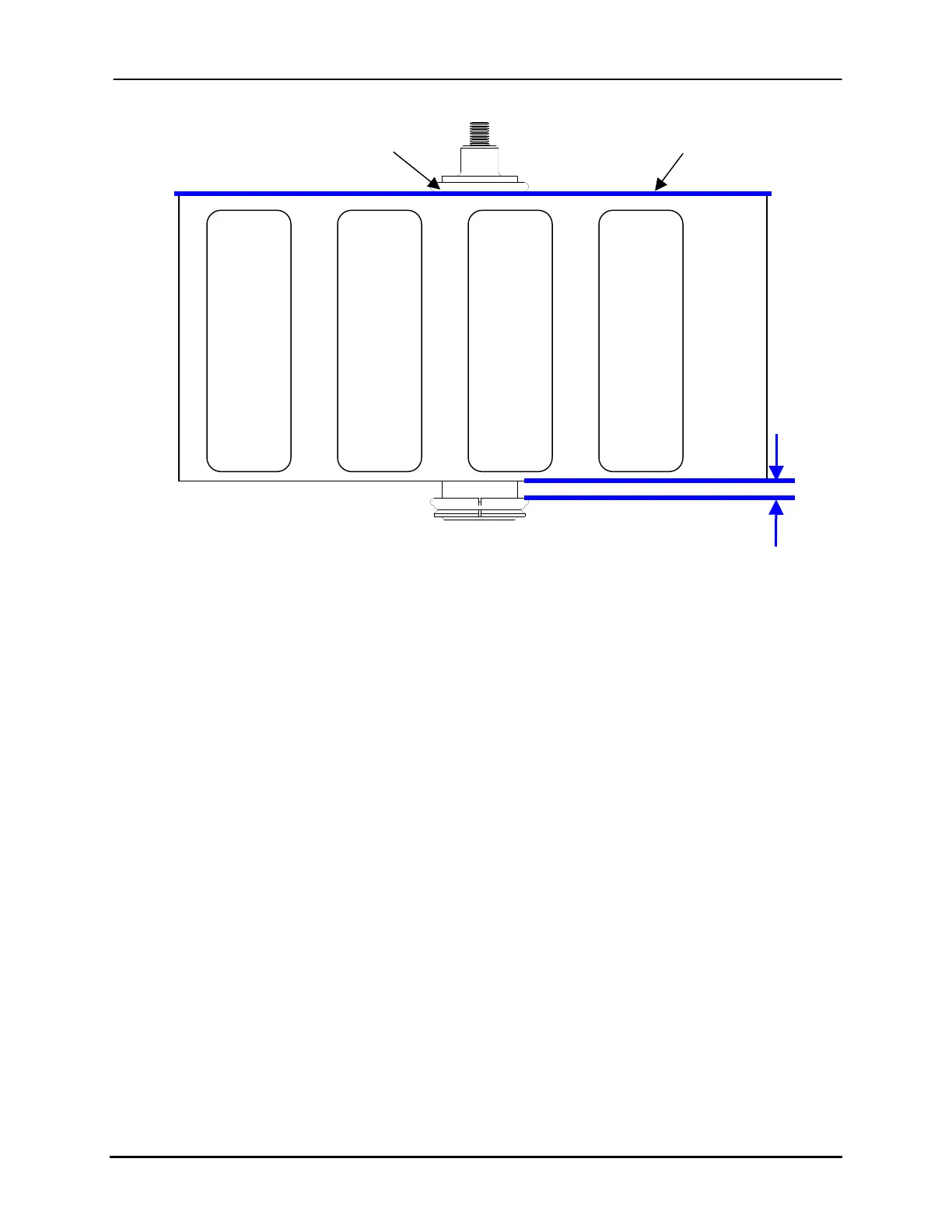

Figure 3-12: Gap between backer material and Tab Backer Guide.
Aligned Edge
Circular
Extension
1/32” gap
3.3.6 Fanfold Supply Tray Assembly (p/n 9102031A)
The Fanfold Supply Tray is used to allow for feeding of fanfold label materials rather than
roll-fed label materials. Simply drop in a fanfold supply of up to 5,000 labels and 5” wide
into the tray and begin routing the backer material through the Labeling system. A nylon
brush assembly is available to ensure that there is sufficient pressure on the backer
material so that it is accurately transported through to the Peel Point Assembly. The entire
assembly is illustrated in
Figure 3-13 as a reference.
Buskro Ltd. BK730-2 Tabber
