Chapter 2 BK730-2 Base Page 2-5
2.1.9 Tabber Connection Receptacle Panel

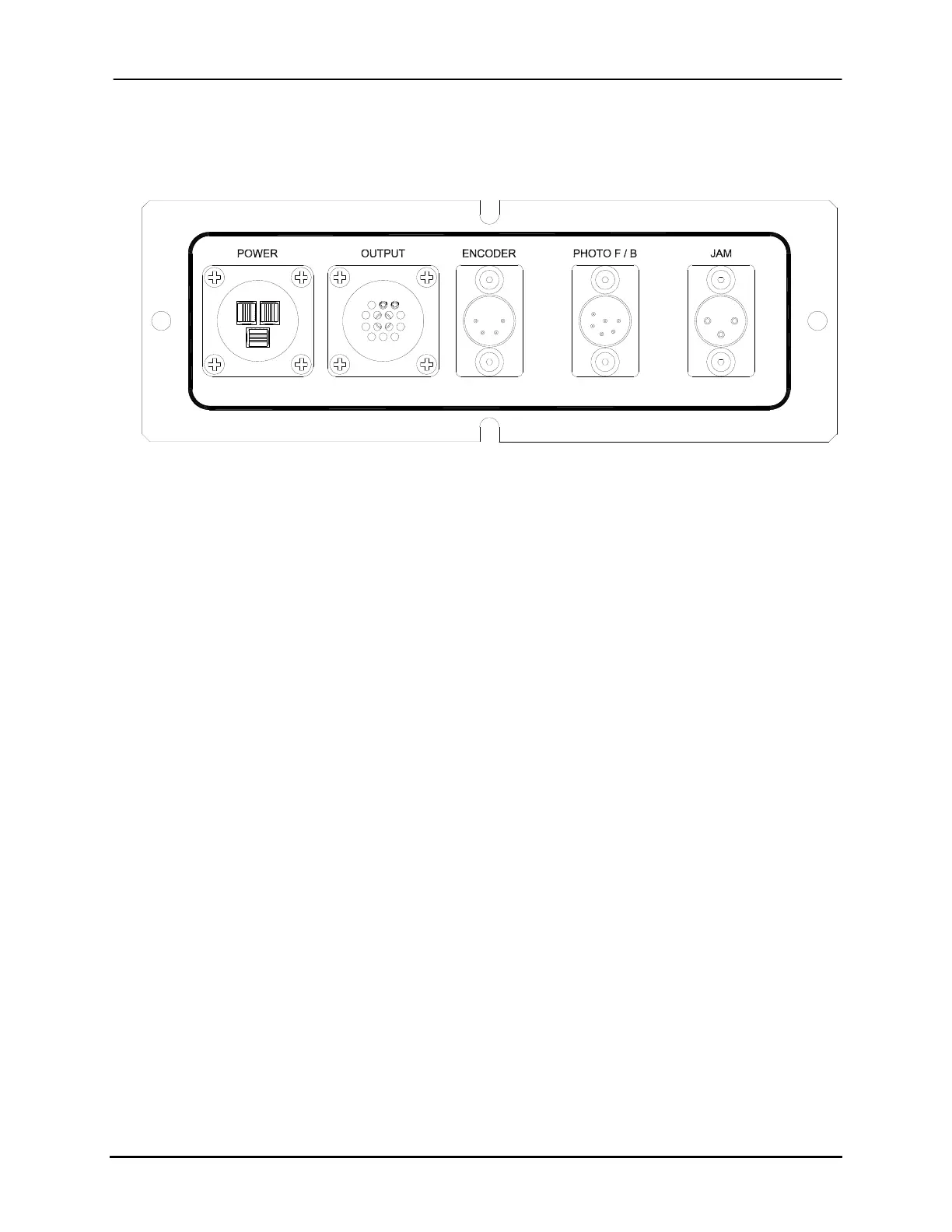

Figure 2-3: Receptacle Panel
The receptacle panel shown in Figure 2-3 provides electrical connections to the
Tabber/Labeler head from the transport base. This section describes the function of each
connection.
2.1.9.1 Power Receptacle
The POWER receptacle provides power to the Tabber/Labeler head. It is connected to
the head power receptacle using cable P/N 9101657A.
2.1.9.2 Output Receptacle
The output receptacle is connected to a stop relay on the transport base that stops the base
and head when a safety sensor is triggered. It is connected to the head I/O receptacle
using cable P/N 9101656A.
2.1.9.3 Encoder Receptacle
This receptacle provides communication from the encoder ENC+ and ENC- signals. It is
connected to the head Encoder receptacle using cable P/N 9101658A.
Buskro Ltd. BK730-2 Tabber
