3.1 Mechanical Adjustments
3.1.1 Tabber/Labeler Head Lateral Positioning
Buskro Ltd. BK730-2 Tabber
The Labeling head may be moved laterally in order to place labels on different locations
of the product. The head rests on two aluminum extrusion rails, which permits easy
lateral adjustment to achieve the desired labeling location.
During labeling operations, lateral positioning of the peel point must compensate for the
label’s width to ensure even label placement on the upper and lower side of the product.
Lateral positioning of the head is accomplished by first loosening the head position lock
handle (Figure 3-1) and then pushing or pulling the head in the desired direction. Once
this is done, the lock handle is retightened to secure the head in place.

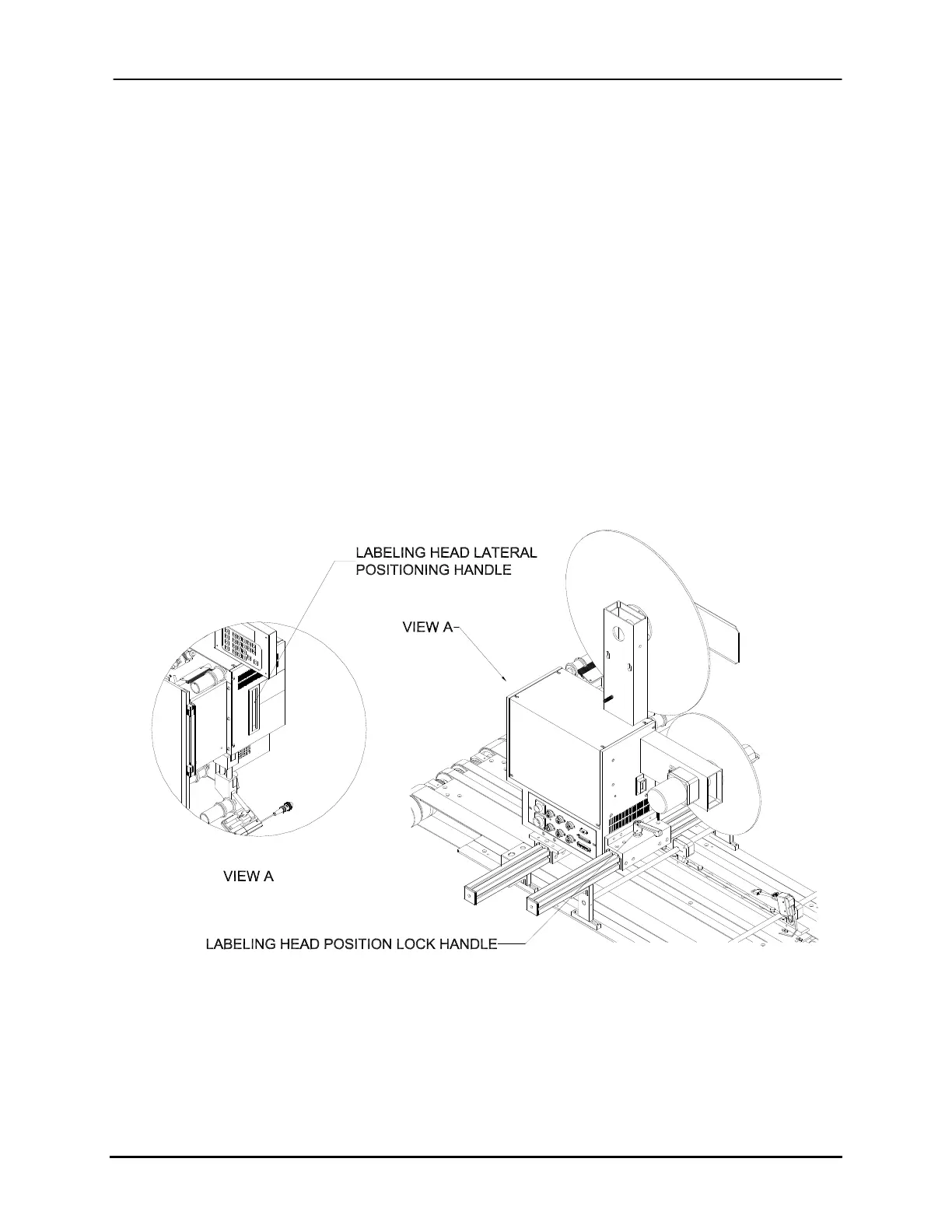

Figure 3-1: Illustration of the Labeling head lateral adjustment
