Table A-32: BKT730 Tabber Revision 2, Testing (BKT730-2)
Item Part Number Quantity Description Reference
1 402020 2 Screw, FHCS, 6-32 UNC x 3/8"
2 404510 14 Screw, BHCS, 10-32 UNF x 1/4"
3 405250 2 Screw, SHCS, 1/4-20 UNC x 3/4"
4 420008 3 Nut, 10-32 UNF
5 439009 3 Lockwasher, No. 10
6 440008 3 Washer, #10 ID
7 700537 1 Outfeed Roller Cover
8 700538 1 Front Protective Cover
9 803020 1 Label, High Voltage
10 9100869 2 Label, Hand Entanglement
11 9101560 1 Upper Transport Cover, Front
12 9101561 1 Upper Transport Cover, Rear
13 9101644 4 Sponge Rubber WeatherStripping,1/4x3/8x18YDS
14 9101888 1 Label, Downstream
15 9101889 1 Label, Conveyor In
16 9101891 1 Label, Upstream
17 9101892 1 Label, Conveyor Out
18 9103970A 1 Base, BK730-2 Tabber Version 2, 115 VAC Page A-39

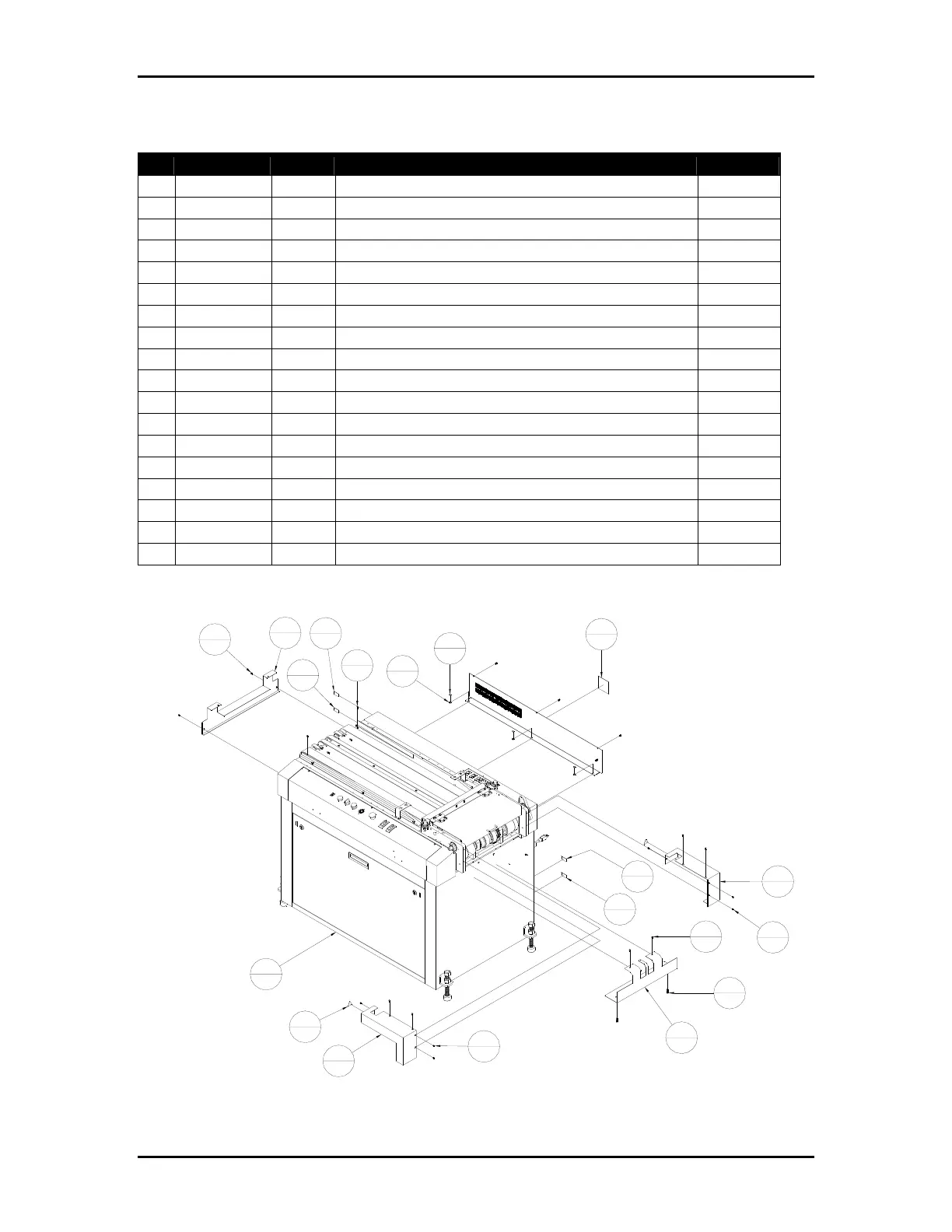

Figure A-33: BKT730 Tabber Revision 2, Testing (BKT730-2)
10
2
11
1
2
14
18
1
2
14
8
1
1
2
4
3
6
3
9
1
12
1
2
14
7
1
3
2
2
14
17
1
14
1
15
1
16
1
