Installation 138
Installing 15W or 30W power injector

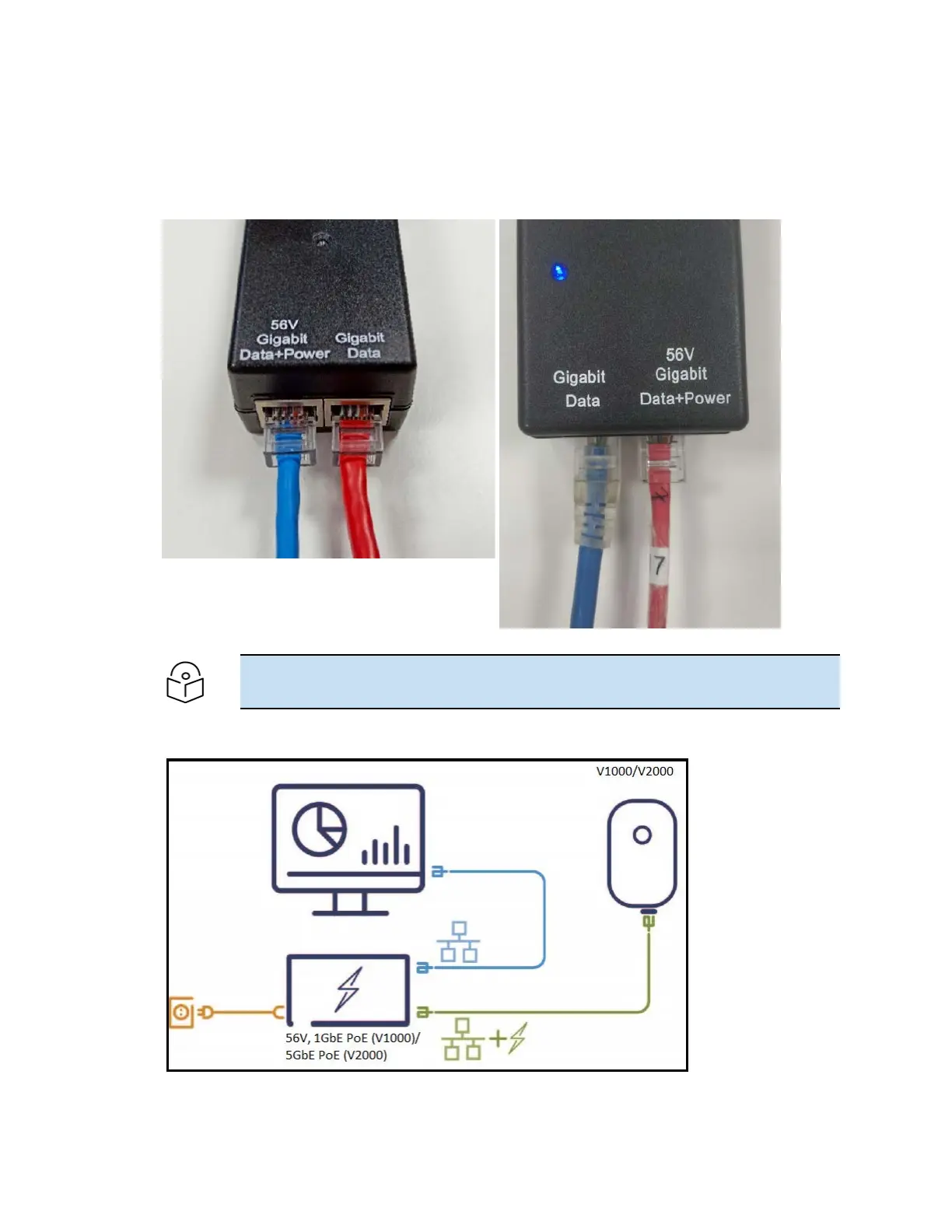

1. Connect the 56V Gigabit Data and power port to ODU (which can be either V1000 or V2000)
Figure 134:
V1000 Power injector
Figure 135:
V2000 Power injector
Note
30 W (N000000L034B) supports up to 5 GbE.
Figure 136:
V1000 or V2000 Powering diagram
