System Hardware 53
V1000 - Power over Ethernet (PoE)
The V1000 CN is always powered using Power over Ethernet (PoE) at a nominal 56V, as shown in the PoE
power supply to V1000 figure using the Gigabit power injector supplied with the radio, or using an IEEE
802.3af PoE output from an Ethernet switch.

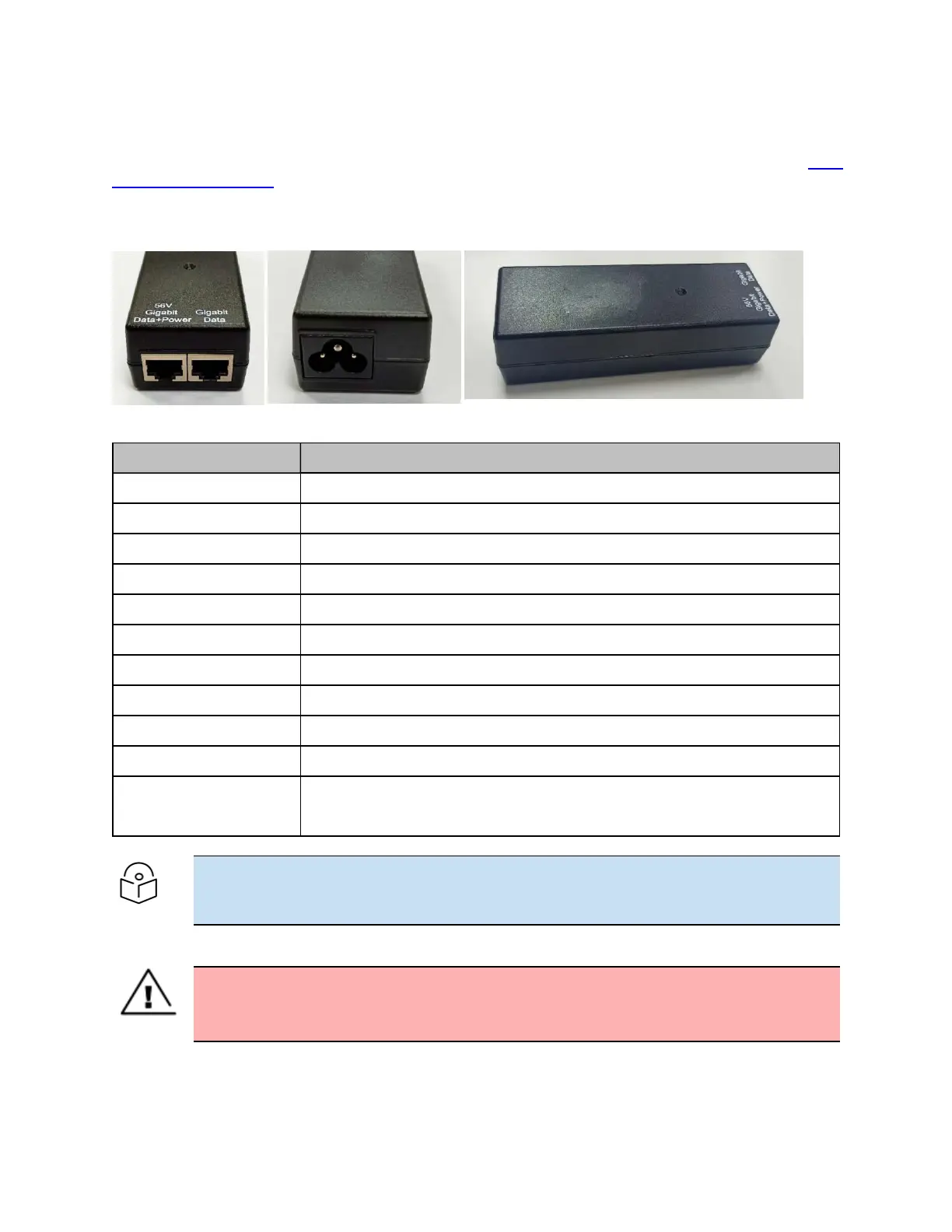

Figure 33:
PoE power supply to V1000
Table 17: PoE, 15W 56V, 1 Gigabit DC injector (N000900L017A)
Category Specification
Dimensions 118 mm (4.64 in) x 43 mm (1.69 in) x 32.4 mm (1.27 in)
Weight 0.18 Kg (0.39 lbs)
Temperature 0°C (32°F) to +50°C (140°F)
Humidity 10% to 95 % non-condensing
AC Input 90-264V AC, 47-63 Hz
DC Output Voltage 56V
DC Output current 0.25A
Efficiency Better than 84% at full load
Over Current Protection Hiccup mode, recovers automatically after the fault condition is removed
Hold up time At least 10 milliseconds
RJ45 POE Port 7,8 ------------- DC V-
5,6 ------------- DC V+
Note
The Gigabit power injector is supplied with the cnWave V1000 CN. Order part
N000900L017A to obtain spares.
Warning
Always use an appropriately rated and approved AC supply cord-set in accordance with the
regulations of the country of use.
