System Hardware 55

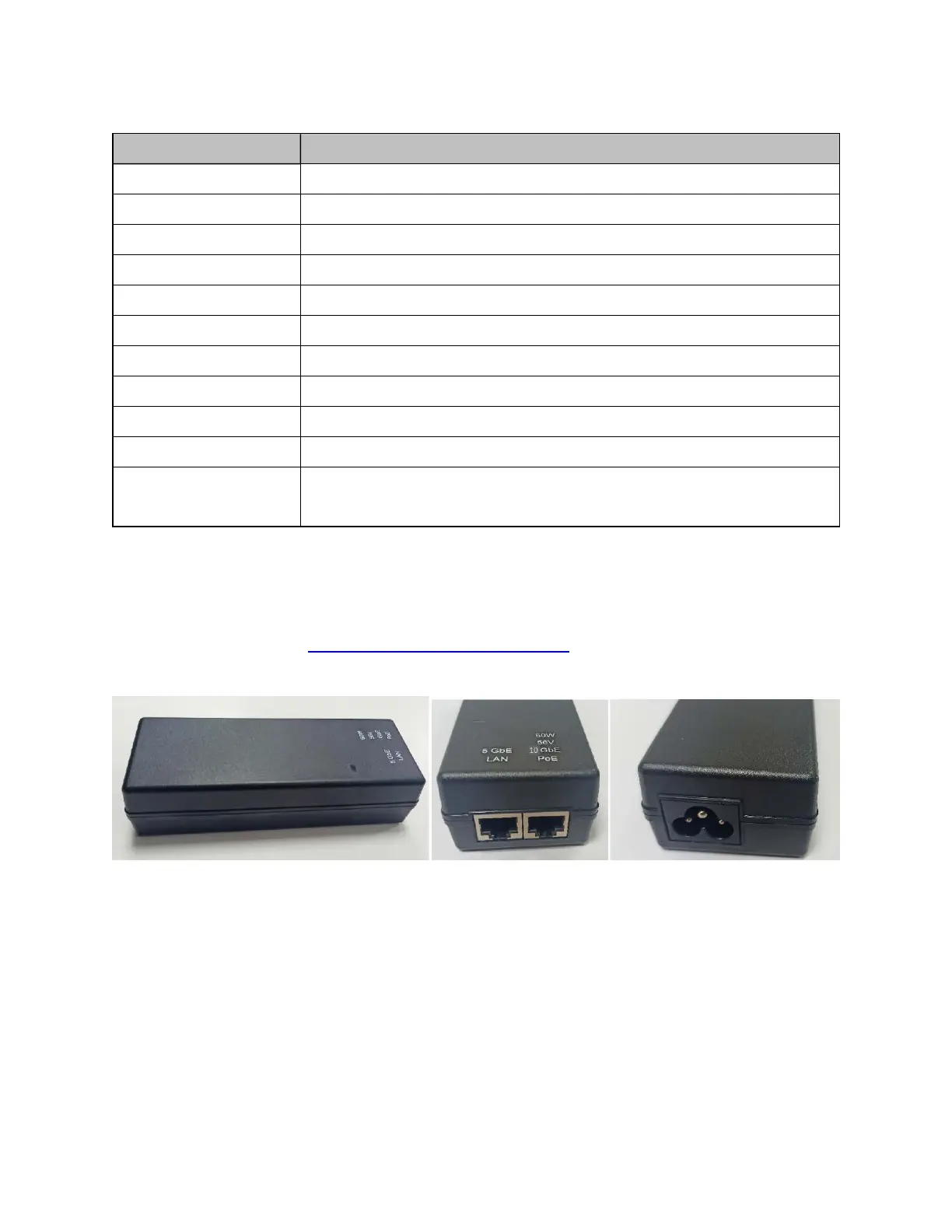

Table 18: PoE, 30W 56V, 5GbE DC injector (N000000L034B)
Category Specification
Dimensions 140 mm (5.5 in) x 53 mm (2.08 in) x 35 mm (1.37 in)
Weight 0.24 Kg (0.5 lbs)
Temperature 0°C (32°F) to +50°C (140°F)
Humidity 10% to 95 % non-condensing
AC Input 90-264 V AC, 47-63 Hz
DC Output voltage 56V
DC Output current 0.54 A
Efficiency Better than 88% at full load
Over Current Protection Hiccup mode, recovers automatically after the fault condition is removed
Hold up time At least 10 milliseconds
RJ45 POE Port 1,2,7,8 ------------- DC V-
3,4,5,6 ------------- DC V+
V3000/V5000 - PoE
The V3000 CN and V5000 DN can be powered using DC power at a nominal 54V, using 14 AWG or 16
AWG cable, as shown in the DC power supply to V3000 or V5000 figure.
Figure 36:
PoE power supply to V3000 or V5000
