Operation 228

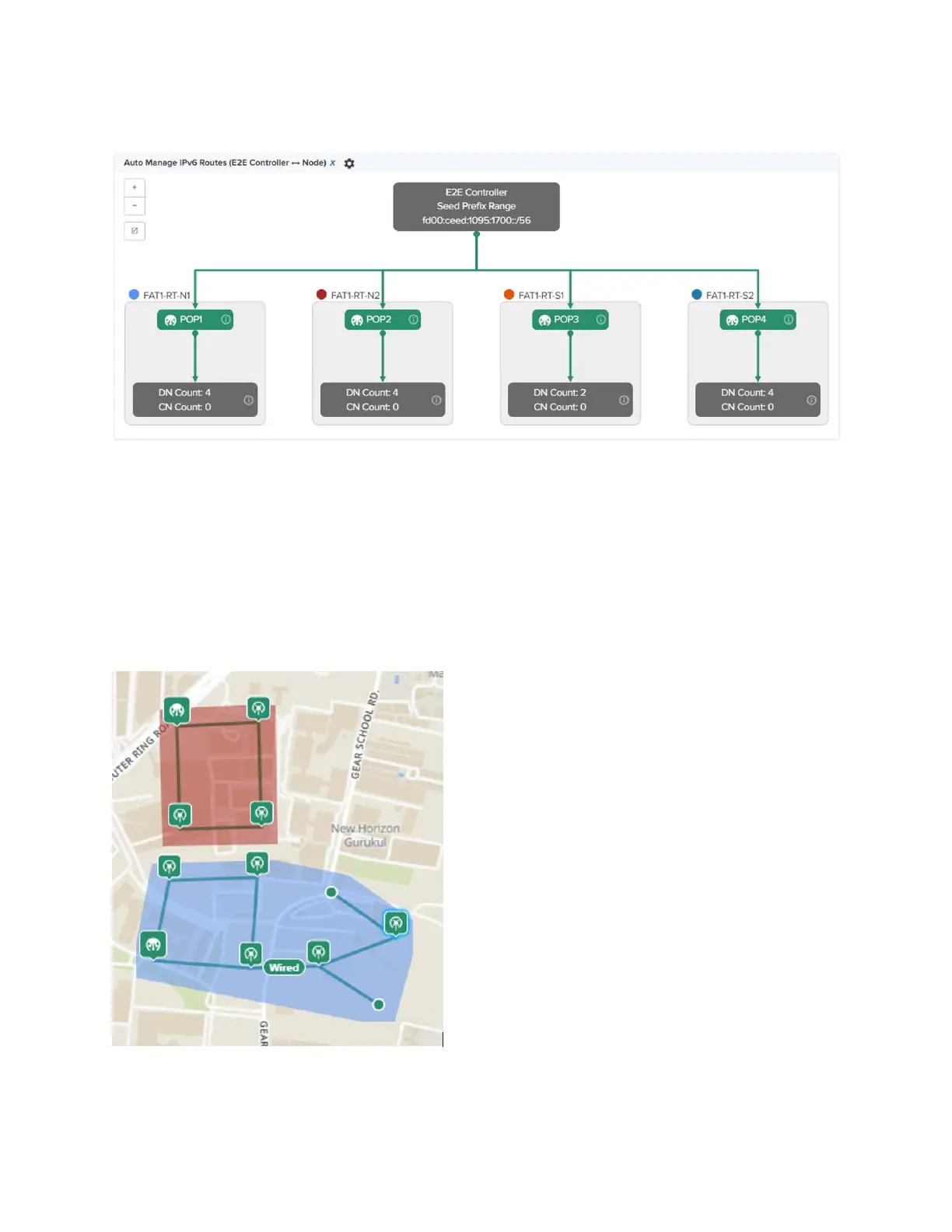

Figure 252:
Diagrammatic representation of IPv6 routes and traffic control
Unconnected PoPs
In a multi-PoP network, PoPs must be able to exchange openR packets either on wired or wireless path.
Otherwise, DNs might not receive the IPv6 address allocation and do not onboard to E2E Controller. This
is due to when Controller sends the Prefix Allocation message to one of the PoPs and expects the
message to reach other PoPs through openR.
In some cases, PoPs might be isolated temporarily, especially while building the network. Figure 253 is an
example that shows two unconnected zones.
Figure 253:
Unconnected zones due to isolated PoPs
To facilitate such a scenario, a new configuration parameter flags.enable_pop_prefix_broadcast has been
introduced in this release. This parameter supports the following Boolean values:
