System Planning 76
l 25 meters for V1000 and V5000
l 150 meters for V3000
l 60 meters for V2000
l In case of deployments where the range is less than 25 meters (for V1000 and V5000), 150
meters (for V3000), or 60 meters (for V2000) a short range or long range specific check
box is provided in the user interface (UI) to allow this.
l Deployment frequency range: 60 GHz cnWave products support the use of CH1 to CH4 (channels).
Deployment in these channels depends on the allowed channels in that region. Each channel is 2.16
GHz wide and the raster frequencies supported are - 58.32 GHz, 60.48 GHz, 62.64 GHz, and 64.8
GHz.
Sector and alignment
Each sector is an independent radio or a baseband unit. Each sector has 2 RF tiles connected to provide
extended azimuth scan range, as shown in Figure 50.

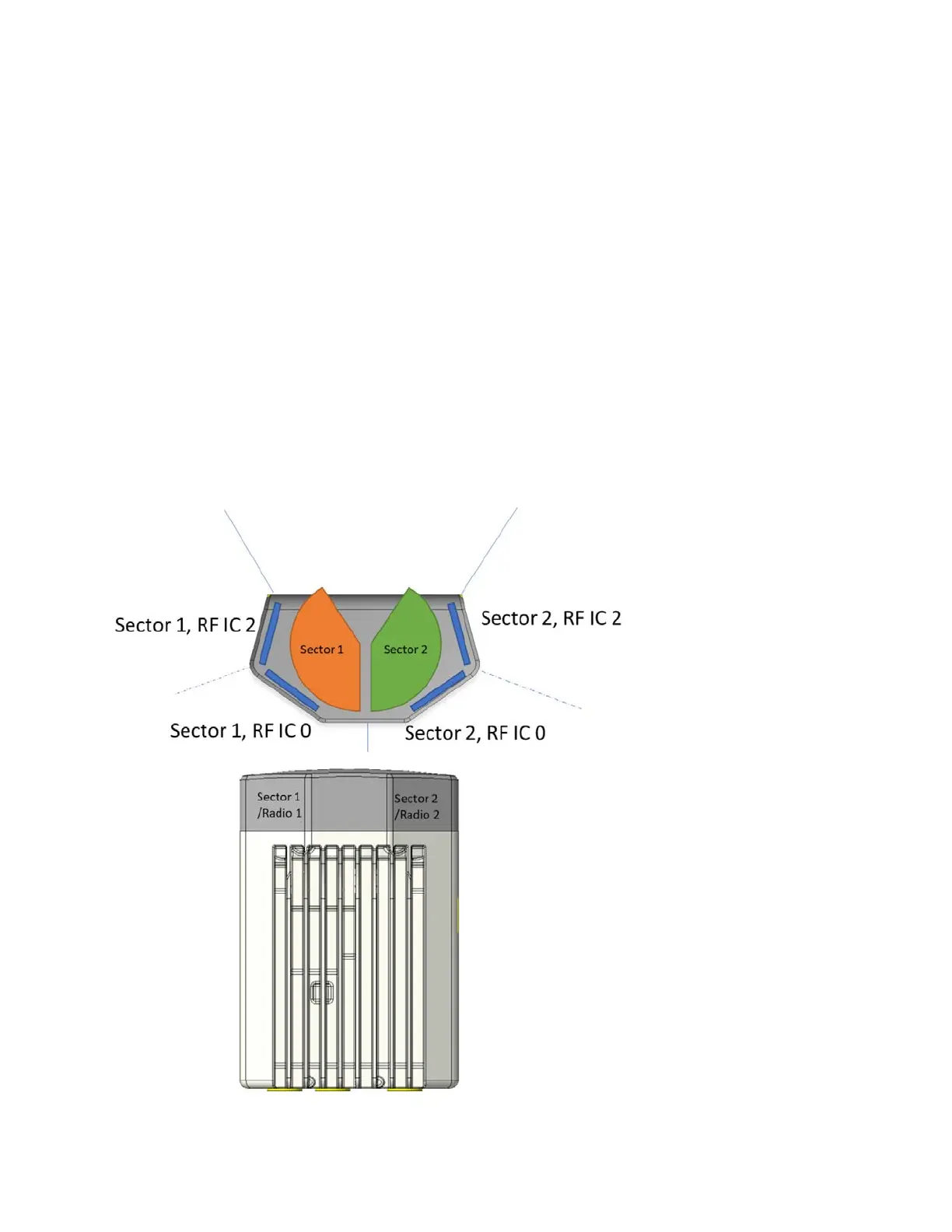

Figure 50:
The sector diagram
