Installation 145

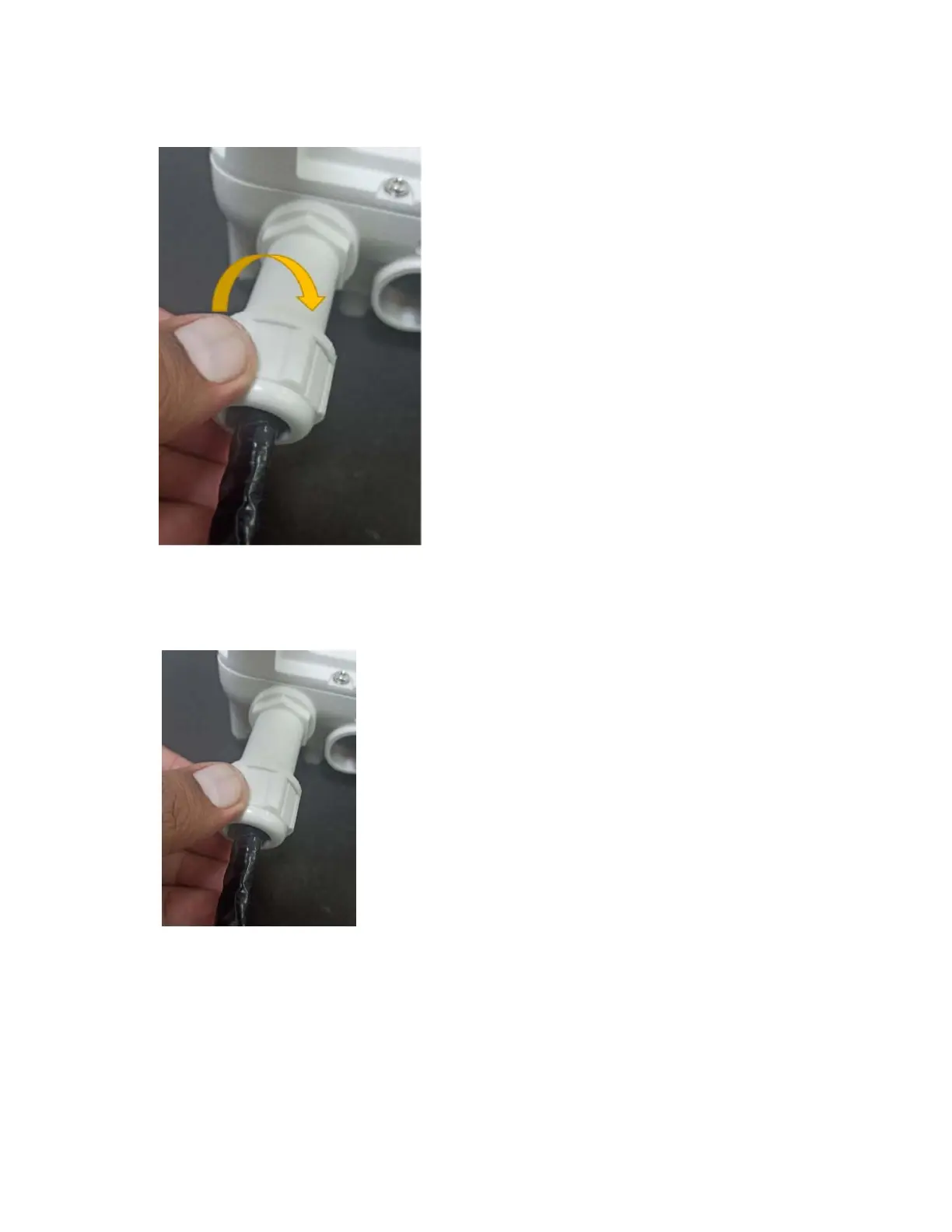

Figure 150:
Fitting the gland nut
3. Fit the gland nut to the rubble seal on the gland body and tighten it to a torque of 5.5 Nm (4.3 lb-
ft).
Figure 151:
Fitting the gland nut to the rubble seal
Removing the cable and SFP module
Do not attempt to remove the module without disconnecting the cable, otherwise, the locking
mechanism in the ODU will be damaged.
