Cambium Networks cnWave - V2000 - Poe

System Hardware 54
V2000 - PoE
The V2000 CN is always powered using POE at a nominal 56V using 5GbE POE Injector, which is optional
(Cambium part number: N000000L034B), or using an IEEE 802.3at POE output from an Ethernet
Switch.

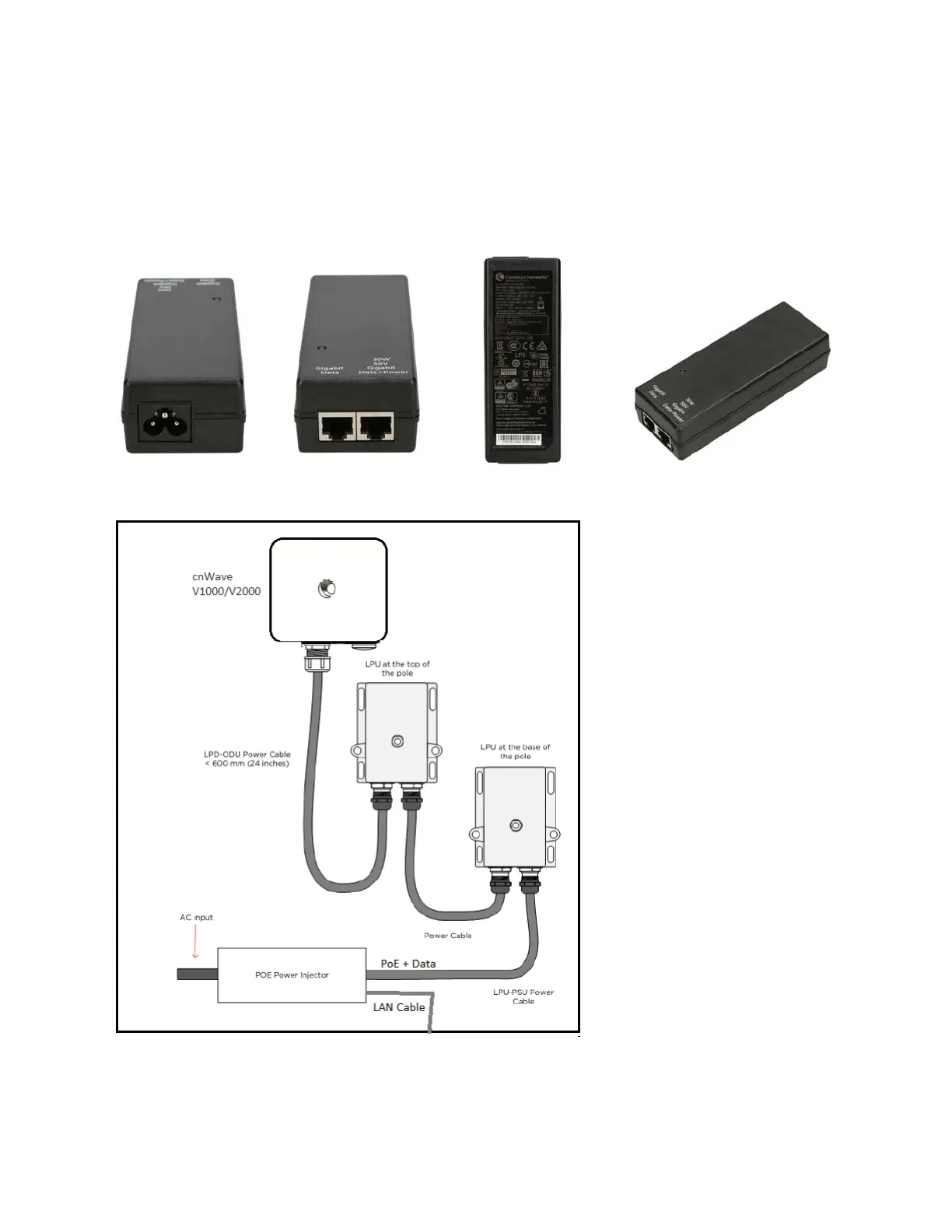

Figure 34: PoE power supply to V2000
Figure 35: Power supply to V1000 or V2000
