Installation 128

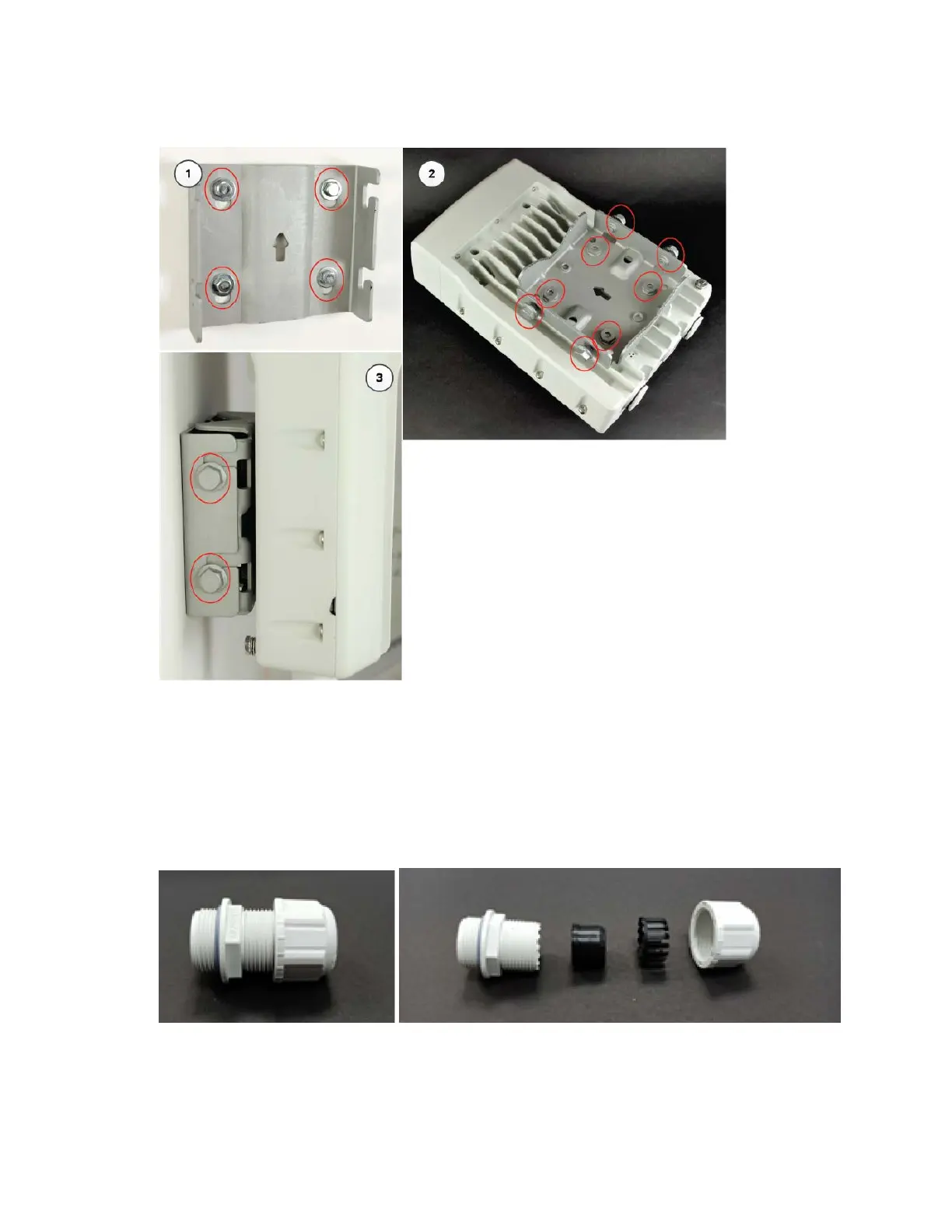

Figure 114:
Fixing the V5000 wall mount bracket
Connect to the PSU port of the radio
Using power over Ethernet (PoE)
1. Disassemble the gland and thread each part onto the cable (the rubber bung is split). Assemble
the spring clip and the rubber bung.
Figure 115:
Assembling the spring clip and the rubber bung
2. Fit the parts into the body and lightly screw on the gland nut (do not tighten it).
