Configuring 60 GHz cnWave™ 192

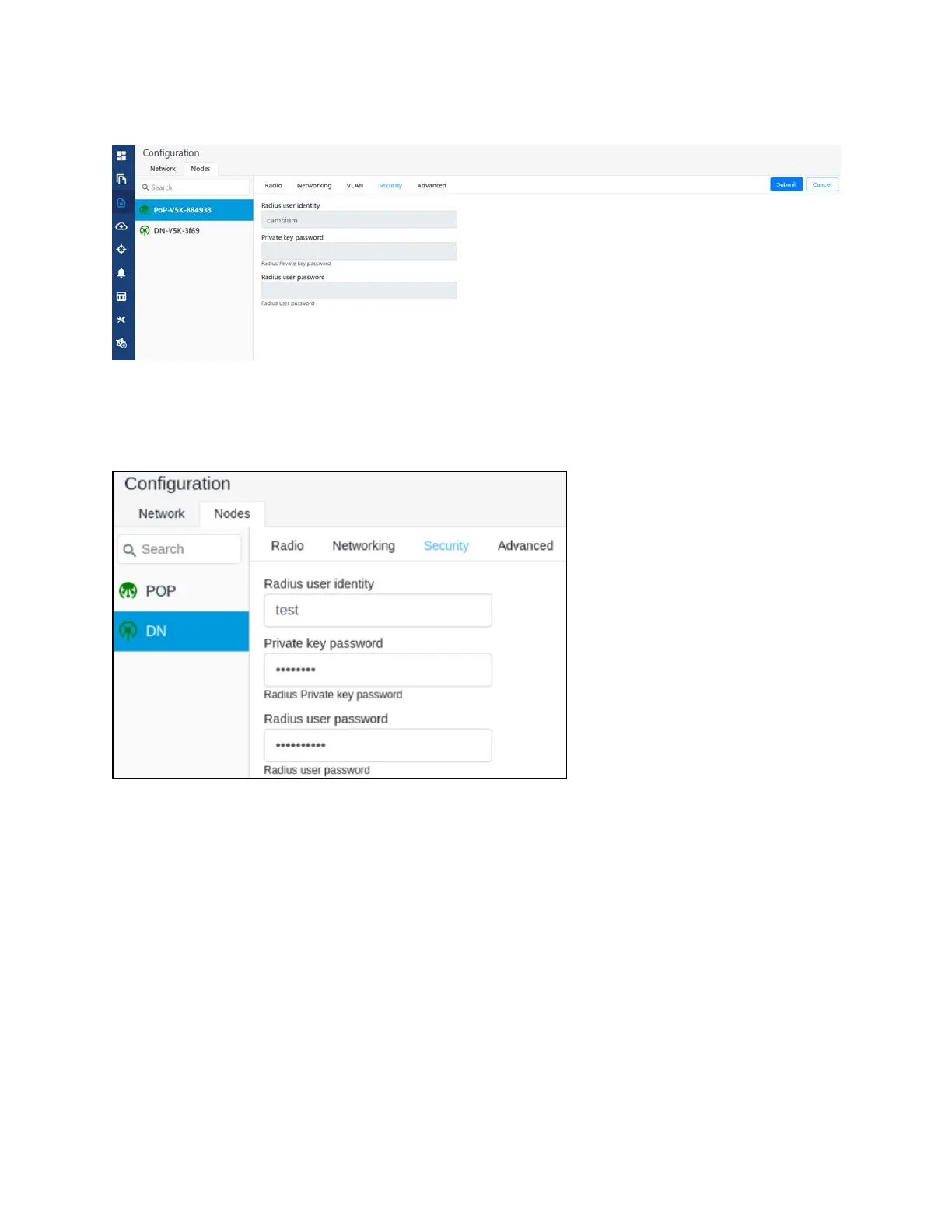

Figure 206:

The Security tab

Controller UI configuration

This Controller GUI configuration to be made on each DN.

Figure 207:

Elements specific to Controller configuration

Node UIconfiguration

You can configure the Security page for a single node. The Security page is available on the single node

UI.
