Operation 199

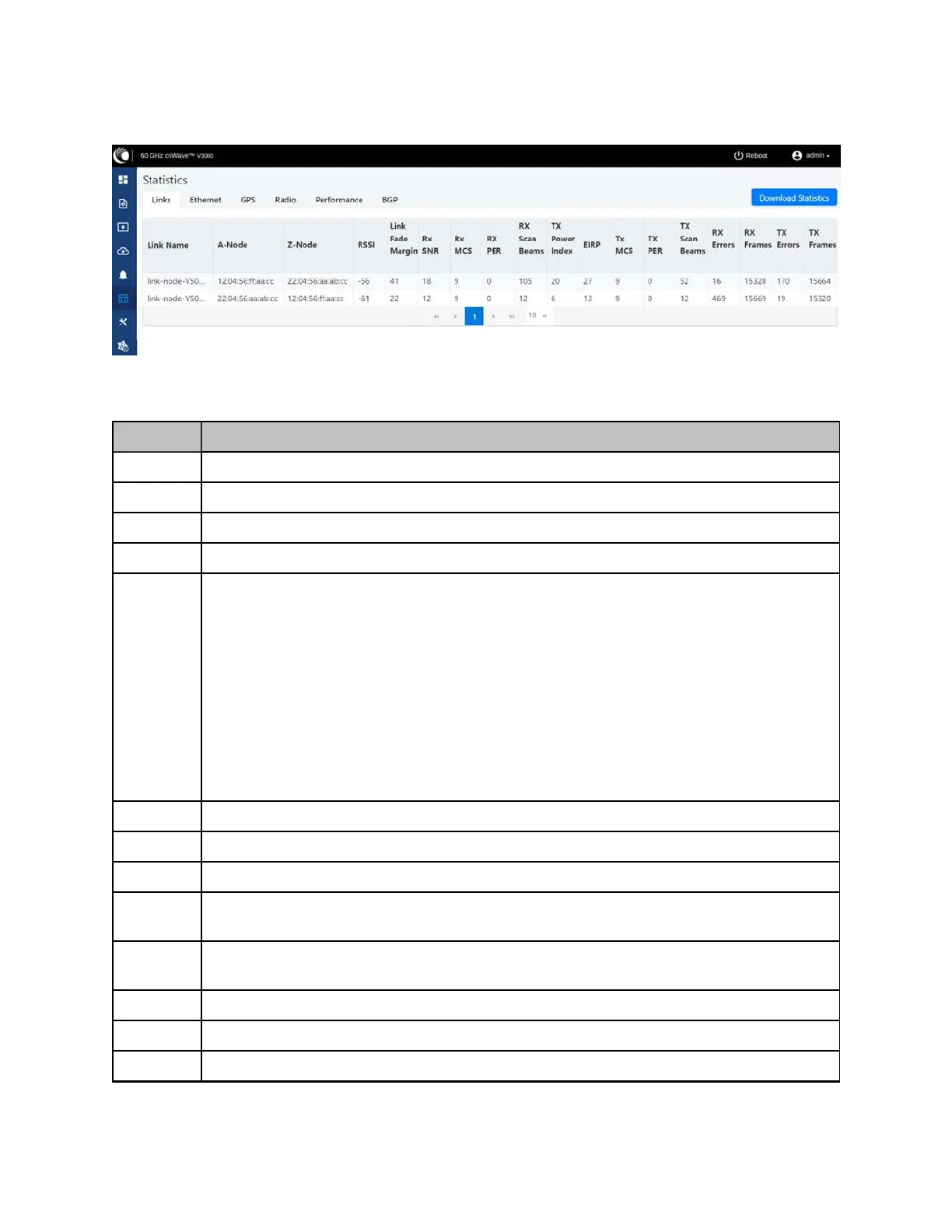

Figure 212:
The Links page
The Links page displays the following elements:
Table 47: Elements in the Links page
Elements Description
Link Name Link name
A-Node Initiator Node
Z-Node Responder Node
RSSI Receiver Signal Strength Indicator
Link Fade
Margin
The statistic value (in dB) available for each RF link
The LinkFade Margin statistic values help operators to quickly assess any additional
system gain or low marginal RF links (if any), which must be addressed.
The LinkFade Margin statistic value calculation is based on:
l Checking the RSSI received from a remote transmitter,
l Assessing the availability of TX power (from the remote transmitter), and
l Considering the RSSI value that is calculated based on how far away it is from an
established receiver sensitively floor of -72 dBm.
Rx SNR Signal to Noise Ratio
Rx MCS Modulation Code Scheme of Receiver
RX PER Receiver packer error rate
RX Scan
Beams
Receiver scan beam index
TX Power
Index
Transmitter power index
EIRP The Effective Isotropic Radiated Power (EIRP) value.
TX MCS Modulation Code Scheme of Transmitter
TX PER Transmitter packer error rate
To Next Page
