Product Description 28

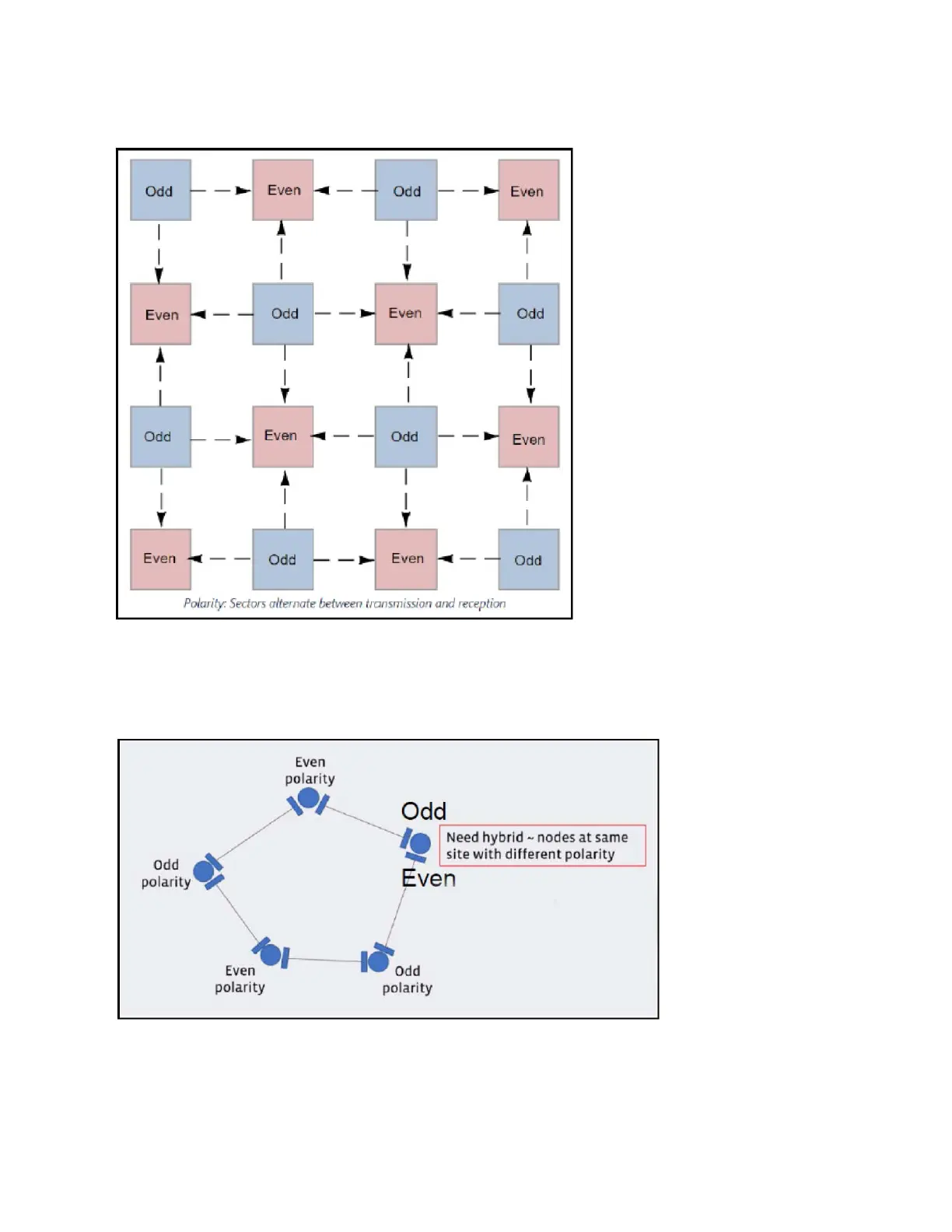

Figure 10: Odd and even polarities
The MAC synchronizes its timers to an external, accurate time source, such as GPS or IEEE 1588. A timing
pulse that resets the Timing Synchronization Function (TSF) on the DN is repeated once every second.
This timing pulse occurs exactly at the turn of each second.
Figure 11: The MAC synchronization
