System Hardware 37

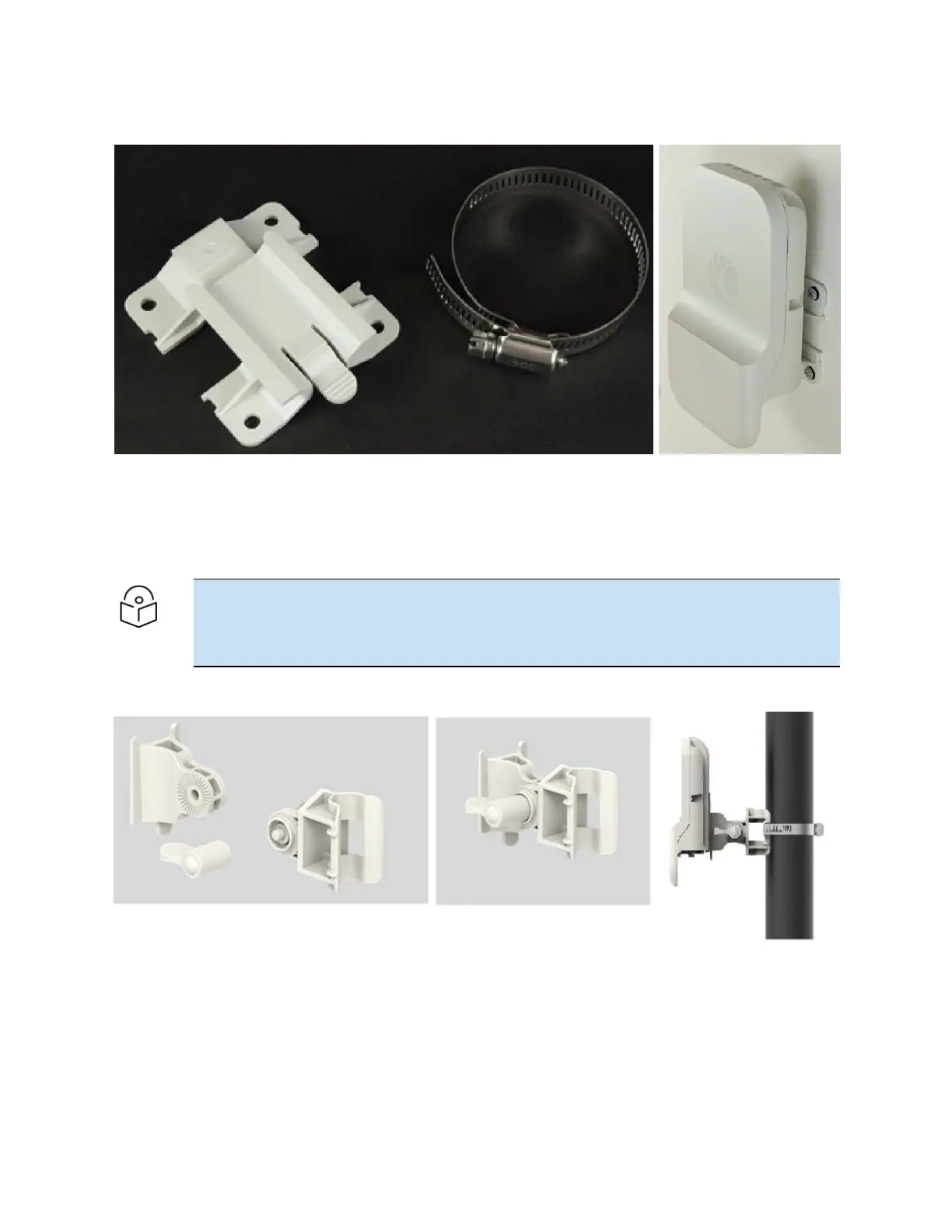

Figure 16:
V1000 mounting plate and band clamp
V1000 Adjustable pole mount (N000900L022A)
The adjustable pole mount is used to provide elevation adjustment when a V1000 CN is mounted on a
pole. The adjustable pole mount works with poles with diameters in the range of 25 mm to 70 mm (1 inch
to 2.75 inches).
Note
The adjustable pole mount does not come with a clamp. You can use the one that is supplied
with the V1000 box. Larger diameter poles can be accommodated with the customer
supplied clamps.
Figure 17:
V1000 adjustable pole mount
V2000 Adjustable pole mount
The V2000 CN is supplied with adjustable pole mounting accessories such as mounting plate, a hose
clamp, and four screws (as shown in Figure 18). These mounting accessories can be used to mount the
V2000 CN on a vertical pole.
