System Hardware 66

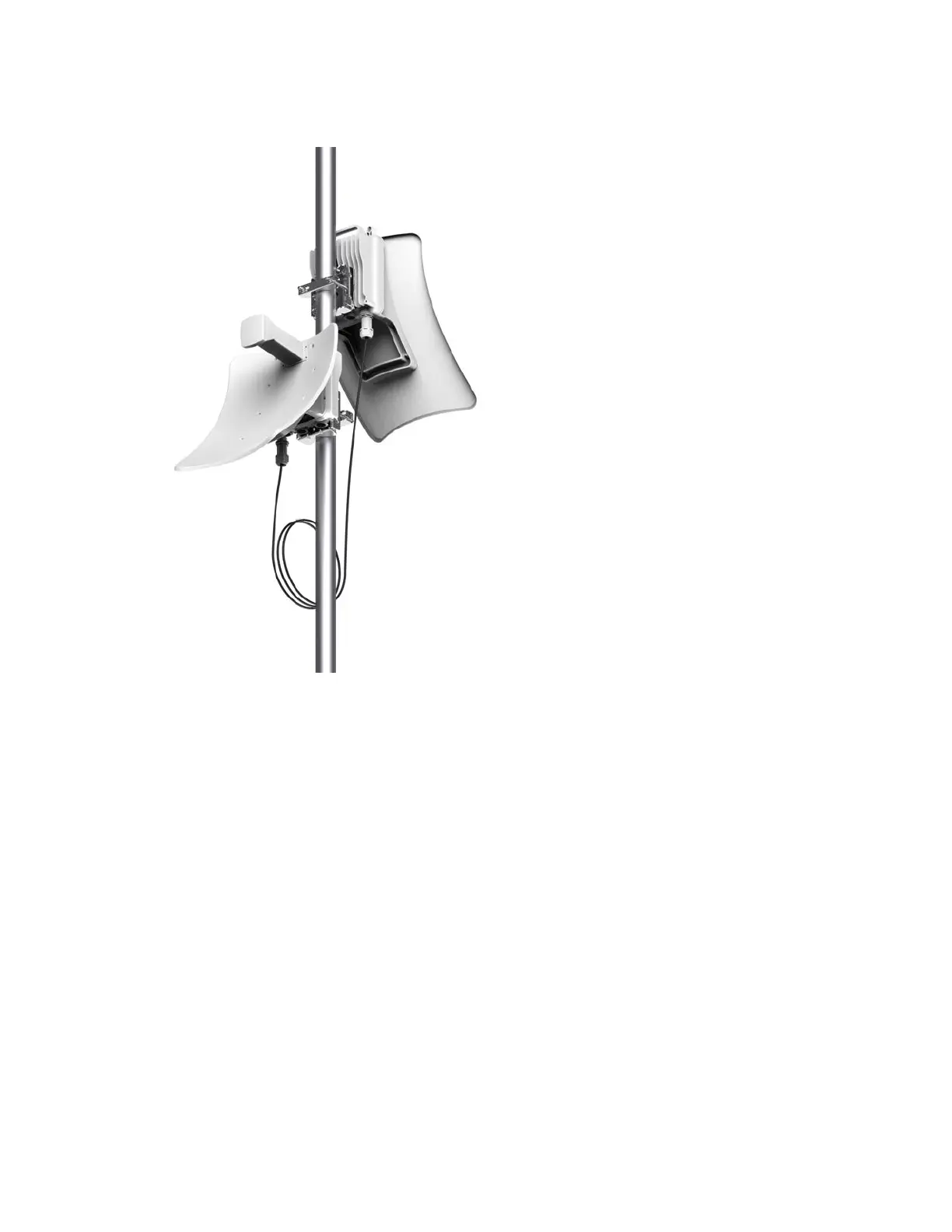

Figure 46:
V3000-to-V3000 backhauled link connectivity using a DAC cable
l Connecting a V5000 device backhauled by a V3000 device
When setting up point-to-multipoint links with the V5000 device as a distribution node (DN), if the
fiber PoP is not available near the V5000 device node, a V3000 to V3000 backhaul point-to-point
link is setup. For connecting V3000 to V5000, the DAC cable is recommended (as shown in Figure
47).
