Points to note when installing a lower entrance guide
[Symptom/Question]

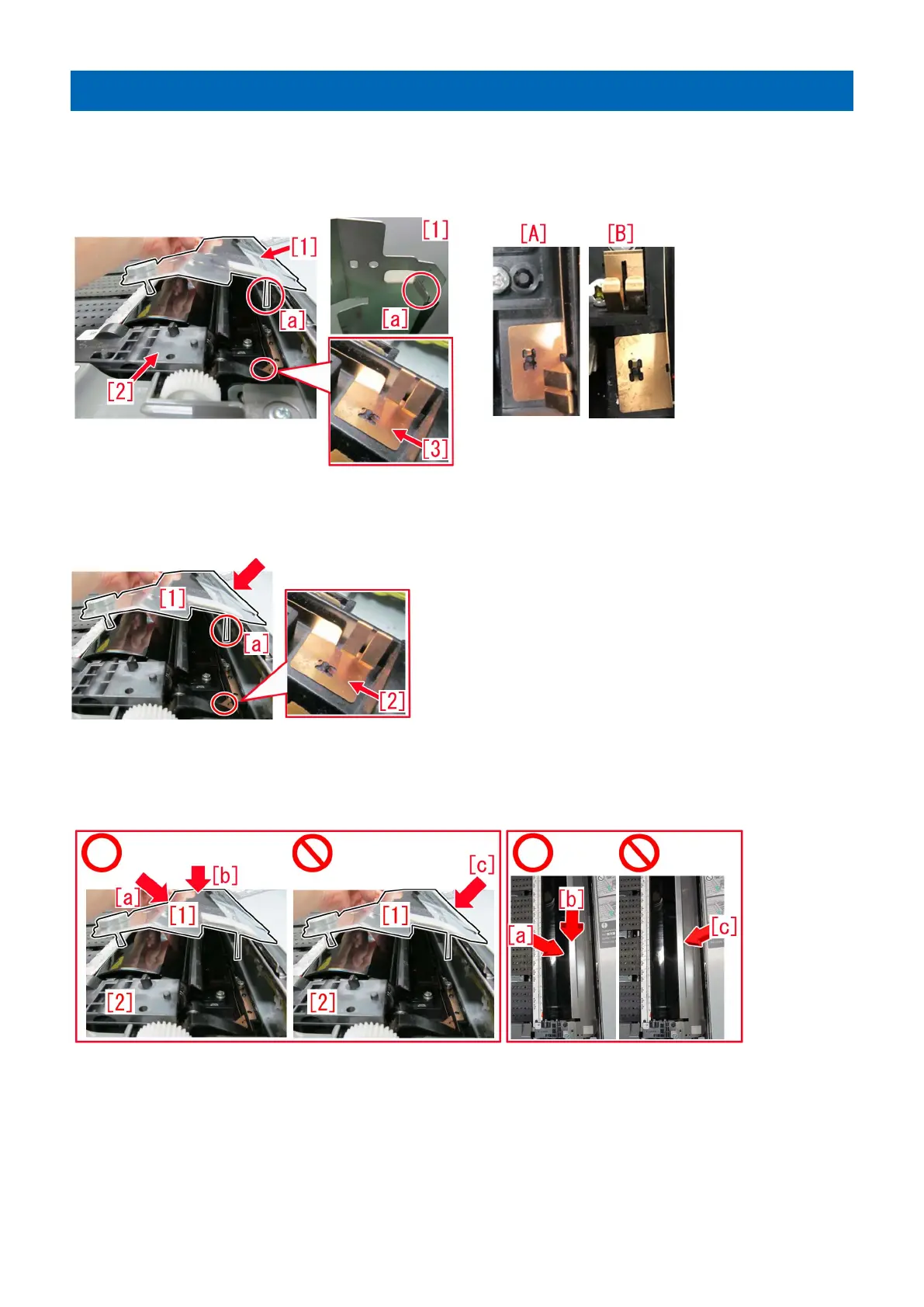

When installing a lower entrance guide [1] to the secondary transfer outer roller holder (front) [2], it could damage a varistor plate
[3].
[A] is the normal state and [B] is showing the damaged varistor plate which was broken from the base.
[Cause]
When installing a lower entrance guide [1] from the direction shown in arrow below, the bent part [a] of the lower entrance guide
could hit the varistor plate [2], causing the above symptom.
[Remedy/Answer]
1) When installing a lower entrance guide [1] to the secondary transfer outer roller holder (front) [2], be careful with the direction
to be installed.
[a] or [b] is the correct direction, while [c] is the wrong direction to be installed.
