Gloss lines on image due to the scratches on the surface of fixing
roller which the refresh roller gives in its operation
[Symptom]
When installing the product or when feeding the coated paper during the initial period ( feeding approx. 30,000 sheets) after the
refresh roller replacement, thin gloss lines in the paper feed direction might occur on a main body whose serial number is earlier
than the following countermeasure cut-in serial numbers in factory.
[Note] Gloss lines are remarkable especially with coated paper.
[Cause]
The refresh roller presses onto the fixing roller and scrapes the surface layer of the fixing roller under the specified conditions in
order to remove the streaky scratches appears on the fixing roller in a large quantity of printout.
However, as the surface of a new refresh roller is somewhat rough, the refresh roller might give fine scratches to the fixing roller
in its operation and this result in the above mentioned symptom.
[Service work]
When the aforementioned symptom has occurred, prepare and replace with the new type refresh roller (FM1-T299-000) referring
to the service manual.

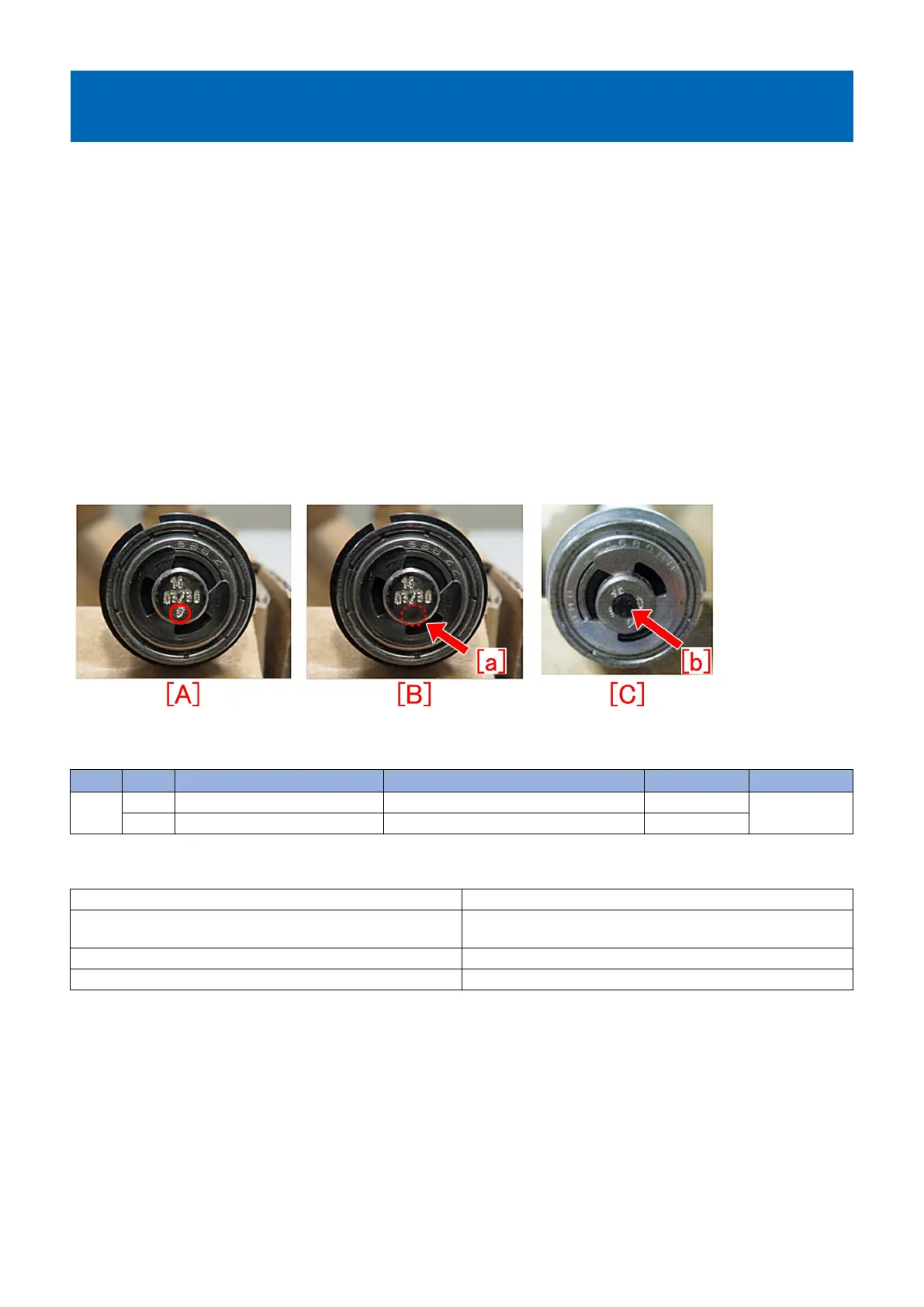

Photo [A] shows the old-type refresh roller shaft, photo [B] and [C] show the new type.
Change the engraving [a] on the roller shaft or mark [b] the center of the roller shaft with a black permanent marker.
[Service parts]
No. Part Number Description Q'ty Fig.No.
1 Old FM3-1648-010 ROLLER UNIT, REFRESH 1 -> 0 815
855
New FM1-T299-000 ROLLER UNIT, REFRESH 0 -> 1
[Countermeasure cut-in serial numbers in factory]
Model Serial number
imagePRESS C10000VP Series FS US/J WBE10515
WBE10521 or later
imagePRESS C10000VP Series FS EUO WBF10519
imagePRESS C10000VP Series FS CN WBG00522
- imagePRESS C6000/C6000VP/C7000VP/C7000VPE/C6010/C6010VP/C7010VP/C6011/C6011VP/C7011VP : No
implemented due to production discontinuance.
55
