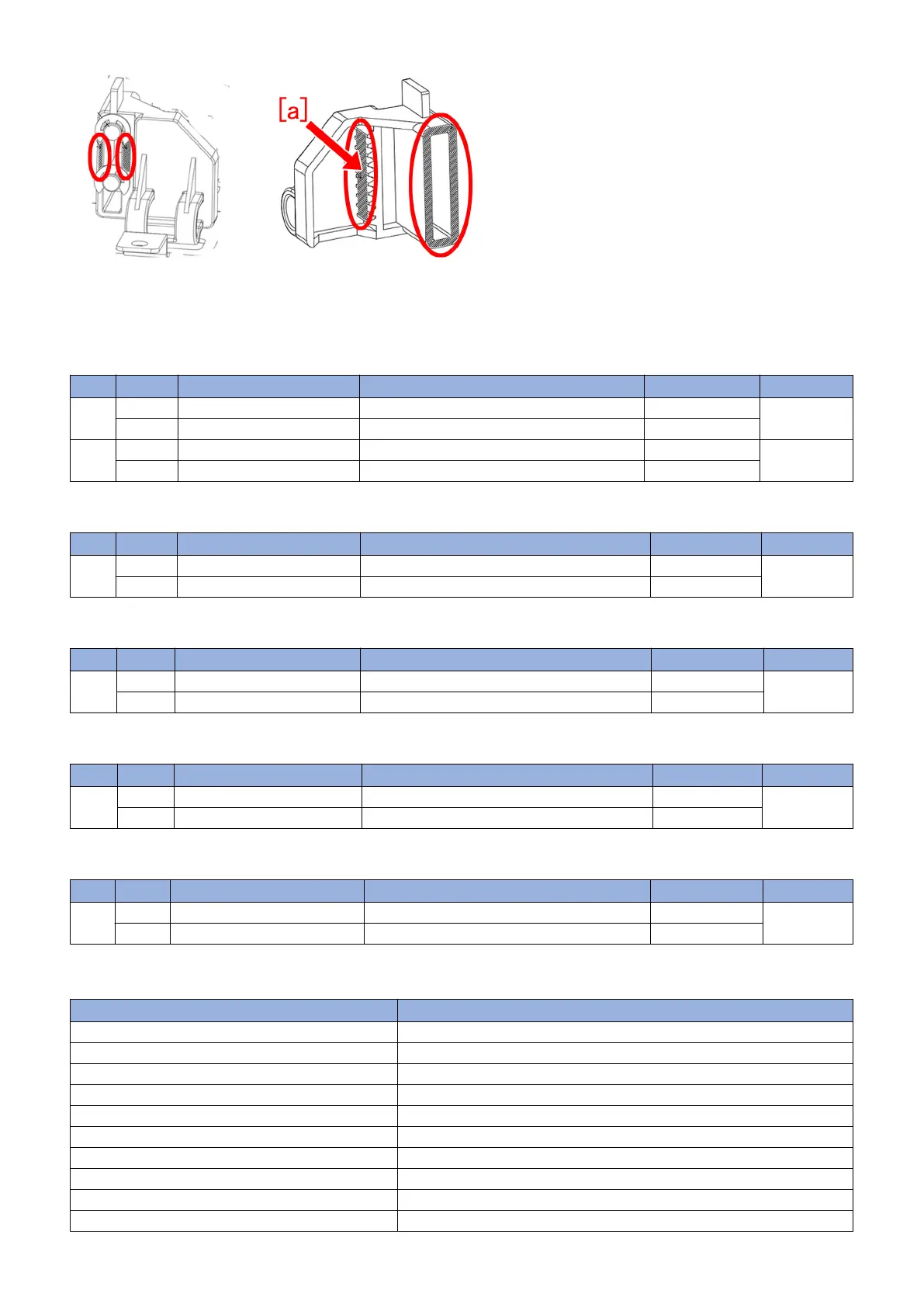

B-8) Reassemble the parts in reverse order from the step B-3). Use new e-rings (XD9-0135-000) when doing so.
[Service parts]
(Common to models)
No. Part Number Description Q'ty Fig. No.
1
Old XD9-0135-000 RING, E 5 -> 5
New
2
Old
New HY9-0007-000 LUBE, MOLYKOTE EM-50L, GREASE 0 -> 1
(Staple Finisher-Q1 / Booklet Finisher-Q1)
No. Part Number Description Q'ty Fig. No.
1
Old FM1-A196-000 UPPER FEEDER ASSEMBLY 1 -> 0
L38
New FM1-A196-010 UPPER FEEDER ASSEMBLY 0 -> 1
(Finisher-AM1 / Saddle Finisher-AM2)
No. Part Number Description Q'ty Fig. No.
1
Old FM1-C358-000 UPPER FEEDER ASSEMBLY 1 -> 0
L38
New FM1-C358-010 UPPER FEEDER ASSEMBLY 0 -> 1
(Staple Finisher-W1 / Booklet Finisher-W1)
No. Part Number Description Q'ty Fig. No.
1
Old FM1-K156-000 UPPER FEEDER ASSEMBLY 1 -> 0
L38
New FM1-K156-010 UPPER FEEDER ASSEMBLY 0 -> 1
(Finisher-AN1 / Saddle Finisher-AN2)
No. Part Number Description Q'ty Fig. No.
1
Old FM1-K515-000 UPPER FEEDER ASSEMBLY 1 -> 0
L38
New FM1-K515-010 UPPER FEEDER ASSEMBLY 0 -> 1
[Countermeasure cut-in serial numbers in factory]
Model Serial No.
Staple Finisher-Q1 UL To be informed as soon as identified.
Staple Finisher-Q1 EU/O To be informed as soon as identified.
Booklet Finisher-Q1 UL To be informed as soon as identified.
Booklet Finisher-Q1 EU/O To be informed as soon as identified.
Staple Finisher-W1 UL SWT50905
Staple Finisher-W1 EU/OT SWU50686
Staple Finisher-W1 CN WJN50058
Booklet Finisher-W1 UL SWW51842
Booklet Finisher-W1 EU/OT SWX51362
Booklet Finisher-W1 CN WJP50035
226
