Canon imagePRESS C10000VPSeries - Page 50

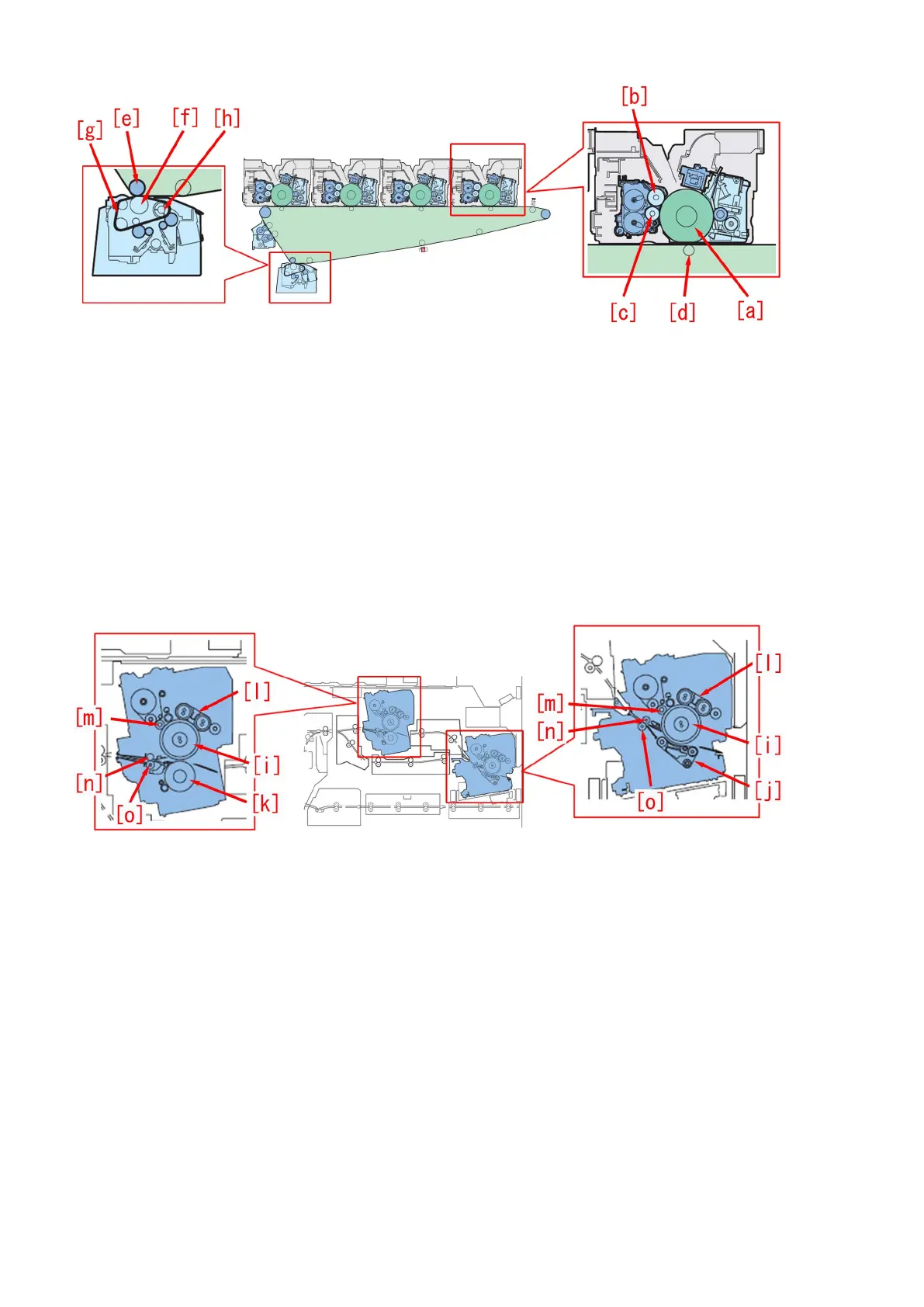

a) When the interval is 264 mm pitch, check Drum [a].
b) When the interval is 55 mm pitch, check Developing Upper Cylinder [b] of the DEVELOPING ASSEMBLY (FM1-A304).
c) When the interval is 45 mm pitch, check Developing Lower Cylinder [c] of the DEVELOPING ASSEMBLY (FM1-A304).
[Note] If the failure occurs in all the colors, check Fixing Inner Delivery Upper Roller [o].
d) When the interval is 50 mm pitch, check Primary Transfer Roller [f] (FC8-6852).
[Note] If the failure occurs in all the colors, check Fixing Inner Delivery Lower Roller [n].
e) When the interval is 66 mm pitch, check Secondary Transfer Inner Roller [e] of the 2ND TRNSFR. INNER ROLLER ASS'Y
(FM1-A359).
f) When the interval is 75 mm pitch, check Secondary Transfer Outer Roller [f] (FE4-6066).
g) When the interval is 198 mm pitch, check Secondary Transfer Outer Belt [g] (FE3-1953).
h) When the interval is 69mm pitch, check Secondary Transfer Outer Belt Drive Roller [h] of the BELT DRIVE ROLLER
ASSEMBLY (FM1-M250).
i) When the interval is 252mm pitch, check Fixing Roller [i] (FL1-1151) of the Primary Fixing Assembly or Secondary Fixing
Assembly.
j) When the interval is 220 mm pitch, check Pressure Belt [j] (FL0-0358) of the Primary Fixing Assembly.
k) When the interval is 190 mm pitch, check Pressure Roller [k] (FL0-0515) of the Secondary Fixing Assembly.
l) When the interval is 189mm, check External Heat Belt [l] (FE3-1881) of the Primary Fixing Assembly or Secondary Fixing
Assembly.
l) When the interval is 189mm, check External Heat Belt [l] (FE3-1881) of the Primary Fixing Assembly or Secondary Fixing
Assembly.
n) When the interval is 50mm, check Fixing Inner Delivery Lower Roller [n] (FC5-9775) of the Primary Fixing Assembly or
Secondary Fixing Assembly.
[Note] If the failure occurs only for any color of Y/M/C/B, check Primary Transfer Roller[d].
o) When the interval is 45mm, check Fixing Inner Delivery Upper Roller [o] (FC7-4644/ FM1-K630) of the Primary Fixing Assembly
or Secondary Fixing Assembly.
[Note] If the failure occurs only for any color of Y/M/C/B, check Developing Lower Cylinder[c] of the Developing Assembly.
