INSTALLATION 24
Checking the customer site
Before you install the imagePRESS Server, check site conditions and inform the customer of
any installation requirements.
Copier readiness
Is the copier configured for use with the imagePRESS Server? (For the proper settings, see
the documentation that accompanies the copier.)
Is the service mode COPIER>OPTION>INT-FACE>IMG–CONT set to 3?
Has the Open Interface Board Kit been installed in the copier (see the documentation
that accompanies the media pack).
Is space available near the copier for the imagePRESS Server?
Make sure that adequate space is available for the imagePRESS Server. Allow enough
space at the back panel for the cables to route easily and at the side panel so that the
imagePRESS Server does not interfere with use of or service to the copier (such as clearing
a paper jam). You may need to move the copier away from the wall so that the interface
connectors are accessible.
Does the copier require service or adjustments?
Print the copier Test Page before you install the imagePRESS Server.
If the image indicates that the copier needs adjustment, inform the customer. After getting
approval, complete the necessary copier service.
Power
Is a dedicated, grounded electrical outlet for the imagePRESS Server available near
the copier?
Locate the grounded electrical outlet that will supply power to the imagePRESS Server. Do
not run the imagePRESS Server and the copier on the same circuit. Use a surge suppressor for
the imagePRESS Server if the customer has provided one.
• Do not use a 3-prong adapter in a 2-hole ungrounded outlet.
• Do not use an extension cord.
• Do not plug the imagePRESS Server into a circuit with heating or refrigeration equipment
(including water coolers).
• Do not plug the imagePRESS Server into a switchable wall outlet. This can result in the
imagePRESS Server being turned off accidentally.
• Do not pull on the cable when unplugging the imagePRESS Server. Pull the plug, instead.

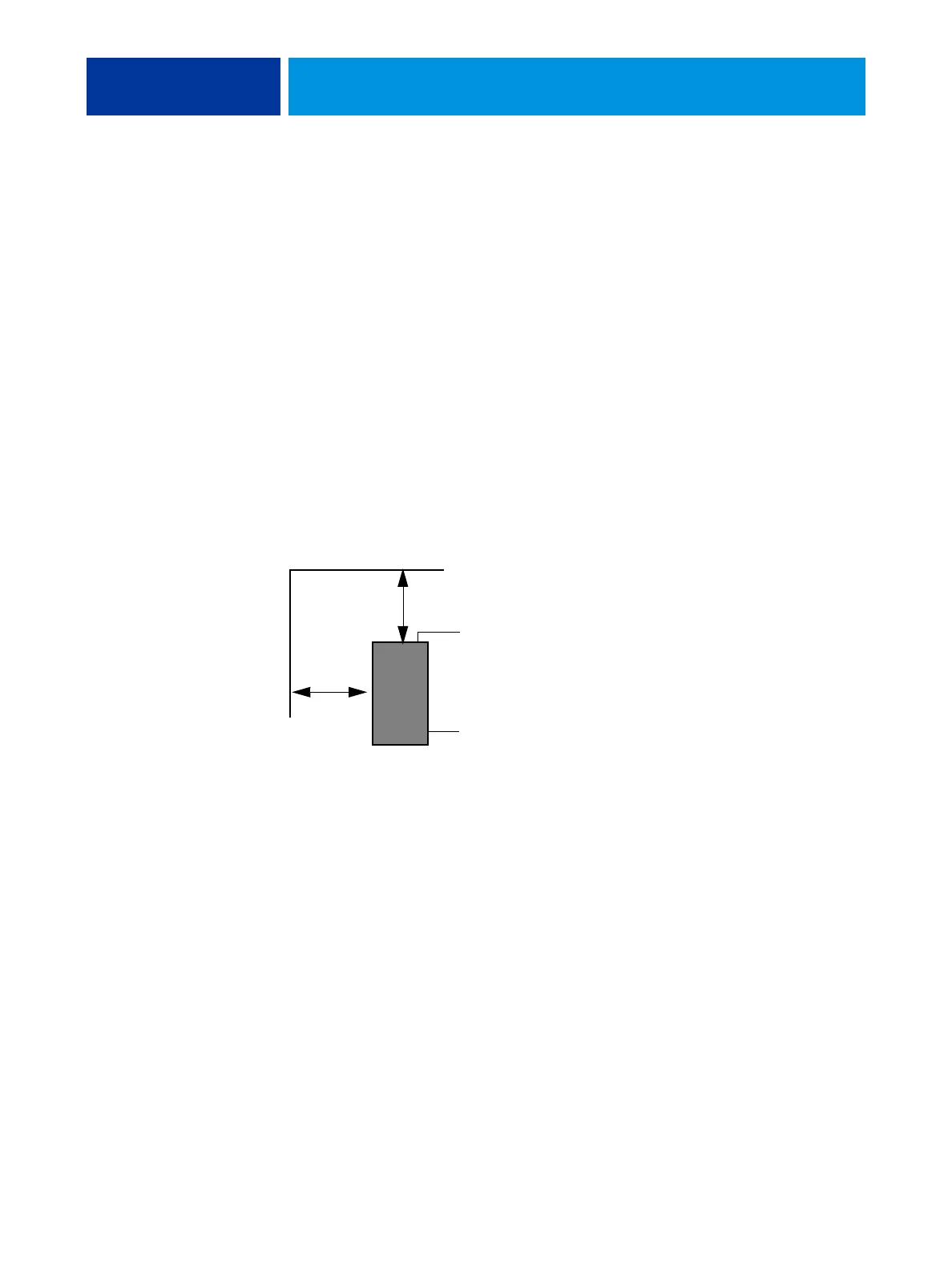

Back panel
Side panel
20cm+ (8 in.)
imagePRESS Server
20cm+ (8 in.)
To Next Page
