SERVICE PROCEDURES 89

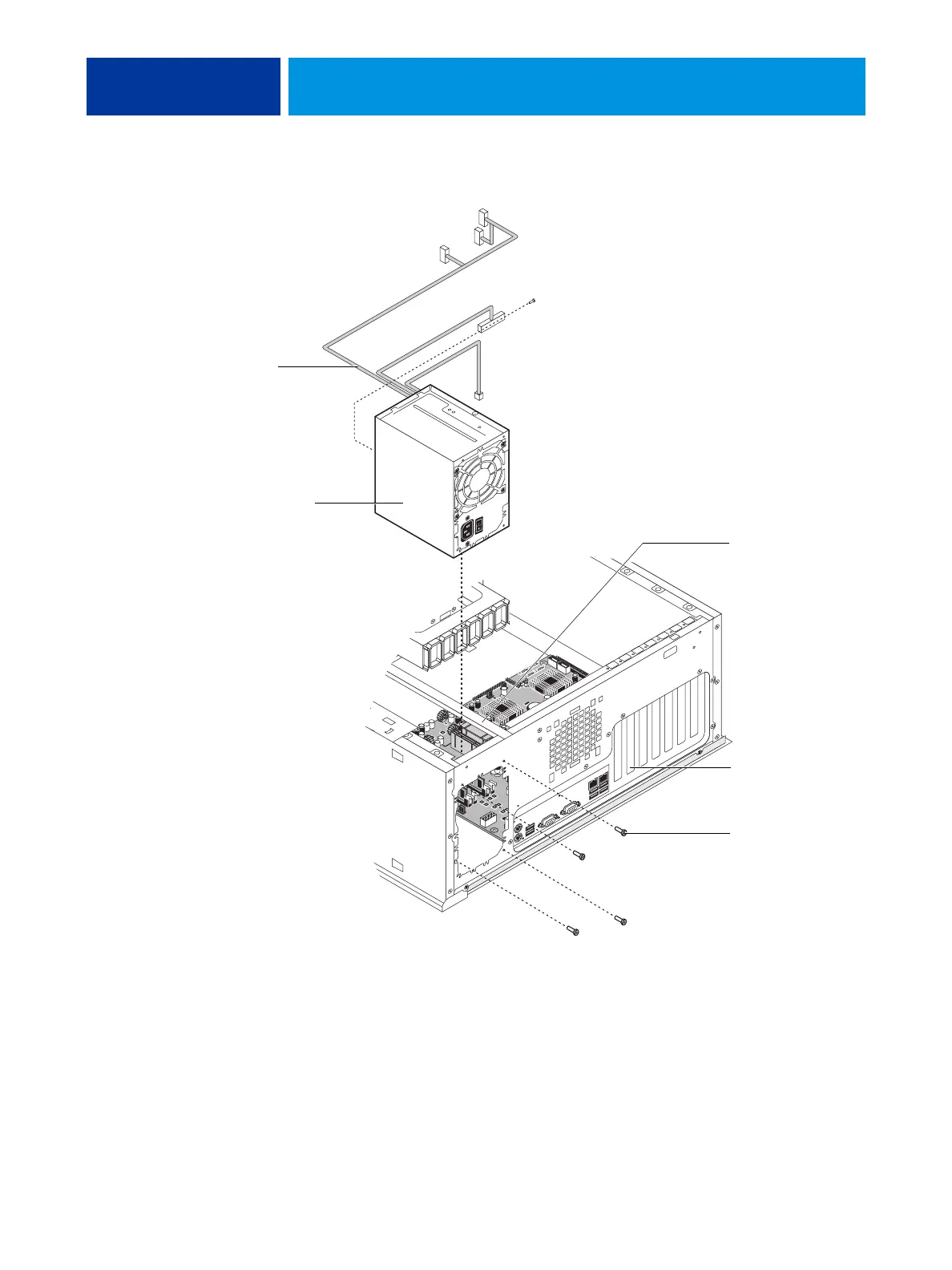

FIGURE 32: Removing/replacing the power supply
Screw
(1 of 5)
Power supply
Back panel
Power supply cables
Chassis
support beam
