SERVICE PROCEDURES 58
User Interface Board assembly
The User Interface Board (UIB) provides the interface between the imagePRESS Server and
the user. The front of the UIB contains circuitry for the following:
• Activity lights (amber, green, and red LEDs)
•Display window (LCD)
• Four line selection buttons
• Up and Down buttons
• Menu button
•Jewel lights
The UIB cable is routed from a connector on the back of the User Interface Board to
connector J38 on the motherboard (see Figure 22 on page 62).

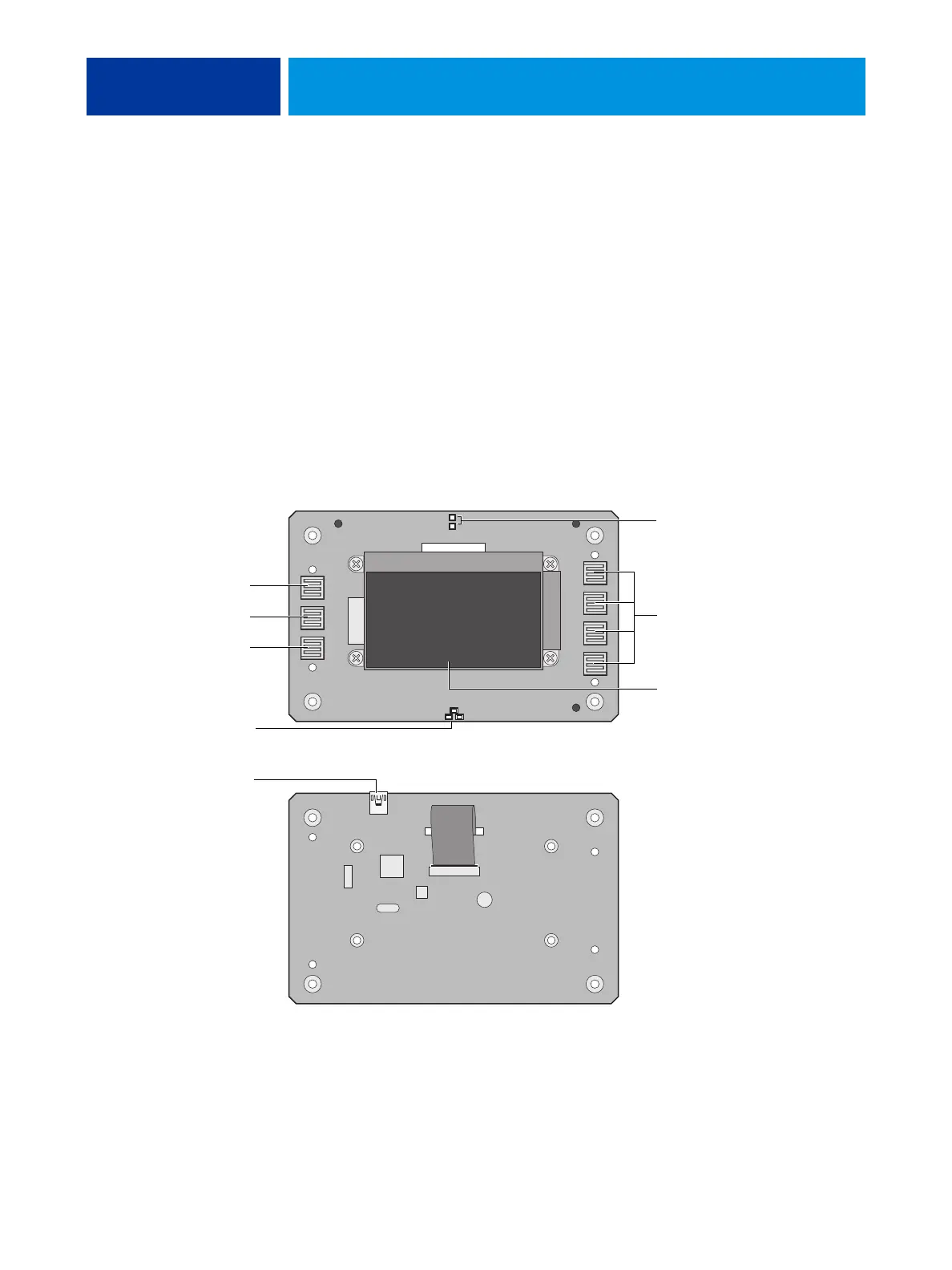

FIGURE 19: Diagram of the User Interface Board (front and back)
Back
Front
Line selection
button pads
UIB cable connector J38
Activity lights
(LEDs)
Display window
Up button pad
Menu button pad
Down button pad
Jewel lights
