SERVICE PROCEDURES 56
Removing and replacing boards
This section includes procedures for removing and replacing the following boards:
• Copier interface board
• User Interface Board
• Motherboard
The imagePRESS Server is shipped from the factory with a standard board configuration, as
shown in Figure 12 on page 46. If optional components have been installed, see the
documentation that accompanies the particular option kit.
Copier interface board
The copier interface board provides the print and scan interface between the
imagePRESS Server and the copier. It is installed in motherboard connector J12. The copier
interface board processes the image data and sends it to the copier through the copier interface
cable available on the imagePRESS Server back panel.

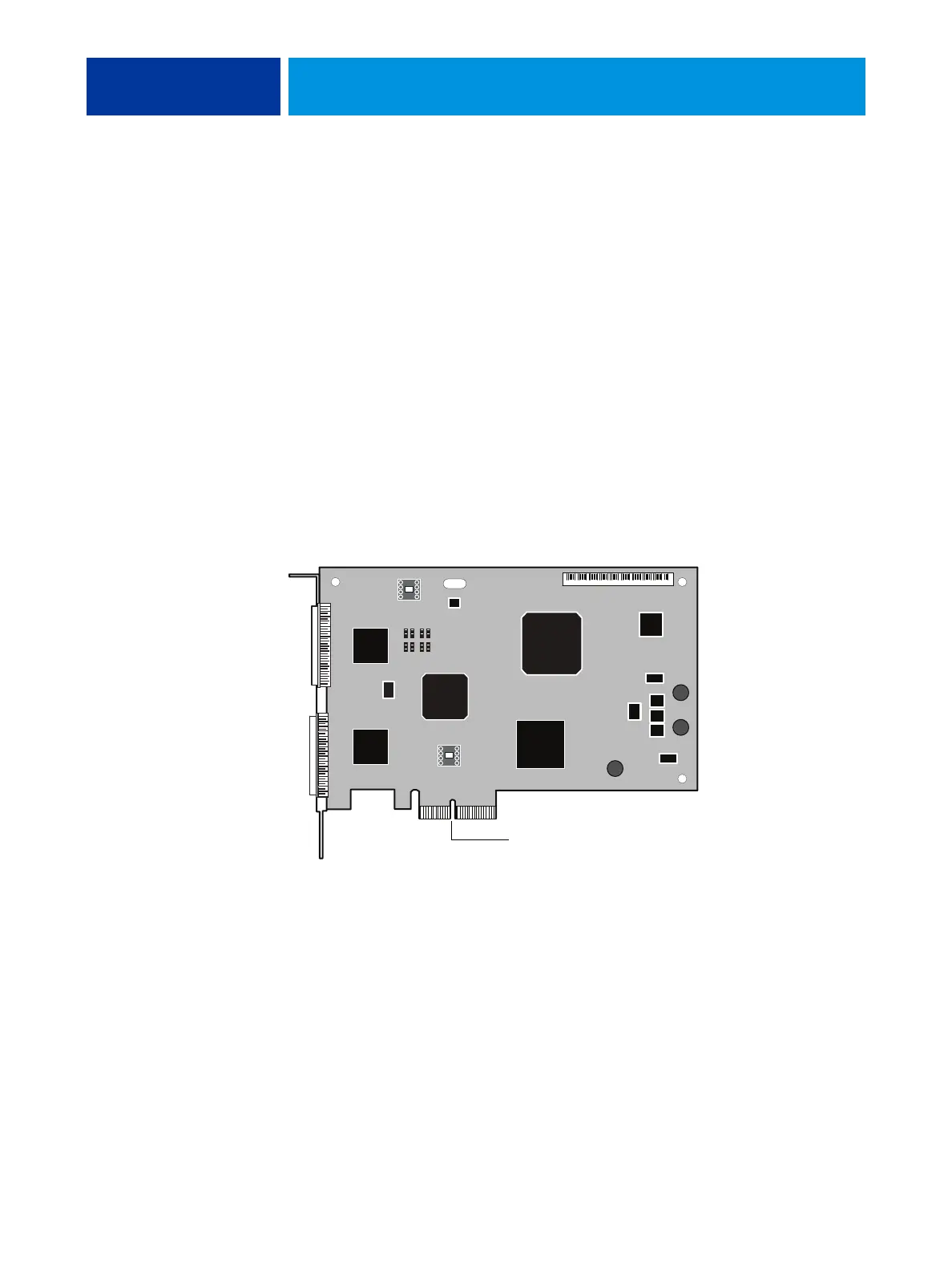

FIGURE 18: Diagram of the copier interface board
To motherboard connector J12
