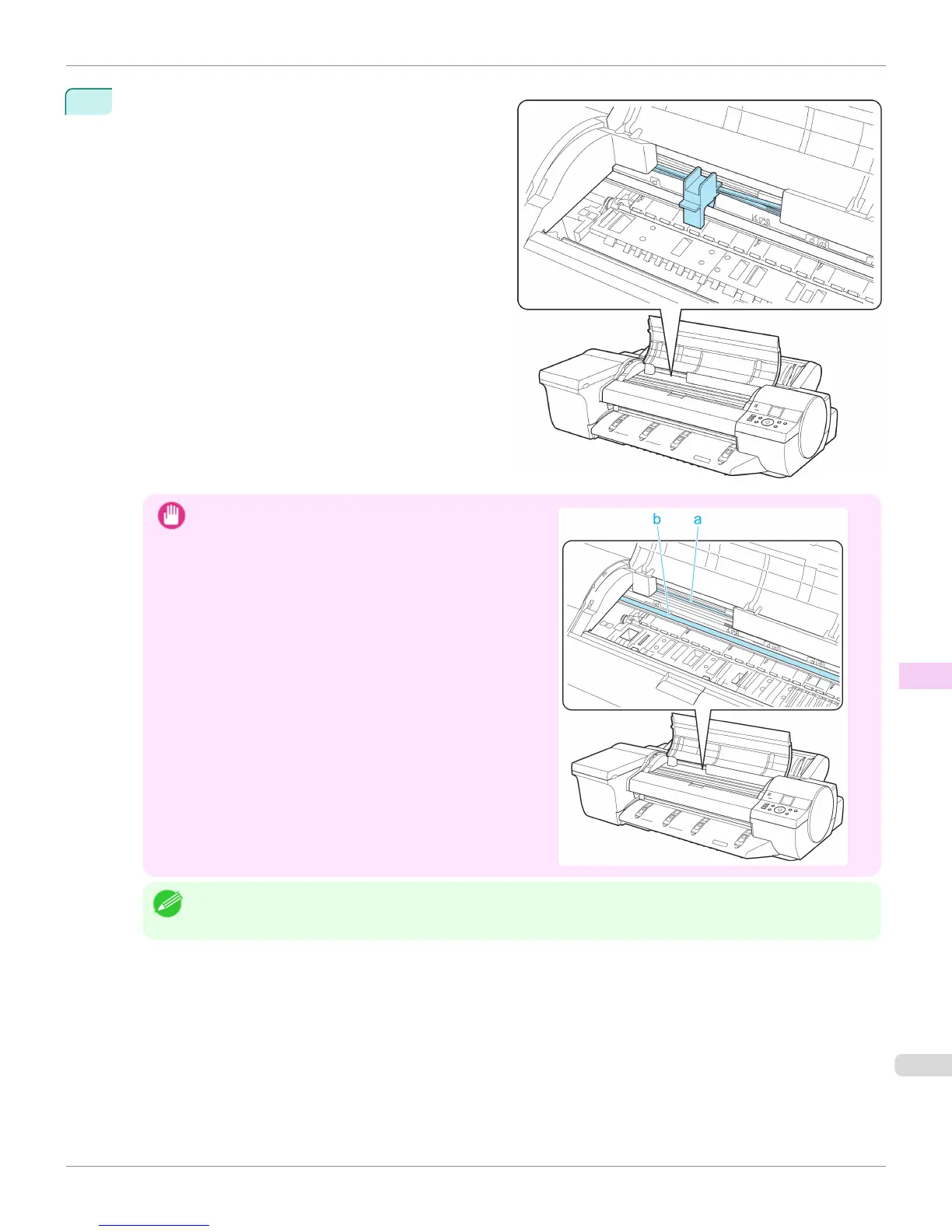

Pinch the Belt together, insert it between the Belt Stop-
per, and affix the Belt Stopper to the Carriage Shaft.
Important
•
Do not touch the Linear Scale (a) or Carriage Shaft (b).
This may stain your hands and damage the printer.
Note
• Here, the Belt Stopper is the one that was removed and stored after initial installation.
