Printing CAD Drawings

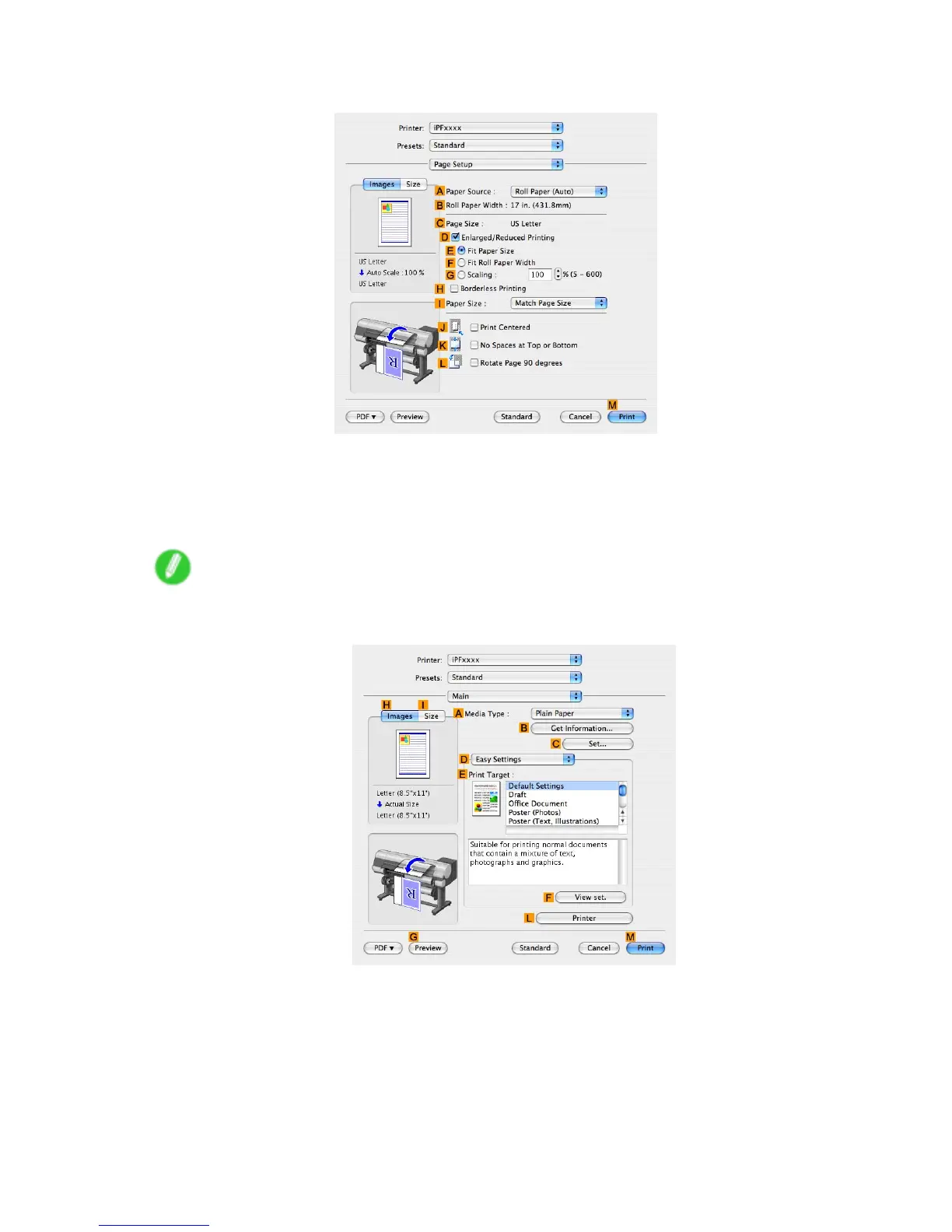

9. Access the Page Setup pane.
10. In the A Paper Source list, click to select the feed method set for the specied paper . In this
case, select from Roll Paper (Auto) , Roll Paper 1 , or Roll Paper 2 .
1 1. Make sure the width of the loaded roll is displayed in the B Roll Paper W idth list-in this case,
ISO A2/A3 (420.0mm) .
Note
• If the width of the roll loaded in the printer is not shown in B Roll Paper W idth , click L Printer
Information on the Main pane to update the printer information.
W orking With V arious Print Jobs 179
