Printer Parts
Printer parts

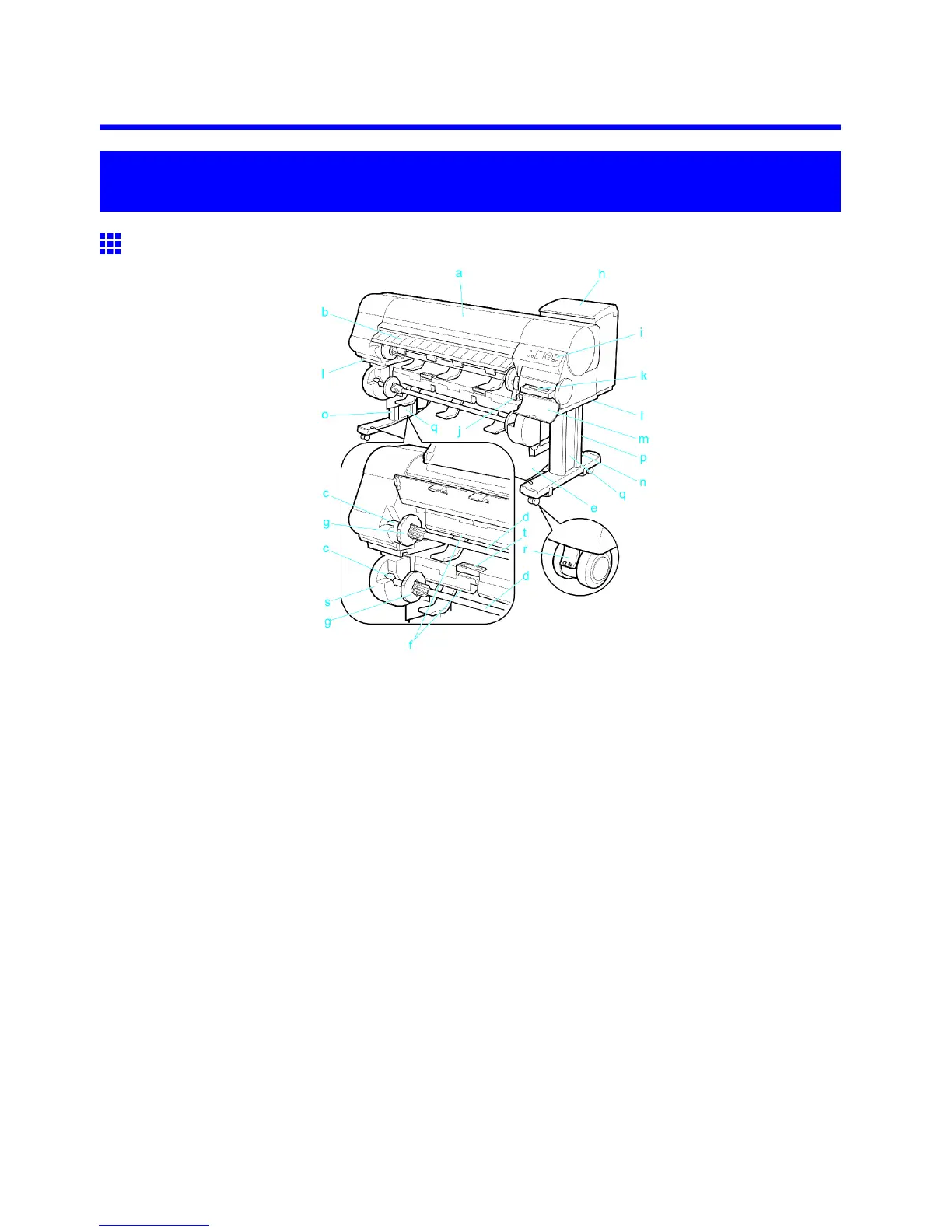

Front
a. T op Cover
Open this cover to install the Printhead , load paper , and remove any jammed paper from inside the
printer as needed. ( → P .16)
b. Ejection Guide
Guides printed documents as they are ejected. Open this guide when loading a roll.
c. Roll Holder Slot
Slide the Roll Holder into this slot.
d. Roll Holder
Load the roll on this holder .
e. Protective Cloth for Sheets
A cloth tray that catches ejected sheets.
f. Paper Feed Slot
When loading a roll, insert the edge of the roll paper here. Y ou can load rolls in two positions, on the
printer side in the Roll 1 (Upper) position and on the roll unit side in the Roll 2 (Lower) position.
g. Holder Stopper
Secure rolls on the Roll Holder with this part.
h. Ink T ank Cover
Open this cover to replace an Ink T ank . ( → P .19)
i. Control Panel
Use this panel to operate the printer and check the printer status. ( → P .21)
Printer Parts 13
